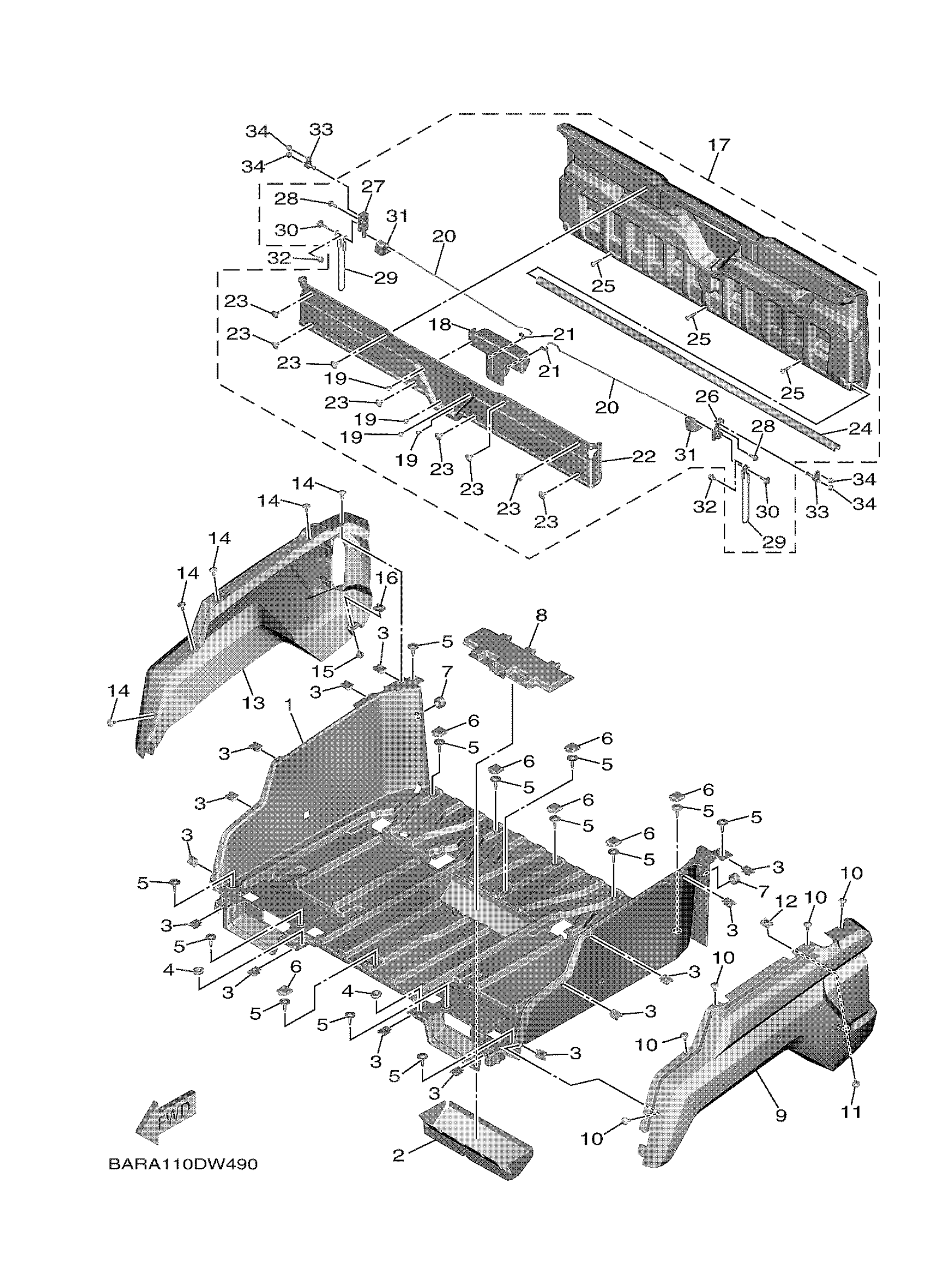

Yamaha YXF85WTAPL (WOLVERINE X4 RSPEC) BARN 2023 CARRIER Diagram
#
1
BOX,TOOL
BG4-F1171-01-00
Unavailable
2
INSU., 1
B4J-H339E-00-00
$37.99
3
NUT, SPRING
90183-062A1-00
$1.96
4
GROMMET(4DN)
90480-01558-00
$4.19
5
BOLT
90109-068A5-00
$7.49
6
CAP
2MB-F143A-00-00
$1.81
7
STOPPER, MAIN STAND
371-27114-00-00
$7.99
8
BELT, BODY HOLDER
BG4-F471S-00-00
$8.49
9
PANEL, REAR FENDER
BG4-K8191-50-00
$123.99
10
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
11
BOLT
90109-06202-00
$7.49
12
NUT, SPRING
90183-062A1-00
$1.96
13
PANEL, REAR FENDER
BG4-K8192-50-00
$123.99
14
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
15
BOLT
90109-06202-00
$7.49
16
NUT, SPRING
90183-062A1-00
$1.96
17
REAR STORAGE LID C
BAR-K810N-10-00
Unavailable
18
HANDLE, LATCH
BG4-F389F-02-00
Unavailable
19
BOLT, BUTTON HEAD
92017-06010-00
Unavailable
20
ROD
BG4-F8478-00-00
Unavailable
21
CLIP, CABLE
BG4-F2805-01-00
Unavailable
22
COVER
BG4-F331G-00-00
Unavailable
23
BOLT,HEX. SOCKET BUTTON
90111-06181-00
Unavailable
24
HINGE 2
1XD-F463F-00-00
Unavailable
25
. SCREW
90149-06846-00
Unavailable
26
LOCK ASSY
BG4-F16A0-00-00
Unavailable
27
LOCK ASSY 2
BG4-F16B0-00-00
Unavailable
28
BOLT, FLANGE DEEP RECESS
95D32-06016-00
Unavailable
29
HOLDER, CABLE
5UG-K7195-10-00
Unavailable
30
BOLT
90109-06171-00
Unavailable
31
DAMPER 2
BG4-F8416-10-00
Unavailable
32
BOLT
90109-06202-00
$7.49
33
BOLT, STUD
BG4-F4441-00-00
Unavailable
34
NUT, U FLANGE
95604-06200-00
Unavailable
