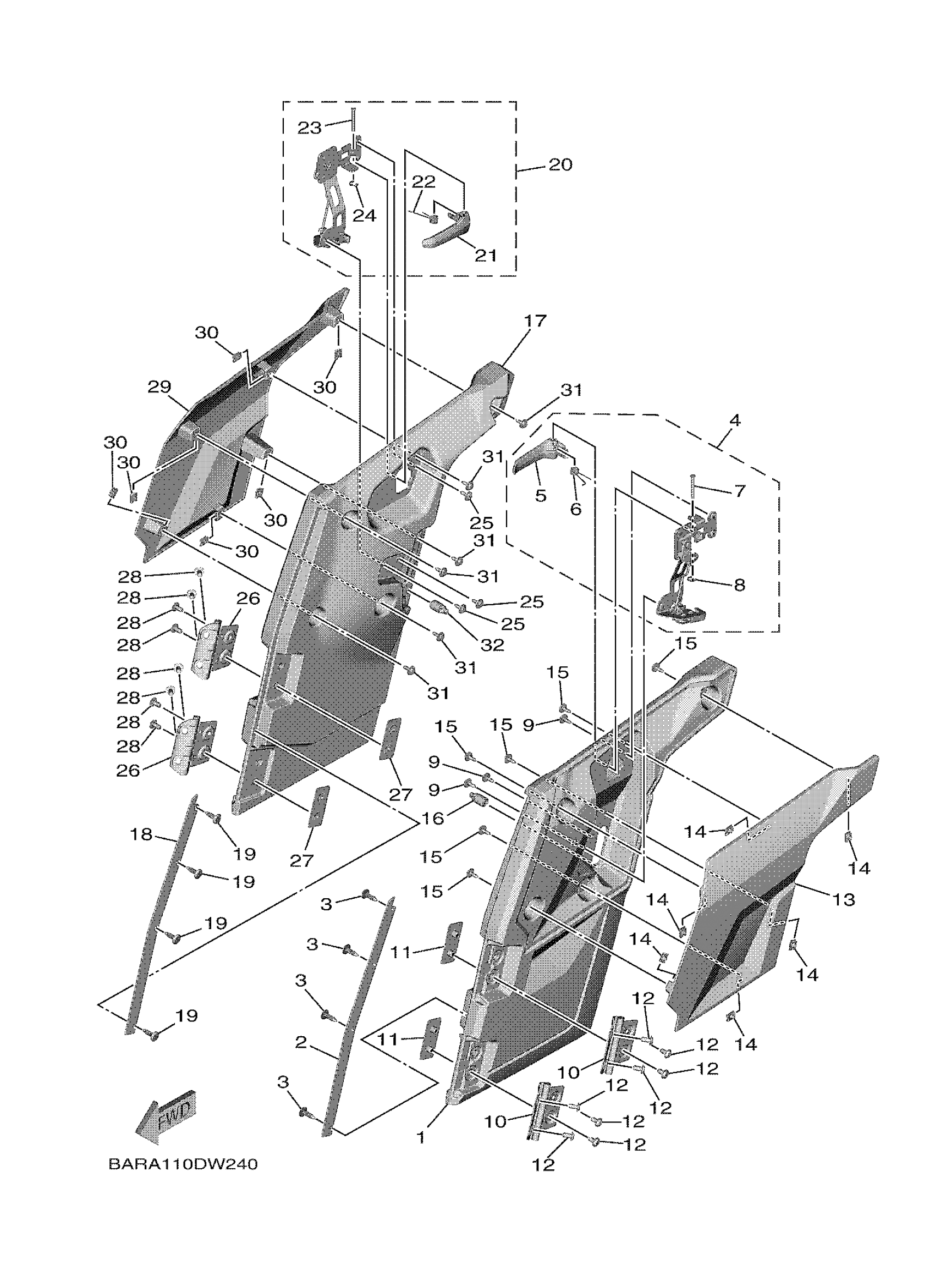

Yamaha YXF85WTANS (WOLVERINE X4 EPS R SPEC) BARJ 2022 SIDE COVER 2 Diagram

#

Description
Price

1

DOOR PANEL

BG4-K8571-11-00

$496.96

2

COVER 3

BAR-F198J-00-00

$224.07

3

RIVET

90269-03001-00

Unavailable

4

BODY, LATCH 1

BG4-K7171-00-00

$200.72

5

LEVER, LATCH 1

2HC-F17N1-00-00

$5.47

6

SPRING

2HC-F1742-00-00

$2.14

7

. PIN

90249-05801-00

$2.12

8

CIRCLIP (EU0)

99080-04600-00

$1.61

9

BOLT, WITH WASHER

90119-06226-00

$2.00

10

HINGE, SEAT 2

BG4-F4779-00-00

$19.06

11

NUT,PLATE

BG4-F1736-00-00

$5.56

12

SCREW

90149-08805-00

$0.84

13

TRIM, SIDE PANEL 3

BG4-K817K-60-00

$46.41

14

NUT, SPRING

90183-062A1-00

$1.75

15

BOLT, WITH WASHER

90119-06226-00

$2.00

16

PAD

2MB-F8378-00-00

Unavailable

17

PNL. , DOOR RR. RH

BG4-K8572-11-00

Unavailable

18

COVER 3

BAR-F198J-00-00

$224.07

19

RIVET

90269-03001-00

Unavailable

20

BODY, LATCH 2

BG4-K7172-00-00

Unavailable

21

LEVER, LATCH 1

2HC-F17N1-00-00

$5.47

22

SPRING

2HC-F1742-00-00

$2.14

23

. PIN

90249-05801-00

$2.12

24

CIRCLIP (EU0)

99080-04600-00

$1.61

25

BOLT, WITH WASHER

90119-06226-00

$2.00

26

HINGE, SEAT 2

BG4-F4779-00-00

$19.06

27

NUT,PLATE

BG4-F1736-00-00

$5.56

28

SCREW

90149-08805-00

$0.84

29

TRIM, SIDE PANEL 4

BG4-K817L-60-00

Unavailable

30

NUT, SPRING

90183-062A1-00

$1.75

31

BOLT, WITH WASHER

90119-06226-00

$2.00

32

PAD

2MB-F8378-00-00

Unavailable
