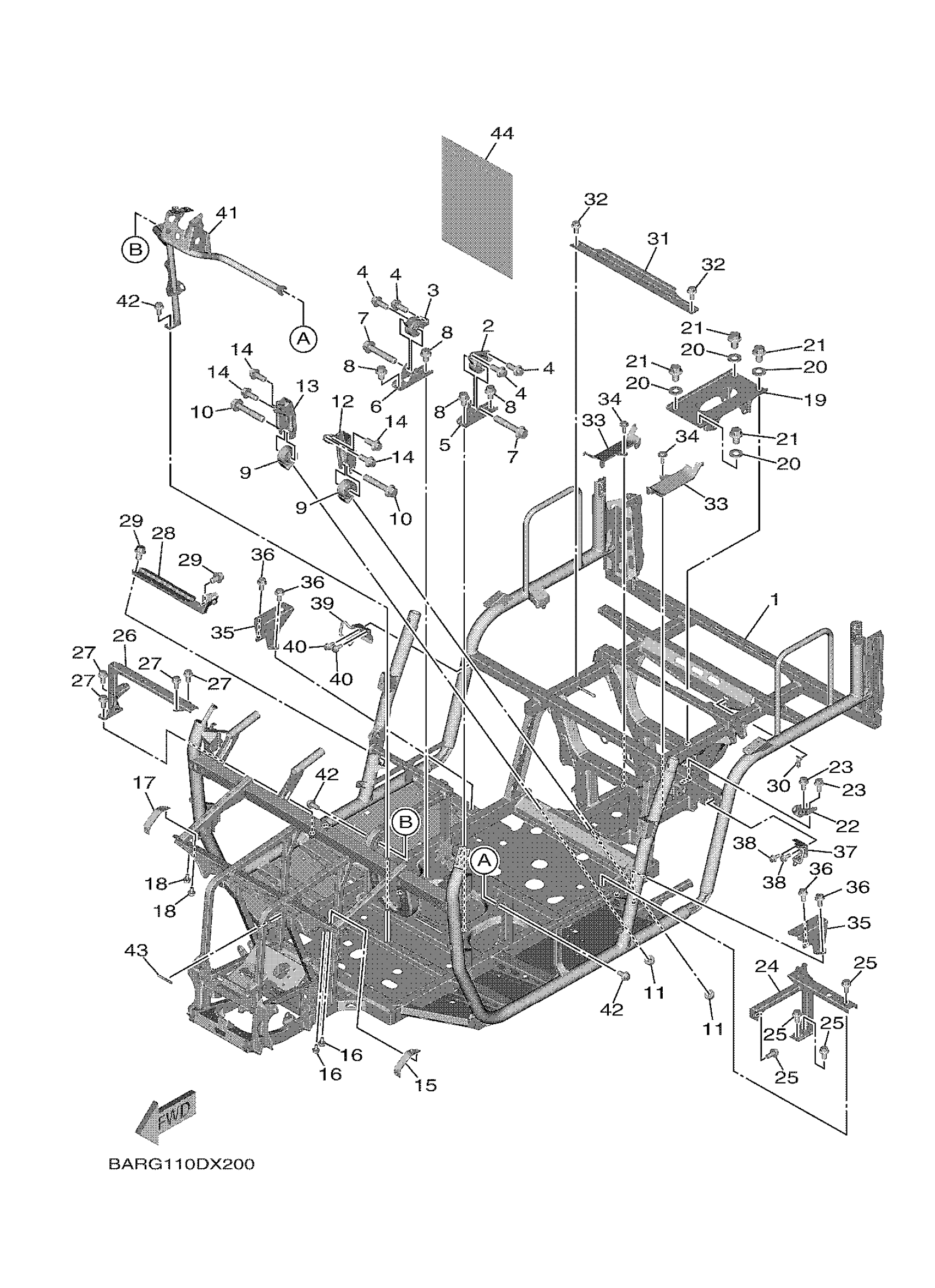

Yamaha YXF85WTANS (WOLVERINE X4 EPS R SPEC) BARJ 2022 FRAME Diagram
#
1
FRAME COMP.
BAR-F1110-20-00
$3,651.99
2
ENGINE BRACKET COMP.
BG4-21410-00-00
Unavailable
3
ENGINE BRACKET COMP. 2
BG4-21420-00-00
Unavailable
4
BOLT, FLANGE DEEP RECESS
95D32-10025-00
Unavailable
5
BRACKET 5
BG4-F161F-00-00
$12.49
6
BRACKET 3
BG4-F161A-00-00
$11.49
7
BOLT, FLANGE DEEP RECESS
95D32-12065-00
Unavailable
8
BOLT, FLANGE DEEP RECESS
95D32-10016-00
$1.06
9
BRACKET, ENGINE 1
B4J-21490-10-00
Unavailable
10
BOLT, FLANGE DEEP RECESS
95D32-12065-00
Unavailable
11
NUT
90179-10033-00
Unavailable
12
SUPPORT, ENGINE
B4J-F1283-03-00
$30.99
13
SUPT., ENGINE 2
B4J-F1284-03-00
$33.99
14
BOLT, FLANGE DEEP RECESS
95D32-10025-00
Unavailable
15
BRACKET 1
BG4-F172K-00-00
$4.56
16
BOLT, FLANGE
95812-06010-00
Unavailable
17
BRACKET 1
BG4-F172K-00-00
$4.56
18
BOLT, FLANGE
95812-06010-00
Unavailable
19
STAY, SUPPORT 1
BG4-F831T-00-00
Unavailable
20
WASHER, PLATE
90201-12039-00
Unavailable
21
BOLT, FLANGE
90105-12121-00
Unavailable
22
BRKT., RR. AXLE
BAR-F1981-00-00
Unavailable
23
BOLT, FLANGE
95812-12020-00
Unavailable
24
LUG, SEAT RAIL LH.
BG4-F1143-10-00
Unavailable
25
BOLT, FLANGE
90105-08867-00
Unavailable
26
MEMBER, SEAT SUPPO
BG4-F255G-01-00
Unavailable
27
BOLT, FLANGE
90105-08867-00
Unavailable
28
BRACKET, LOCK 2
BG4-F287M-00-00
Unavailable
29
BOLT, FLANGE
95817-10020-00
Unavailable
30
STAY,MUFFLER 2
BG4-F1446-11-00
Unavailable
31
PROTECTOR 1
BG4-F834V-00-00
Unavailable
32
BOLT, FLANGE
90105-08867-00
Unavailable
33
COVER 3
2MB-F198J-00-00
Unavailable
34
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
35
BRACKET, FOOTREST
BG4-F144H-00-00
Unavailable
36
BOLT, FLANGE
90105-08867-00
Unavailable
37
HOOK, SIDE COVER 3
BG4-F1333-00-00
Unavailable
38
BOLT, FLANGE DEEP RECESS
95D32-06014-00
Unavailable
39
HOOK, SIDE COVER 4
BG4-F1334-00-00
Unavailable
40
BOLT, FLANGE DEEP RECESS
95D32-06014-00
Unavailable
41
REINFORCEMENT, FRAME 1
BG4-F1986-01-00
Unavailable
42
BOLT, FLANGE
90105-08867-00
Unavailable
43
MOLD, FUEL TANK
31A-24188-01-00
Unavailable
44
POUCH
1P0-F8186-01-00
Unavailable
