- YXF85WTANS (WOLVERINE X4 EPS R SPEC) BARJ 2022
DRIVE SHAFT

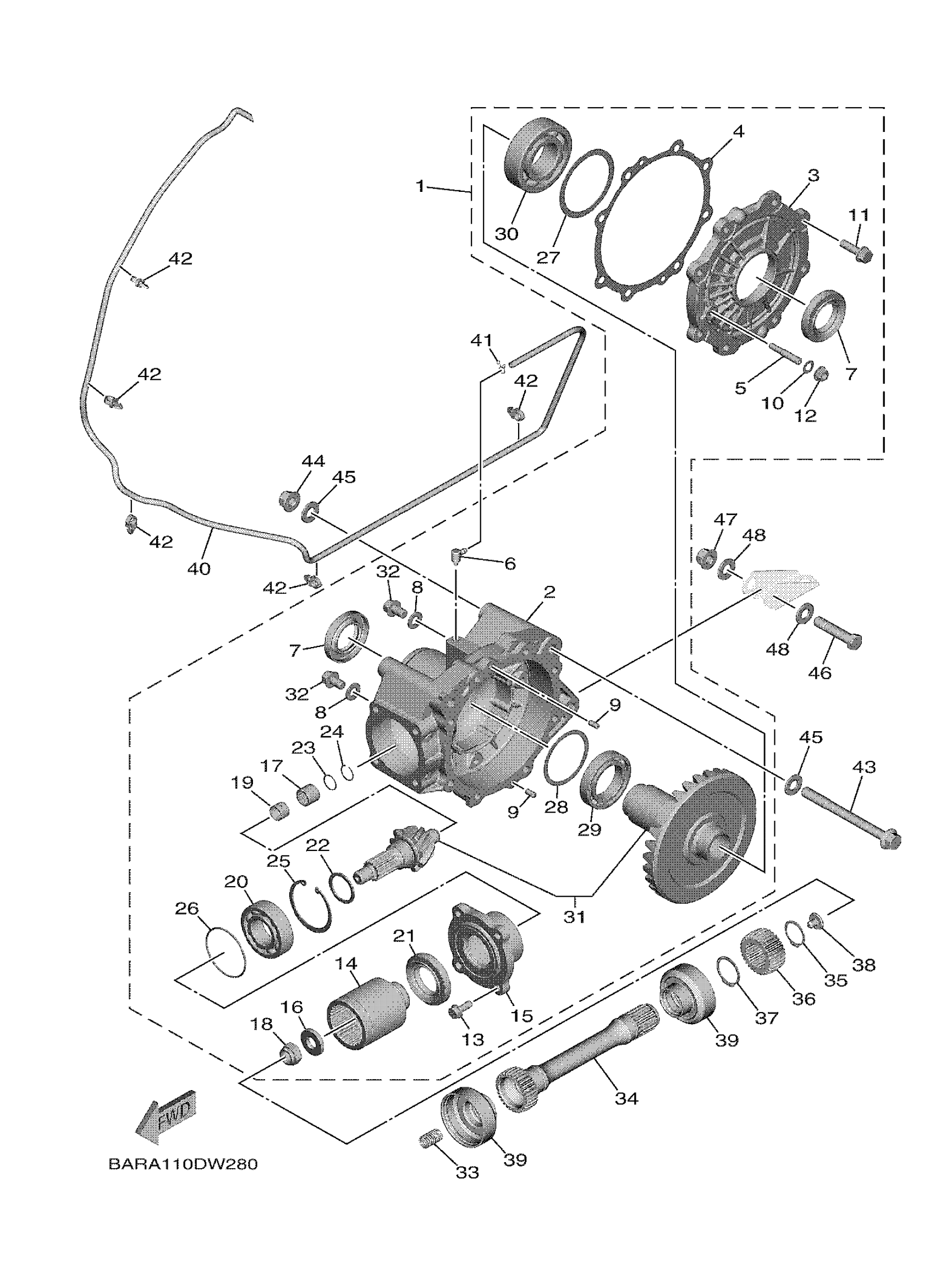

Yamaha YXF85WTANS (WOLVERINE X4 EPS R SPEC) BARJ 2022 DRIVE SHAFT Diagram
#
1
RR AXL GR CASE ASY
BG4-G6101-01-00
$713.99
2
HOUSING, DRIVE SHA
BG4-G6151-00-00
$210.99
3
HOUSING, BEARING
1XD-G6152-00-00
$108.99
4
GSKT., CASE
1XD-G631A-00-00
$13.49
5
. STOPPER, RING GEAR
1CT-G6156-00-00
Unavailable
6
. BREATHER
1CT-E5371-00-00
Unavailable
7
OIL SEAL
1XD-E511B-00-00
$8.49
8
GASKET
1CT-E1195-00-00
$6.99
9
ROLLER
1CT-E3362-00-00
$3.66
10
GASKET
1CT-G6819-00-00
$3.59
11
. BOLT
2HC-E2157-00-00
Unavailable
12
. NUT, ADJUSTING
1CT-E3275-00-00
Unavailable
13
. BOLT, LOCK PLATE
1XD-G2478-00-00
Unavailable
14
COUPLING
BG4-G6126-00-00
$189.99
15
COVER
BG4-G2134-00-00
$84.99
16
WASHER 1
1CT-E1557-00-00
Unavailable
17
BEARING 1
1XD-E1428-00-00
Unavailable
18
NUT, LOCK
1CT-E6377-00-00
Unavailable
19
CLIP
1XD-G5319-00-00
Unavailable
20
BEARING
93306-30574-00
Unavailable
21
OIL SEAL
1XD-E511B-00-00
$8.49
22
WHEEL, SPROCKET 1
1XD-G7531-00-00
Unavailable
23
WASHER,LOCK
2HC-F2149-00-00
Unavailable
24
RING,RETAINER
2HC-F5841-00-00
Unavailable
25
CLIP
1XD-E1486-00-00
Unavailable
26
OIL RING, PISTON
1XD-E1614-00-00
Unavailable
27
SHIM
1XD-G5567-00-00
Unavailable
28
SHIM
1XD-G5577-00-00
Unavailable
29
BEARING
1XD-E7051-00-00
Unavailable
30
BEARING 2
1XD-E1429-00-00
Unavailable
31
RING GEAR SET
BG4-G61A0-01-00
Unavailable
32
BOLT
1XD-E2228-00-00
Unavailable
33
SPRING, COMPRESSION (400)
90501-20361-00
Unavailable
34
SHAFT, DRIVE
BG4-G6172-00-00
Unavailable
35
CIRCLIP(8CJ)
93410-27080-00
Unavailable
36
COUPLING
BG4-46126-00-00
Unavailable
37
CIRCLIP(3VD)
93440-31172-00
Unavailable
38
DAMPER
5KM-46559-00-00
Unavailable
39
SEAL 2
BG4-46137-00-00
Unavailable
40
HOSE (L1340)
90445-07051-00
Unavailable
41
CLIP (1J7)
90467-07029-00
Unavailable
42
CLAMP
90464-12830-00
Unavailable
43
BOLT, FLANGE
95812-12130-00
Unavailable
44
NUT, SELF-LOCKING
90185-12002-00
Unavailable
45
WASHER, PLATE
90201-12039-00
Unavailable
46
BOLT
90101-12021-00
Unavailable
47
NUT, SELF-LOCKING
90185-12002-00
Unavailable
48
WASHER, PLATE
90201-12039-00
Unavailable
