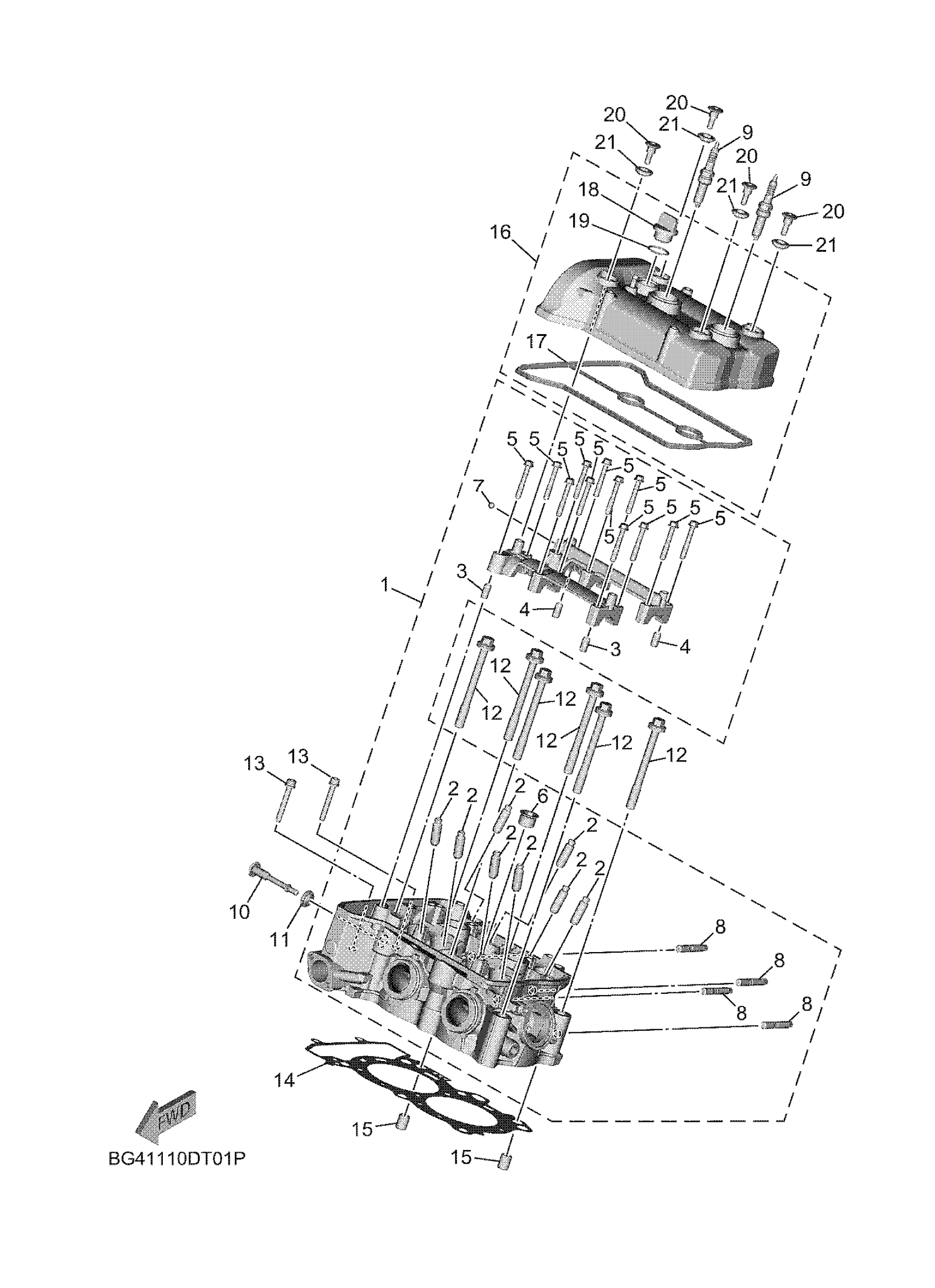

Yamaha YXF85WTANS (WOLVERINE X4 EPS R SPEC) BARJ 2022 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

B4D-E1101-09-00

$411.41

2

GUIDE, VALVE 1

4D9-11133-10-00

$71.72

3

PIN, DOWEL(3XW)

91808-16023-00

$5.26

4

PIN, DOWEL(3XW)

91808-16023-00

$5.26

5

BOLT, WASHER BASED

90105-06027-00

$5.96

6

PLUG, STRAIGHT SCREW

90340-18002-00

$8.69

7

BALL

93501-04011-00

$5.84

8

BOLT, STUD

90116-08087-00

$7.21

9

PLUG, SPARK (NGK LMAR8A-9)

LMA-R8A9S-00-00

$12.25

10

BOLT

90109-06293-00

$11.84

11

RUBBER, MOUNT 1

5VY-1111G-00-00

$10.25

12

BOLT, WITH WASHER

90119-10062-00

$8.56

13

BOLT, HEXAGON SOCKET HEAD

90110-06081-00

$2.56

14

GASKET, CYLINDER HEAD 1

BG4-11181-00-00

$39.51

15

PIN, DOWEL

99530-12016-00

$3.94

16

COVER, CYLINDER HEAD 1

B4D-E1190-00-00

Unavailable

17

GASKET, HEAD COVER 1

BG4-11193-00-00

Unavailable

18

PLUG, OIL

3Y1-15363-10-00

Unavailable

19

O-RING (646)

93210-19123-00

Unavailable

20

BOLT(4BP)

90109-066F0-00

Unavailable

21

RUBBER, MOUNT 1

5VY-1111G-00-00

$10.25
