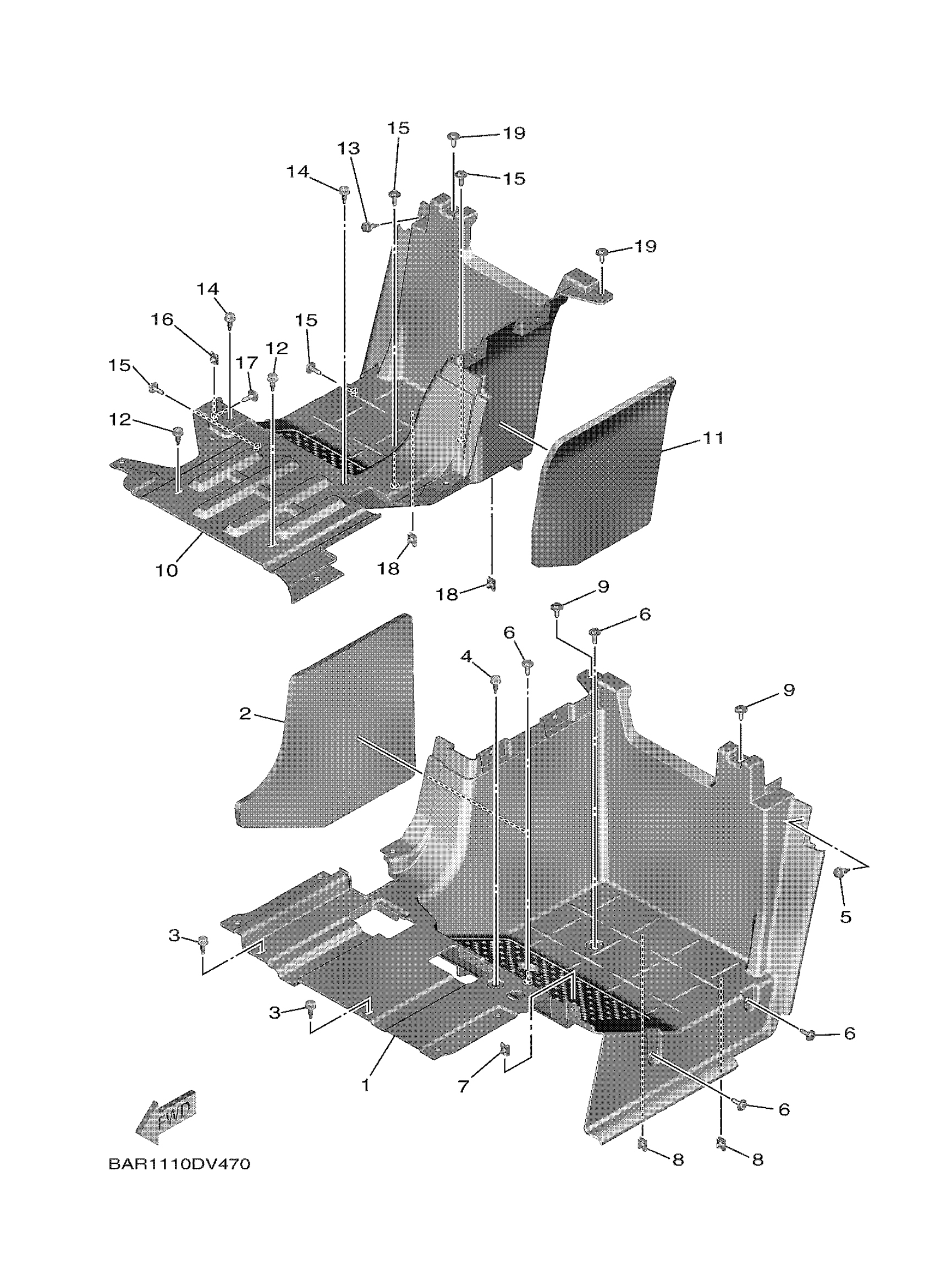

Yamaha YXF85WPZMG (WOLVERINE X4 EPS SE) BARA 2021 STAND FOOTREST 2 Diagram

#

Description
Price

1

FOOTREST,REAR 1

BG4-F7431-02-00

$48.44

2

INSU., 1

BG4-H336L-01-00

$179.18

3

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

4

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

5

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

6

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

7

NUT, SPRING

90183-062A1-00

$1.75

8

NUT, SPRING

90183-062A1-00

$1.75

9

BOLT, WITH WASHER

90119-06226-00

$2.12

10

FOOTREST,REAR 2

BG4-F7441-01-00

$42.39

11

INSU., 2

BG4-H336M-01-00

$29.12

12

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

13

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

14

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

15

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

16

NUT, SPRING

90183-062A1-00

$1.75

17

BOLT, WITH WASHER

90119-06226-00

$2.12

18

NUT, SPRING

90183-062A1-00

$1.75

19

BOLT, WITH WASHER

90119-06226-00

$2.12
