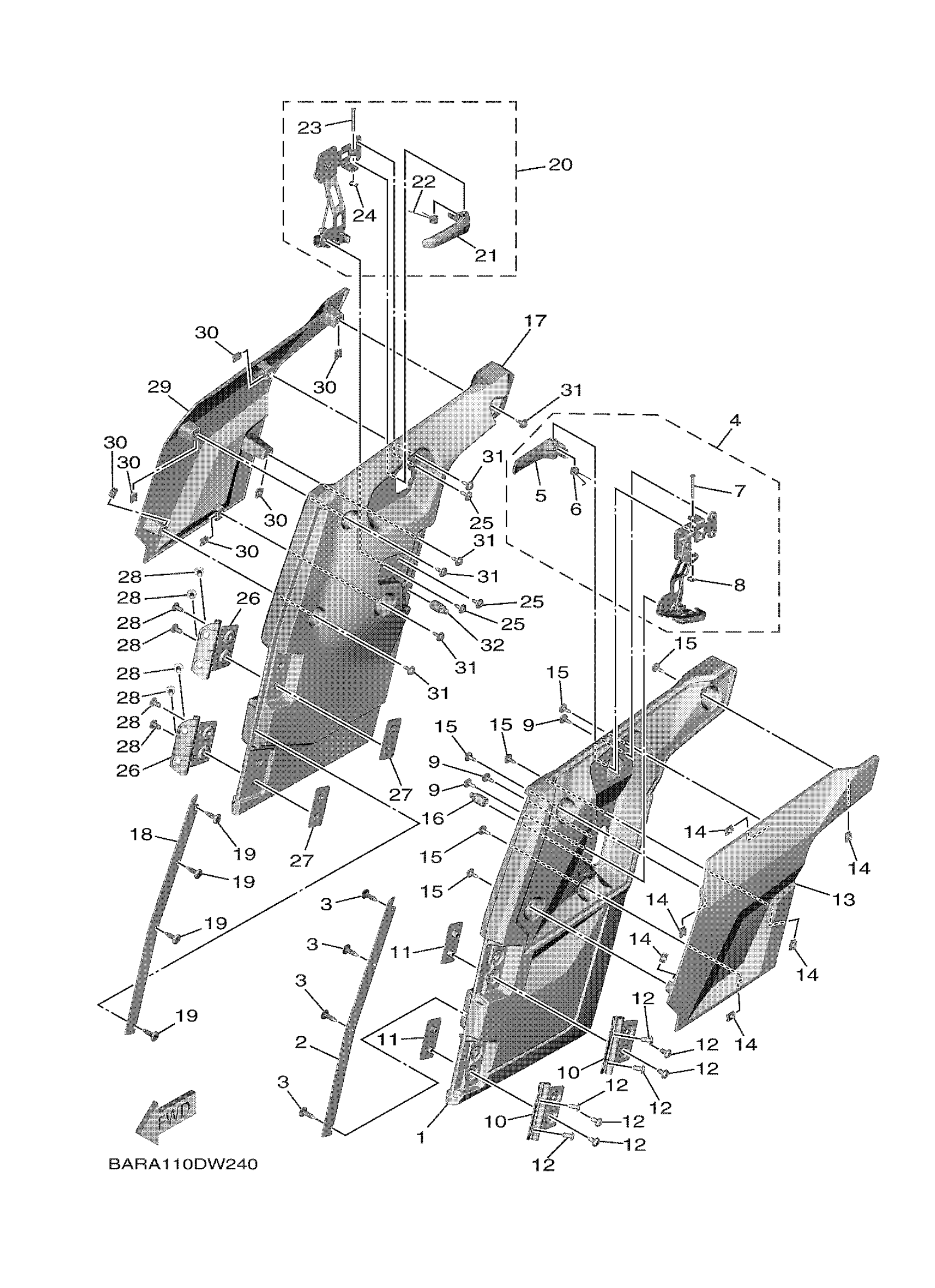

Yamaha YXF85WPZMG (WOLVERINE X4 EPS SE) BARA 2021 SIDE COVER 2 Diagram
#
1
DOOR PANEL
BG4-K8571-11-00
$520.99
2
COVER 3
BAR-F198J-00-00
$258.99
3
RIVET
90269-03001-00
Unavailable
4
BODY, LATCH 1
BG4-K7171-00-00
$211.99
5
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
6
SPRING
2HC-F1742-00-00
$2.96
7
. PIN
90249-05801-00
Unavailable
8
CIRCLIP (EU0)
99080-04600-00
Unavailable
9
BOLT, WITH WASHER
90119-06226-00
$8.49
10
HINGE, SEAT 2
BG4-F4779-00-00
$25.99
11
NUT,PLATE
BG4-F1736-00-00
$7.49
12
SCREW
90149-08805-00
$1.01
13
SIDE PNL. COMP., 3
BG4-K810W-20-00
$137.99
14
NUT, SPRING
90183-062A1-00
$1.96
15
BOLT, WITH WASHER
90119-06226-00
$8.49
16
PAD
2MB-F8378-00-00
Unavailable
17
PNL. , DOOR RR. RH
BG4-K8572-11-00
Unavailable
18
COVER 3
BAR-F198J-00-00
$258.99
19
RIVET
90269-03001-00
Unavailable
20
BODY, LATCH 2
BG4-K7172-00-00
Unavailable
21
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
22
SPRING
2HC-F1742-00-00
$2.96
23
. PIN
90249-05801-00
Unavailable
24
CIRCLIP (EU0)
99080-04600-00
Unavailable
25
BOLT, WITH WASHER
90119-06226-00
$8.49
26
HINGE, SEAT 2
BG4-F4779-00-00
$25.99
27
NUT,PLATE
BG4-F1736-00-00
$7.49
28
SCREW
90149-08805-00
$1.01
29
SIDE PNL. COMP., 4
BG4-K810X-20-00
Unavailable
30
NUT, SPRING
90183-062A1-00
$1.96
31
BOLT, WITH WASHER
90119-06226-00
$8.49
32
PAD
2MB-F8378-00-00
Unavailable
