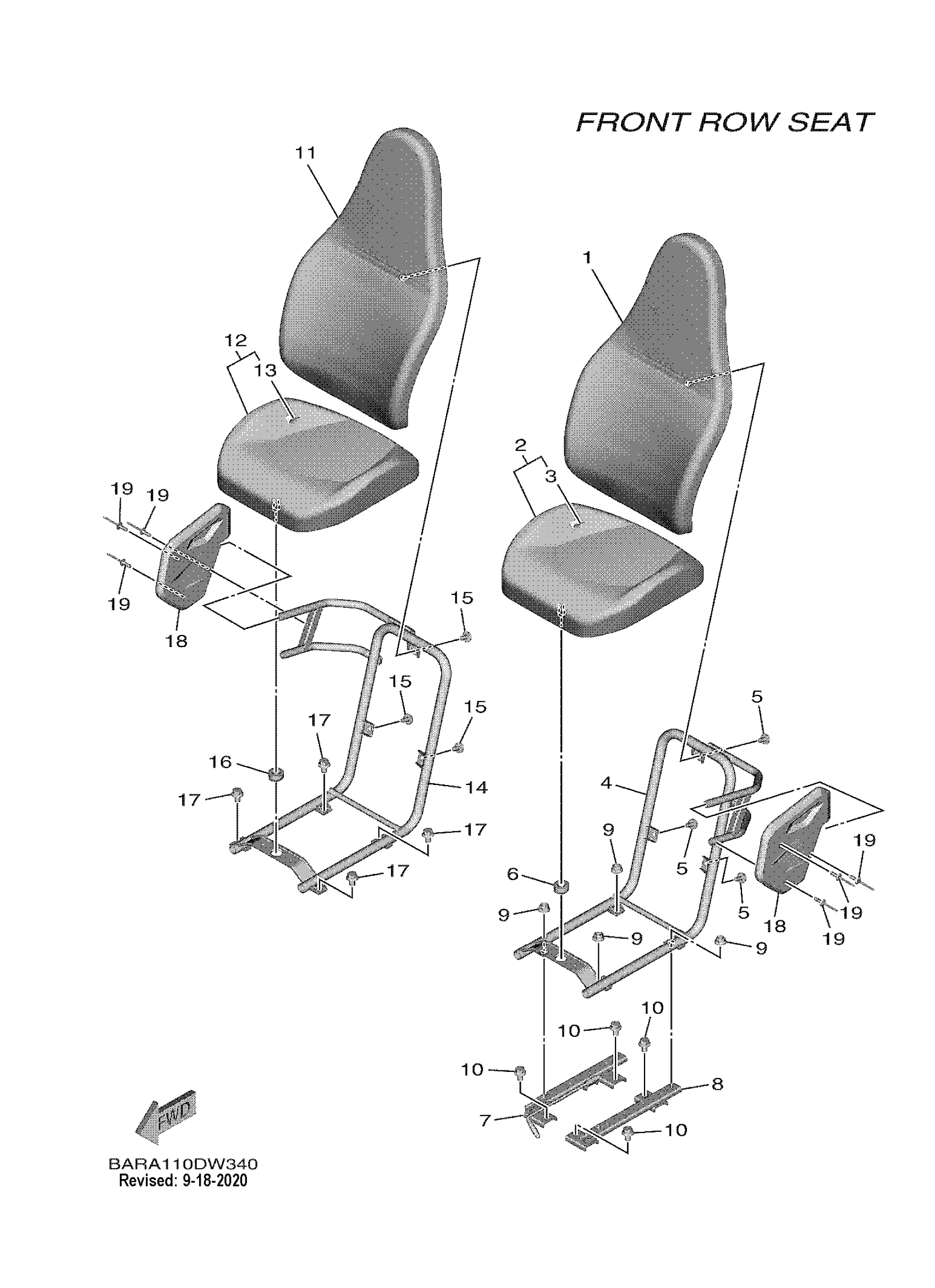

Yamaha YXF85WPZMG (WOLVERINE X4 EPS SE) BARA 2021 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

BAR-F4790-21-00

$558.99

2

SEAT ASSY 2

BAR-K8420-20-00

$552.20

3

COVER, SEAT BACK

BAR-F4791-20-00

$239.73

4

FRAME, SEAT 1

B4J-F473C-02-00

$126.74

5

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

6

GROMMET

1XD-F4742-00-00

$2.96

7

ADJUSTER ASSY

B4J-F7270-01-00

$45.32

8

ADJUSTER ASSY

B4J-F7260-01-00

Unavailable

9

NUT, SELF-LOCKING

95602-08200-00

$2.73

10

BOLT, FLANGE

95817-08012-00

$3.71

11

SEAT BACK ASSY

BAR-F4790-21-00

$558.99

12

SEAT ASSY 2

BAR-K8420-20-00

$552.20

13

COVER, SEAT BACK

BAR-F4791-20-00

$239.73

14

FRAME, SEAT 2

B4J-F473D-02-00

$135.58

15

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

16

GROMMET

1XD-F4742-00-00

$2.96

17

BOLT, FLANGE

95817-08012-00

$3.71

18

COVER

B4J-F117F-00-00

Unavailable

19

RIVET, BLIND(J50)

90267-49152-00

Unavailable
