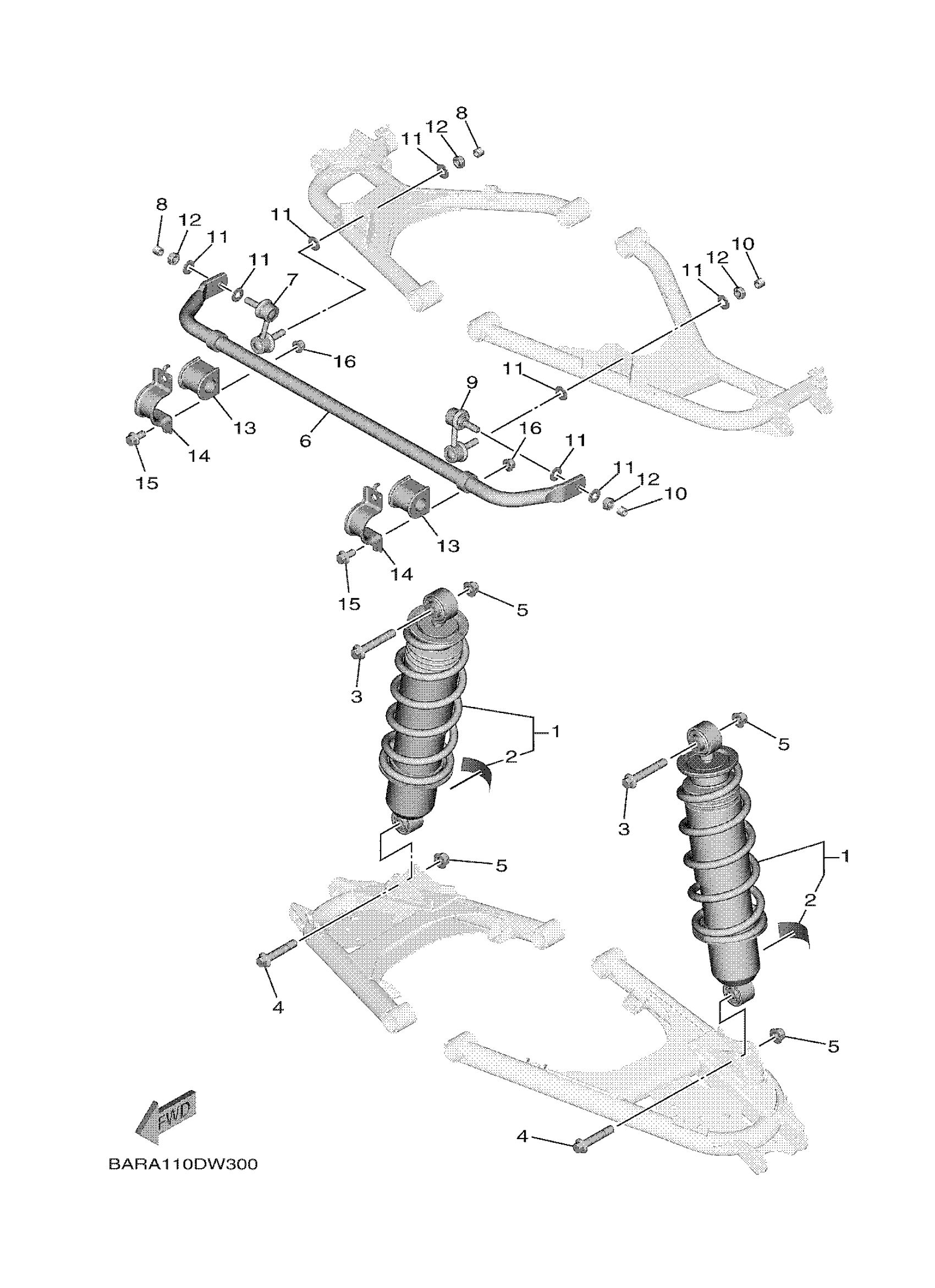

Yamaha YXF85WPZMG (WOLVERINE X4 EPS SE) BARA 2021 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

BG4-F2200-70-00

Unavailable

2

LABEL, WARNING

B4J-F2259-00-00

$1.38

3

BOLT, FLANGE

90105-12056-00

$8.84

4

BOLT, FLANGE

90105-12055-00

$9.99

5

NUT, SELF-LOCKING

90185-12009-00

$6.75

6

BAR, STABILIZER

BG4-G7491-02-00

$101.44

7

JOINT, STABILIZER 1

16B-2385L-10-00

$59.51

8

HOSE (L11)

90445-13029-00

Unavailable

9

JOINT, STABILIZER 2

16B-2385M-10-00

$60.41

10

HOSE (L11)

90445-13029-00

Unavailable

11

WASHER, PLATE

90201-10035-00

$3.33

12

NUT, SELF-LOCKING

90185-10012-00

$2.78

13

BUSH, STABILIZER F

BAR-F386G-01-00

Unavailable

14

COVER, STABILIZER

1XD-F386H-00-00

$6.79

15

. BOLT, FLANGE

95812-10025-00

$2.41

16

NUT, SELF-LOCKING

90185-10011-00

Unavailable
