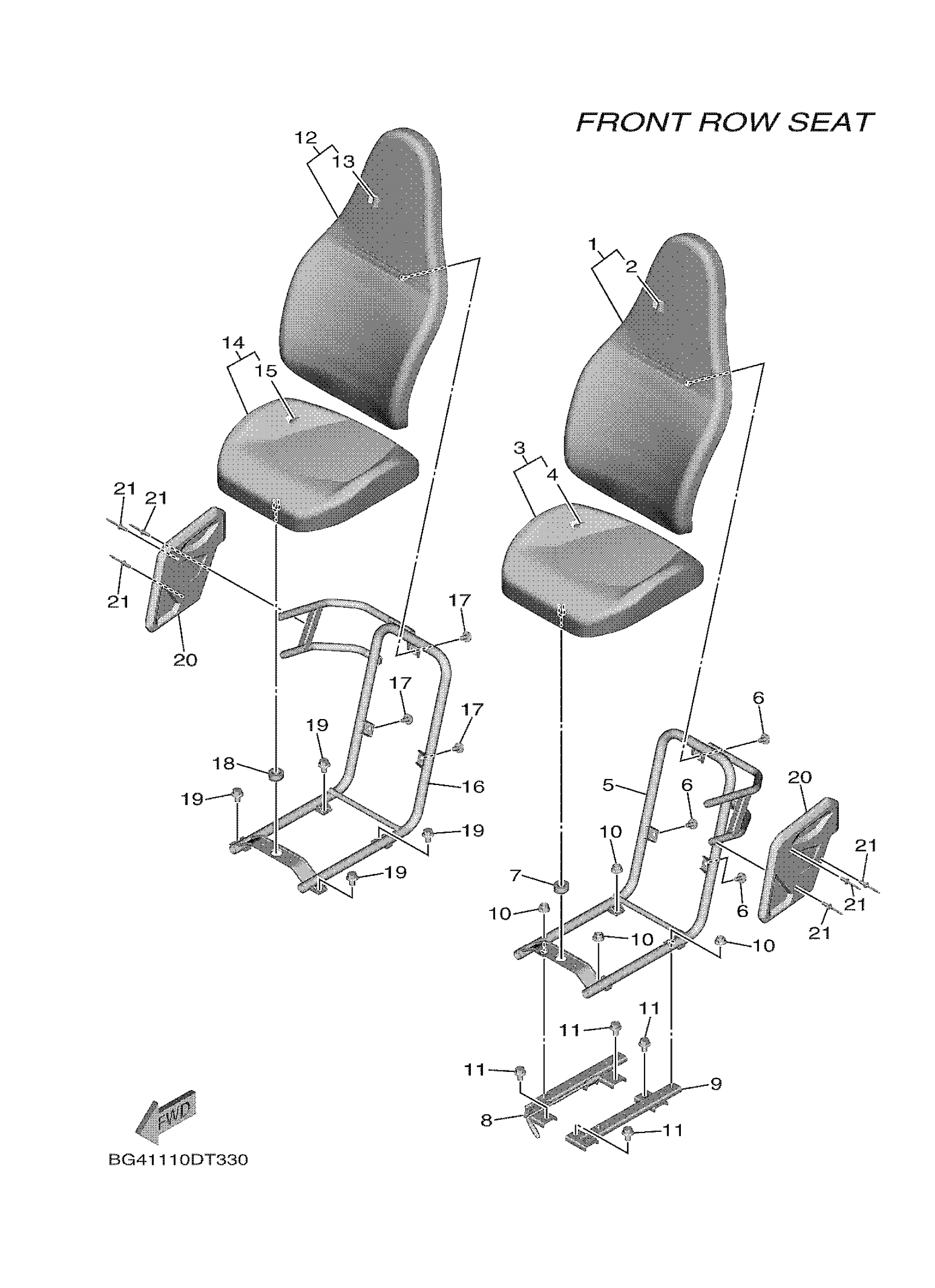

Yamaha YXF85WPXJD (WOLVERINE X4) BG44 2018 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

BG4-F4790-12-00

$184.16

2

COVER,SINGLESEAT

BG4-F4711-11-00

$257.32

3

SEATASSY2

BG4-K8420-11-00

$146.44

4

COVER,SEATBACK

BG4-F4791-11-00

$226.19

5

FRAME, SEAT 1

BG4-F473C-01-00

$95.82

6

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

7

GROMMET

1XD-F4742-00-00

Unavailable

8

ADJUSTER ASSY

BG4-F7270-00-00

$235.44

9

ADJUSTER ASSY

BG4-F7260-00-00

$193.06

10

NUT, SELF-LOCKING

95602-08200-00

$2.65

11

BOLT, FLANGE

95817-08012-00

$3.81

12

SEAT BACK ASSY

BG4-F4790-12-00

$184.16

13

COVER,SINGLESEAT

BG4-F4711-11-00

$257.32

14

SEATASSY2

BG4-K8420-11-00

$146.44

15

COVER,SEATBACK

BG4-F4791-11-00

$226.19

16

FRAME SEAT 2

BG4-F473D-01-00

Unavailable

17

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

18

GROMMET

1XD-F4742-00-00

Unavailable

19

BOLT, FLANGE

95817-08012-00

$3.81

20

COVER

BG4-F117F-00-00

Unavailable

21

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable
