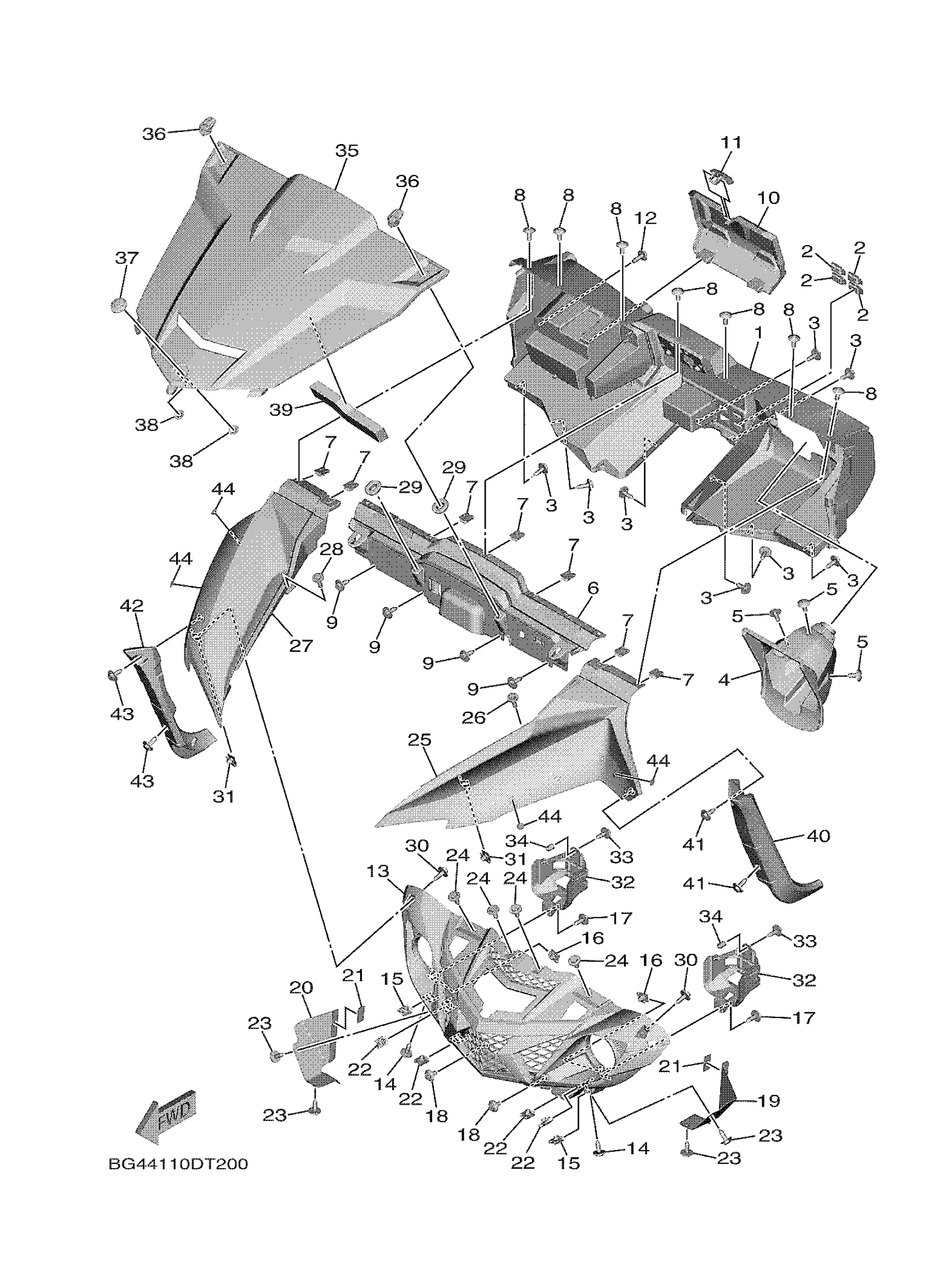

Yamaha YXF85WPXJD (WOLVERINE X4) BG44 2018 FRONT FENDER Diagram

#

Description
Price

1

PANEL, INSTRUMENT

BG4-K7711-00-00

$102.32

2

PLUG, HOLE

BG4-F312G-00-00

$1.51

3

BOLT, WITH WASHER

90119-06226-00

$2.12

4

COVER, STEERING

BG4-F3818-00-00

$16.95

5

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

6

COVER, FRONT

BG4-F2865-00-00

$34.67

7

NUT, SPRING

90183-060A6-00

$3.90

8

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

9

BOLT, WITH WASHER

90119-06226-00

$2.12

10

LID

BG4-F160F-00-00

$11.03

11

LOCK

F2X-U2875-00-00

$2.57

12

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

13

GRILLE, FRONT

BG4-F8309-11-00

$67.85

14

BOLT, WITH WASHER

90119-06226-00

$2.12

15

NUT, SPRING

90183-060A6-00

$3.90

16

NUT, SPRING

90183-060A6-00

$3.90

17

BOLT, WITH WASHER

90119-06226-00

$2.12

18

BOLT

90109-06202-00

Unavailable

19

COVER 1

BG4-E246A-00-00

Unavailable

20

COVER 2

BG4-E246E-00-00

Unavailable

21

DAMPER

5UG-K7588-01-00

Unavailable

22

NUT, SPRING

90183-060A6-00

$3.90

23

BOLT, WITH WASHER

90119-06226-00

$2.12

24

BOLT, WITH WASHER

90119-06226-00

$2.12

25

FENDER, FRONT

BG4-F1511-10-00

Unavailable

26

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

27

FENDER, FRONT 2

BG4-F1556-10-00

Unavailable

28

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

29

GROMMET(4DN)

90480-01558-00

Unavailable

30

BOLT, WITH WASHER

90119-06226-00

$2.12

31

NUT, SPRING

90183-060A6-00

$3.90

32

COVER, HEADLIGHT

2UD-F838E-00-00

Unavailable

33

BOLT, WITH WASHER

90119-06226-00

$2.12

34

HOSE

90445-08029-00

$3.07

35

HOOD 1

BG4-F1982-10-00

Unavailable

36

LEVER, LOCK

1XD-2175K-10-00

Unavailable

37

TUNING FORK MARK

1XD-F175B-01-00

Unavailable

38

NUT, SPRING

90183-06071-00

$0.50

39

DAMPER, PLATE

90520-50004-00

Unavailable

40

EXT,FRONT FENDER 1

BG4-K8185-01-00

Unavailable

41

BOLT, WITH WASHER

90119-06226-00

$2.12

42

EXT,FRONT FENDER 2

BG4-K8186-01-00

Unavailable

43

BOLT, WITH WASHER

90119-06226-00

$2.12

44

PLUG

BG4-F4481-00-00

Unavailable
