Description

Price

1

PLATE

BAR-F7275-02-00

$20.99

2

WINCH

BAS-F845V-00-00

$604.99

3

HOOK

BAS-F8488-02-00

$44.99

4

PIN

BAS-F818A-00-00

$2.17

5

ROLLER

BAS-F178G-03-00

$95.99

6

PIN COTTER

91490-30025-00

$3.99

7

CONTACTOR

BAS-H232W-00-00

$172.99

8

COVER, 7

BAR-F841V-00-00

$7.49

9

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$2.13

10

BOLT, FLANGE DEEP RECESS

95D32-08020-00

$0.60

11

BOLT, FLANGE

95812-10016-00

$9.49

12

SWITCH ASSY

BAS-H259E-02-00

$69.99

13

WIRE, INNER 1

BAR-F633K-02-00

$69.99

14

WIRE, INNER 2

BAR-F633L-03-00

$93.99

15

CLAMP

90464-20010-00

$3.23

16

PROTECTOR

BAS-F3472-00-00

Unavailable

17

COVER, LEAD WIRE

5LP-82119-00-00

Unavailable

18

CLAMP

5B4-F1338-00-00

Unavailable

19

WIRE HARNESS

BAR-H2105-00-00

Unavailable

20

CLAMP

90464-14010-00

Unavailable

21

CLAMP(JN6)

90464-31827-00

Unavailable

22

NUT, FLANGE

95702-06500-00

Unavailable

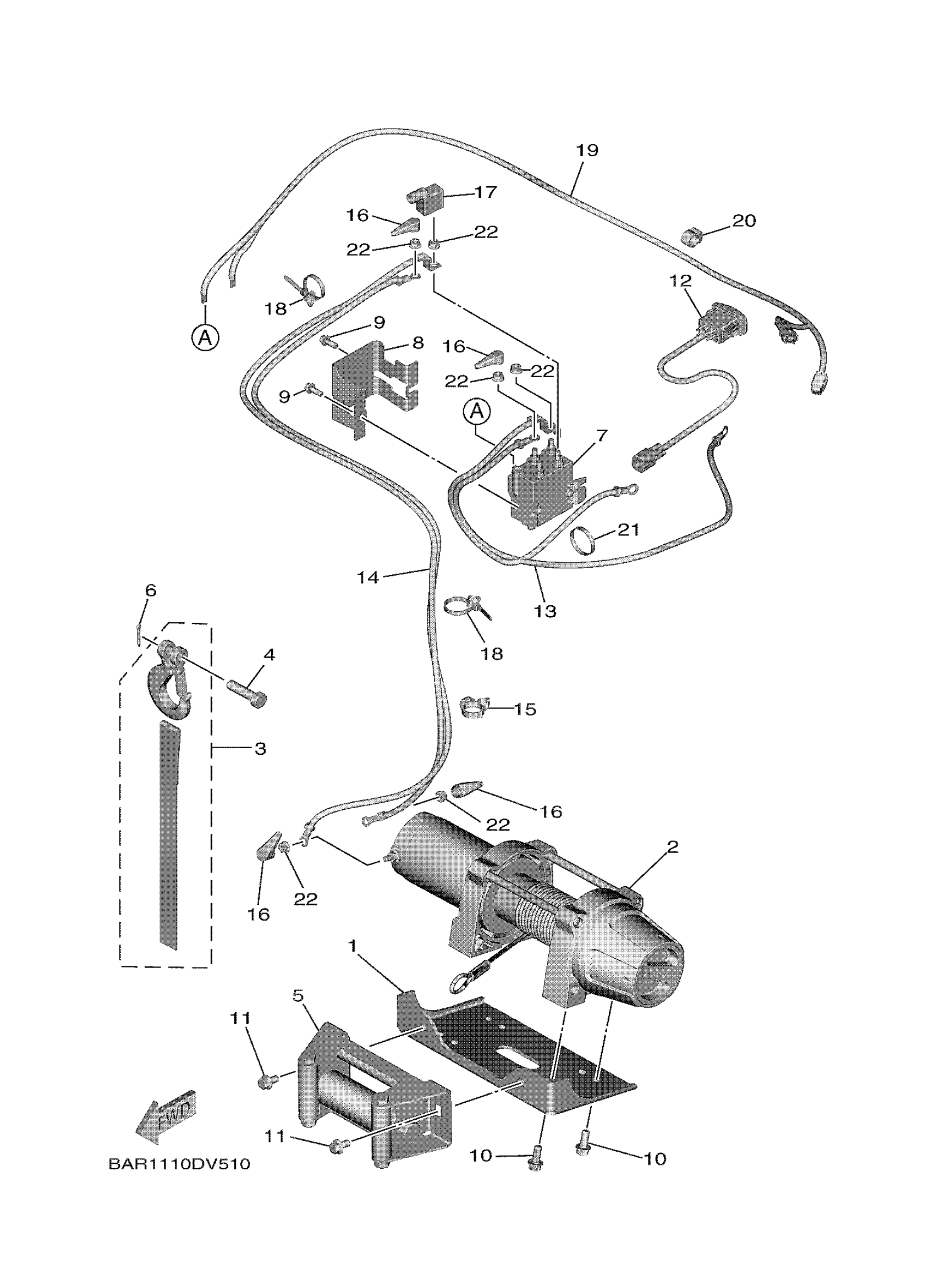

Yamaha YXF85WPSLZ (WOLVERINE X4 XTR) BAR1 2020 WINCH Diagram

PLATE

WINCH

HOOK

PIN

ROLLER

PIN COTTER

CONTACTOR

COVER, 7

BOLT, FLANGE (SELF TAPPING)

BOLT, FLANGE DEEP RECESS

BOLT, FLANGE

SWITCH ASSY

WIRE, INNER 1

WIRE, INNER 2

CLAMP

PROTECTOR

COVER, LEAD WIRE

CLAMP

WIRE HARNESS

CLAMP

CLAMP(JN6)

NUT, FLANGE
