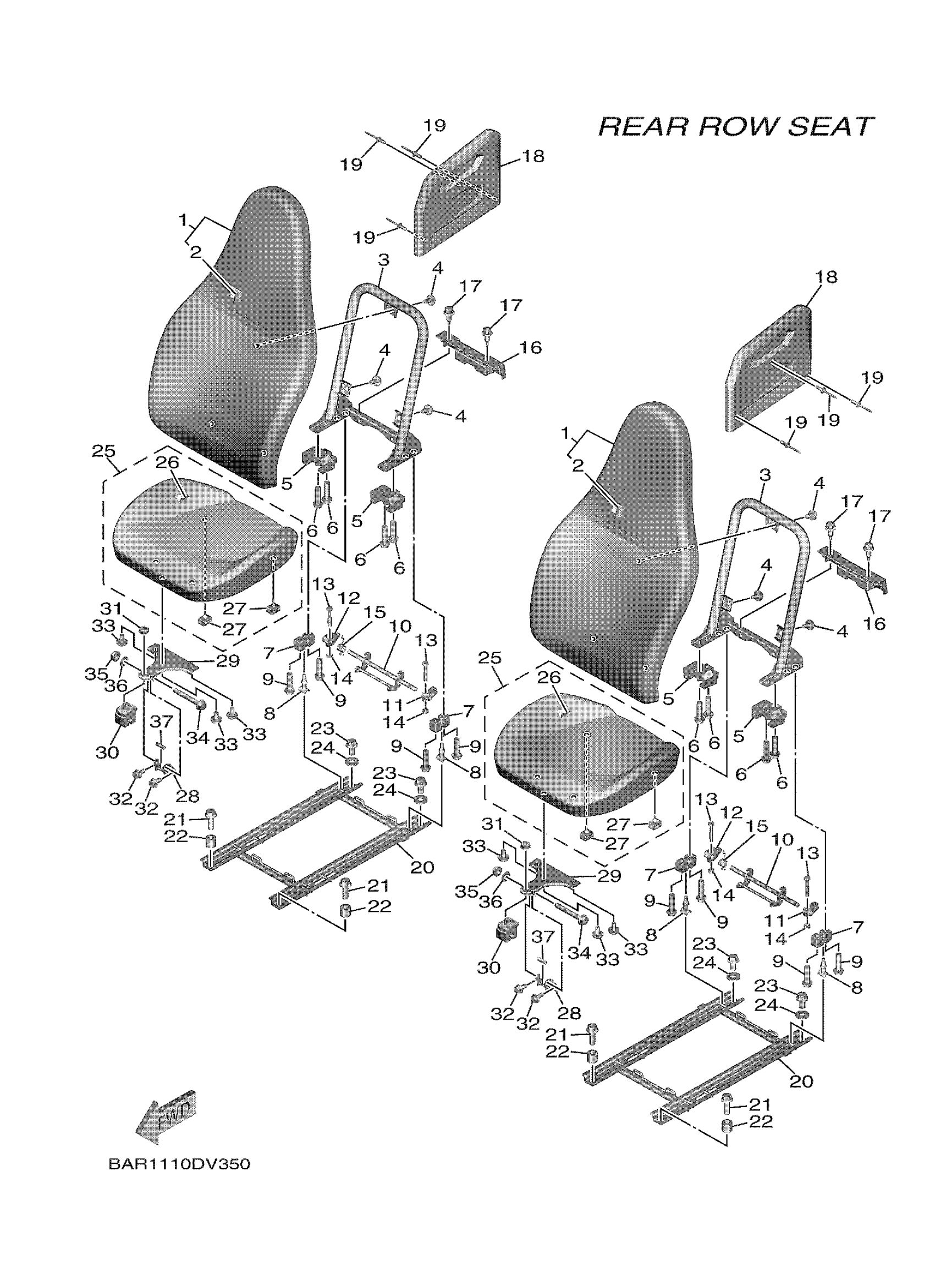

Yamaha YXF85WPSLZ (WOLVERINE X4 XTR) BAR1 2020 SEAT 3 Diagram
#
1
SEAT BACK ASY
BAR-F4790-12-00
Unavailable
2
COVER, SINGLE SEAT
BAR-F4711-11-00
$287.99
3
FRAME, SEAT 3
BG4-F473Y-01-00
$63.99
4
BOLT, SEAT FITTING
2PG-F4739-00-00
$1.59
5
SLIDER
BG4-F386R-01-00
$7.49
6
BOLT, FLANGE
95022-08025-00
$8.49
7
DAMPER, LOCATING 1
BG4-F1778-10-00
$101.99
8
DAMPER,SEAT
BAR-F4723-01-00
$1.16
9
BOLT, FLANGE
95022-08030-00
$3.88
10
LATCH ASY
BG4-K7180-01-00
$23.99
11
CAM, 1
BG4-F2231-00-00
$181.99
12
CAM, 2
BG4-F2232-00-00
$174.99
13
BOLT
97022-05030-00
$1.12
14
NUT, HEXAGON (663)
95380-05600-00
$8.49
15
SEAT, SPRING
BG4-F4424-00-00
$8.49
16
COVER, HANDLE UPPE
BG4-F6143-01-00
Unavailable
17
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
18
COVER,2
BG4-F475X-00-00
Unavailable
19
RIVET, BLIND(EU0,USA)
90267-489U9-00
Unavailable
20
SEAT RAIL ASSY 1
BG4-F110B-00-00
Unavailable
21
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
22
COLLAR (437)
90387-08258-00
Unavailable
23
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
24
WASHER, PLATE
90201-08048-00
Unavailable
25
SEAT ASSY
BAR-F4700-10-00
Unavailable
26
COVER, SEAT
BAR-F4731-10-00
Unavailable
27
DAMPER 1
BG4-F221F-00-00
Unavailable
28
BRACKET, HINGE
BG4-F114B-00-00
Unavailable
29
HINGE,SEAT
BG4-F4726-00-00
Unavailable
30
RUBBER, DAMPING
BG4-F5915-01-00
Unavailable
31
NUT, S/L FLANGE
95607-05200-00
Unavailable
32
BOLT, FLANGE
95817-06012-00
Unavailable
33
BOLT, SEAT FITTING
2PG-F4739-00-00
$1.59
34
BOLT, FLANGE
95817-06050-00
Unavailable
35
NUT, SELF-LOCKING
95617-06100-00
Unavailable
36
WASHER, PLATE
90201-06557-00
Unavailable
37
COLLAR
90387-068S4-00
Unavailable
