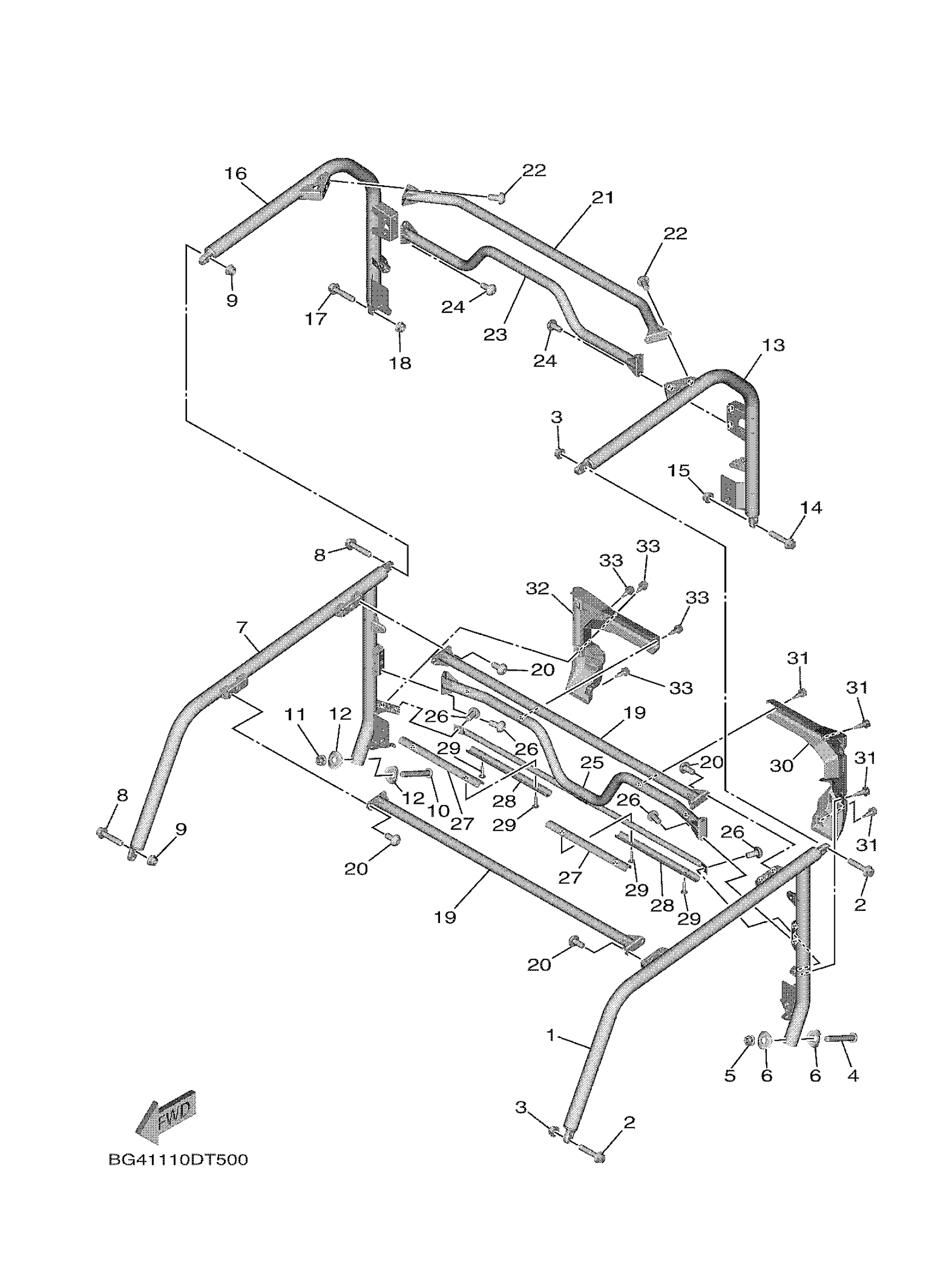

Yamaha YXF85WPSLZ (WOLVERINE X4 XTR) BAR1 2020 GUARD 2 Diagram
#
1
SUPPORT, ROOF 3
BG4-K831A-10-00
$360.99
2
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
3
NUT, SELF-LOCKING
90185-10819-00
$0.90
4
BOLT,BUTTON
92017-10070-00
$4.14
5
NUT, SELF-LOCKING
90185-10819-00
$0.90
6
WASHER 2
1XD-K7526-00-00
$5.49
7
SUPPORT, ROOF 4
BG4-K831E-10-00
$363.99
8
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
9
NUT, SELF-LOCKING
90185-10819-00
$0.90
10
BOLT,BUTTON
92017-10070-00
$4.14
11
NUT, SELF-LOCKING
90185-10819-00
$0.90
12
WASHER 2
1XD-K7526-00-00
$5.49
13
FRAME, SUNROOF 1
BG4-K833M-10-00
$217.99
14
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
15
NUT, SELF-LOCKING
90185-10819-00
$0.90
16
FRAME, SUNROOF 2
BG4-K833R-10-00
Unavailable
17
BOLT, FLANGE(4GB)
95817-10045-00
$6.99
18
NUT, SELF-LOCKING
90185-10819-00
$0.90
19
MEMBER, ROOF FRAME
BG4-K8392-12-00
Unavailable
20
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
21
MEMBER, ROOF FRAME
BG4-K8394-10-00
Unavailable
22
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
23
ROOF SUPPORT ASSY
BG4-K830A-10-00
Unavailable
24
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
25
ROOF SUPPORT ASSY
BG4-K830B-10-00
Unavailable
26
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
27
GRIP,HAND
BG4-K8214-01-00
Unavailable
28
COVER,ASSIST GRIP
BG4-K7575-01-00
Unavailable
29
SCREW, ROUND TAPPING
90160-05012-00
Unavailable
30
COVER, SIDE PILLAR (L.H)
BG4-K813F-00-00
Unavailable
31
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
32
COVER, SIDE PILLAR (R.H)
BG4-K813G-00-00
Unavailable
33
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
