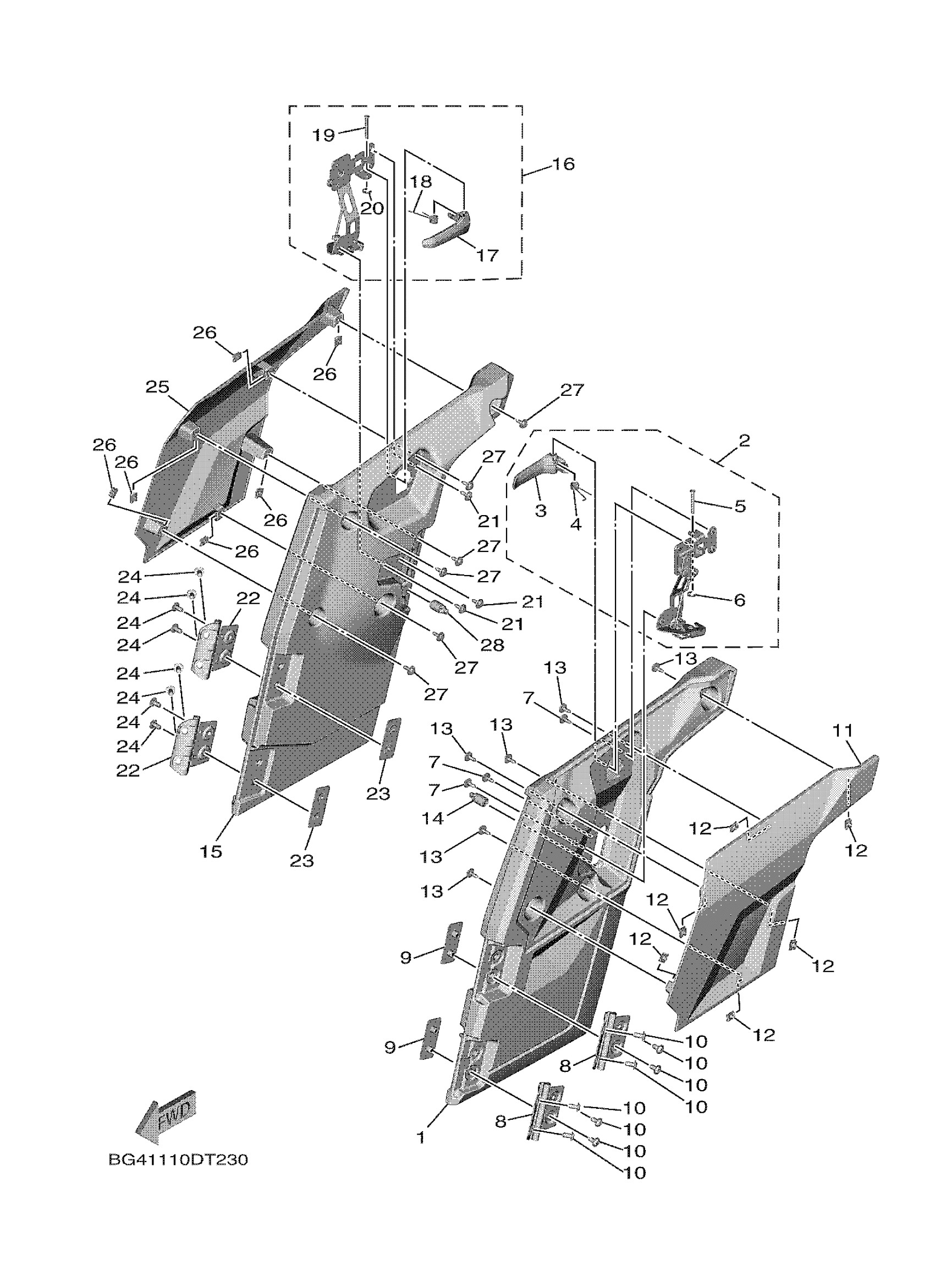

Yamaha YXF85WPSKL (WOLVERINE X4 SPECIAL EDITION) BG4N 2019 SIDE COVER 2 Diagram

#

Description
Price

1

PNL, DOOR RR, LH

BG4-K8571-00-00

$45.61

2

BODY, LATCH 1

BG4-K7171-00-00

$206.80

3

LEVER, LATCH 1

2HC-F17N1-00-00

$5.47

4

SPRING

2HC-F1742-00-00

$2.14

5

. PIN

90249-05801-00

$2.18

6

CIRCLIP (EU0)

99080-04600-00

$1.70

7

BOLT, WITH WASHER

90119-06226-00

$2.12

8

HINGE, SEAT 2

BG4-F4779-00-00

$19.64

9

NUT,PLATE

BG4-F1736-00-00

$5.73

10

SCREW

90149-08805-00

$0.84

11

TRIM, SIDE PANEL 3

BG4-K817K-20-00

$17.82

12

NUT, SPRING

90183-060A6-00

$3.90

13

BOLT, WITH WASHER

90119-06226-00

$2.12

14

PAD

2MB-F8378-00-00

$2.33

15

PNL. , DOOR RR. RH

BG4-K8572-00-00

$61.27

16

BODY, LATCH 2

BG4-K7172-00-00

Unavailable

17

LEVER, LATCH 1

2HC-F17N1-00-00

$5.47

18

SPRING

2HC-F1742-00-00

$2.14

19

. PIN

90249-05801-00

$2.18

20

CIRCLIP (EU0)

99080-04600-00

$1.70

21

BOLT, WITH WASHER

90119-06226-00

$2.12

22

HINGE, SEAT 2

BG4-F4779-00-00

$19.64

23

NUT,PLATE

BG4-F1736-00-00

$5.73

24

SCREW

90149-08805-00

$0.84

25

TRIM, SIDE PANEL 4

BG4-K817L-20-00

$19.67

26

NUT, SPRING

90183-060A6-00

$3.90

27

BOLT, WITH WASHER

90119-06226-00

$2.12

28

PAD

2MB-F8378-00-00

$2.33
