- YXF85WPSKL (WOLVERINE X4 SPECIAL EDITION) BG4N 2019
SHIFT SHAFT

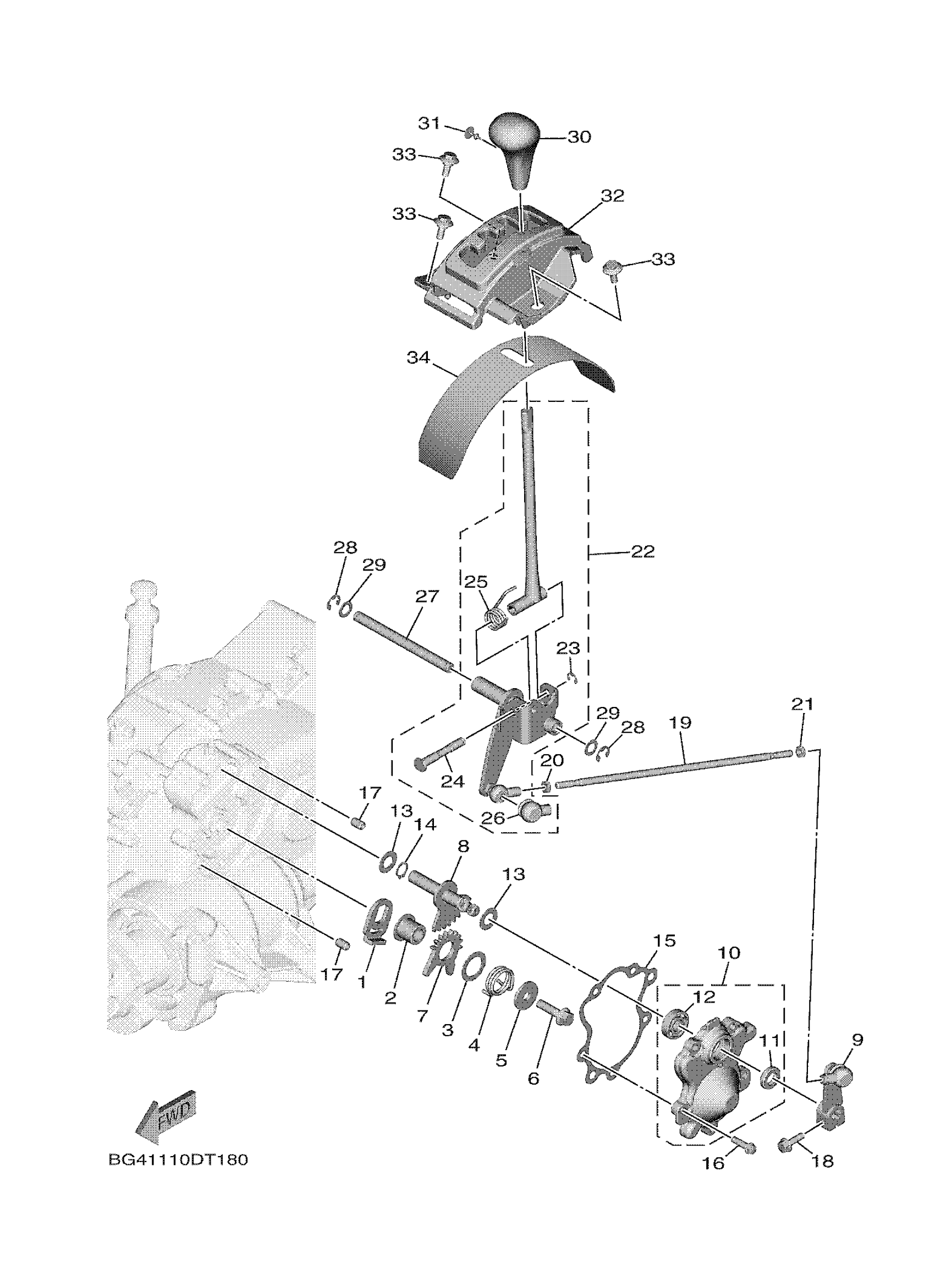

Yamaha YXF85WPSKL (WOLVERINE X4 SPECIAL EDITION) BG4N 2019 SHIFT SHAFT Diagram
#
1
LEVER
BG4-18198-00-00
$4.88
2
COLLAR
90387-13007-00
Unavailable
3
WASHER PLATE 328171160000
90201-20276-00
$8.49
4
SPRING, TORSION
90508-32143-00
$3.76
5
WASHER, PLATE (8M2)
90201-083A8-00
$2.02
6
BOLT, FLANGE(6TA)
95817-08030-00
$8.49
7
LEVER
BG4-18191-00-00
$9.49
8
SHIFT SHAFT COMP.
BG4-18103-00-00
$38.99
9
SHIFT GUIDE COMP.
BG4-18104-00-00
Unavailable
10
SHIFTER BRKT. ASSY
BG4-18380-00-00
Unavailable
11
OIL SEAL (12X22X5-371)
93102-12106-00
$11.49
12
BRG,R-B 6001 28MM 28G KY
93306-00105-00
$30.99
13
WASHER, PLATE (5N6)
90201-127E1-00
$4.29
14
CIRCLIP(10Y)
99009-12400-00
$3.59
15
GASKET
BG4-18146-00-00
$8.49
16
BOLT, FLANGE
95022-06020-00
Unavailable
17
PIN, DOWEL
99530-08012-00
Unavailable
18
BOLT, FLANGE
95817-06020-00
Unavailable
19
ROD, SHIFT
BG4-18115-00-00
Unavailable
20
NUT (2H9)
90170-06228-00
Unavailable
21
NUT(JN5)
95317-06700-00
Unavailable
22
SHIFT LEVER ASSY
BG4-E8150-00-00
Unavailable
23
CIRCLIP(53L)
99001-06600-00
Unavailable
24
SHAFT, SHIFT
1HP-E8125-00-00
Unavailable
25
SPRING, RETURN
1HP-E8196-00-00
Unavailable
26
COVER, DUST
2H9-18154-00-00
Unavailable
27
PIN, SHIFT
BG4-18173-00-00
Unavailable
28
CIRCLIP(2R6)
99001-08600-00
Unavailable
29
WASHER, PLAIN(735)
90201-10119-00
Unavailable
30
KNOB, SHIFT LEVER
28P-18174-00-00
Unavailable
31
RIVET(81E)
90269-05055-00
Unavailable
32
GUIDE, SHIFT
BG4-E8172-00-00
Unavailable
33
BOLT
90109-06172-00
Unavailable
34
COVER, DUST
1HP-E8154-01-00
Unavailable
