- YXF85WPSKL (WOLVERINE X4 SPECIAL EDITION) BG4N 2019
CRANKCASE COVER 1

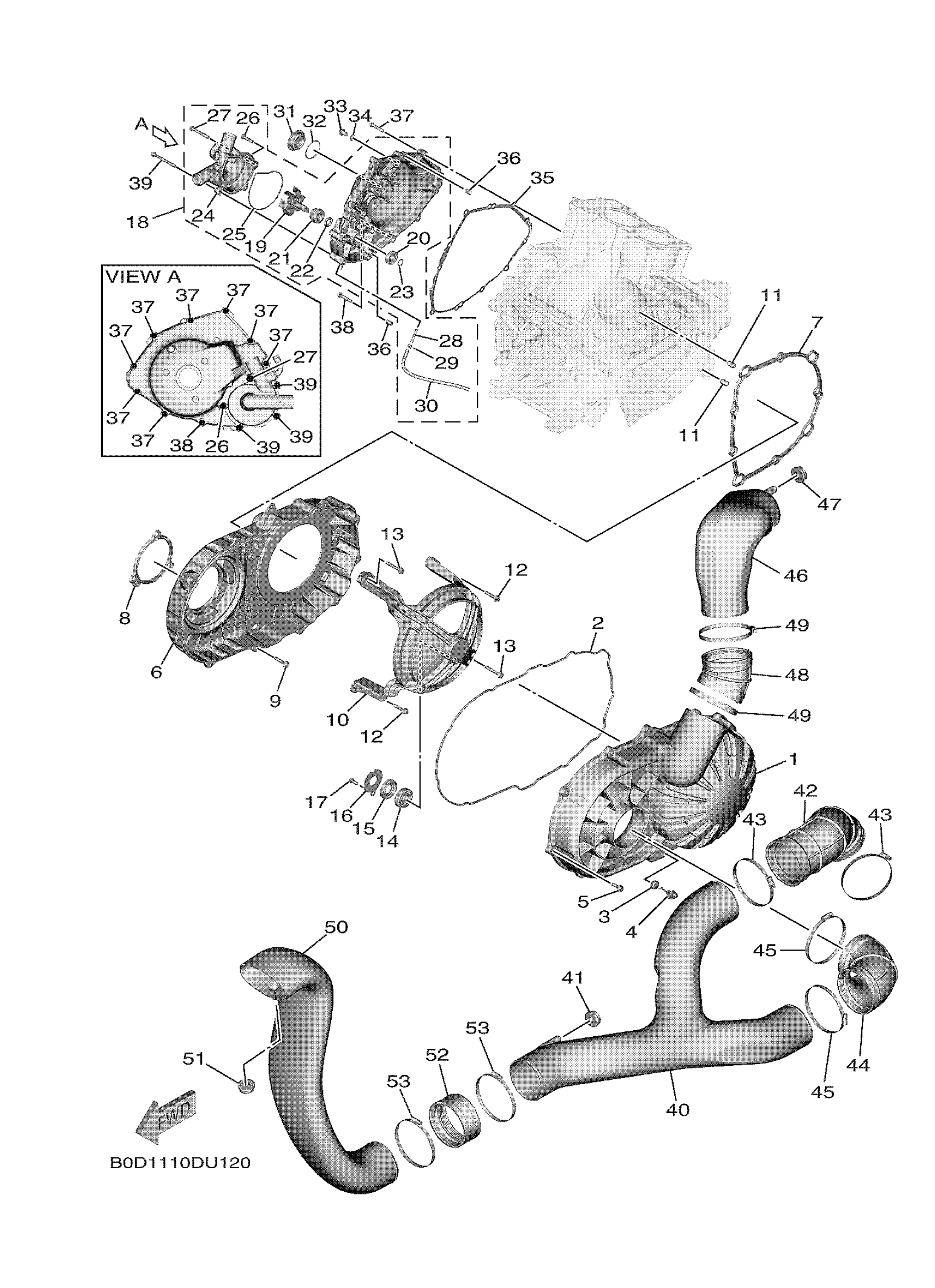

Yamaha YXF85WPSKL (WOLVERINE X4 SPECIAL EDITION) BG4N 2019 CRANKCASE COVER 1 Diagram
#
1
COVER, CRANKCASE 1
BG4-15411-00-00
Unavailable
2
SEAL, CRANKCASE
BG4-15379-00-00
$36.99
3
GROMMET (462)
90480-13018-00
$8.49
4
PLUG, DRAIN
5KM-15351-00-00
$7.99
5
BOLT, FLANGE
95817-06020-00
$3.81
6
COVER, CRANKCASE 2
BG4-15421-00-00
Unavailable
7
GASKET
BG4-15453-00-00
Unavailable
8
SEAL, CRANKCASE
BG4-15315-00-00
$15.99
9
95822-06030
95822-06030-00
$1.38
10
HOUSING, BEARING
BG4-15442-00-00
Unavailable
11
PIN, DOWEL(3VD)
99530-10114-00
$2.55
12
95822-06030
95822-06030-00
$1.38
13
BOLT, FLANGE
95817-06040-00
$5.60
14
BEARING (5Y1)
93306-00426-00
$42.99
15
OIL SEAL(1YU)
93102-20371-00
$11.49
16
PLATE, BEARING COVER
BG4-15381-00-00
Unavailable
17
BOLT, FLANGE
95022-06016-00
Unavailable
18
CRANKCASE COVER ASSY 3
BG4-15430-00-00
Unavailable
19
IMPELLER SHAFT ASSY
B4D-E2450-00-00
Unavailable
20
BRG,R-B 6001 28MM 28G KY
93306-00105-00
Unavailable
21
SEAL, MECHANICAL
4C8-12438-00-00
Unavailable
22
OIL SEAL
93101-12173-00
Unavailable
23
CIRCLIP(10Y)
99009-12400-00
Unavailable
24
COVER, HOUSING
B4D-E2422-00-00
Unavailable
25
O-RING
B4D-E2439-00-00
Unavailable
26
BOLT, FLANGE
95022-06025-00
Unavailable
27
BOLT, FLANGE
95022-06045-00
Unavailable
28
PIPE, DRAIN
5D3-1243K-00-00
Unavailable
29
CLIP
90467-070A0-00
Unavailable
30
HOSE (L200)
90445-07176-00
Unavailable
31
PLUG, STRAIGHT SCREW
90340-36004-00
Unavailable
32
O-RING
93210-35804-00
Unavailable
33
BOLT, BUTTON HEAD
92012-08012-00
Unavailable
34
. GASKET
90430-08143-00
Unavailable
35
GASKET, CRANKCASE COVER 3
BG4-15462-00-00
Unavailable
36
PIN, DOWEL
99530-08012-00
Unavailable
37
BOLT, FLANGE
95022-06030-00
Unavailable
38
BOLT, FLANGE
90105-06223-00
Unavailable
39
BOLT, FLANGE
95022-06060-00
Unavailable
40
DUCT, AIR
BG4-E5477-00-00
Unavailable
41
GROMMET (1L9)
90480-22196-00
Unavailable
42
SEAL, AIR DUCT
BG4-E5474-01-00
Unavailable
43
HOSE CLAMP ASSY
90450-99806-00
Unavailable
44
SEAL, AIR DUCT
BG4-E547B-00-00
Unavailable
45
HOSE CLAMP ASSY
90450-99806-00
Unavailable
46
DUCT, AIR
BG4-E5473-02-00
Unavailable
47
GROMMET (1L9)
90480-22196-00
Unavailable
48
SEAL, AIR DUCT
BG4-E5472-00-00
Unavailable
49
HOSE CLAMP ASSY
90450-99806-00
Unavailable
50
DUCT, AIR
BG4-E5471-00-00
Unavailable
51
GROMMET (1L9)
90480-22196-00
Unavailable
52
SEAL
BG4-E4476-10-00
Unavailable
53
HOSE CLAMP ASSY
90450-99806-00
Unavailable
