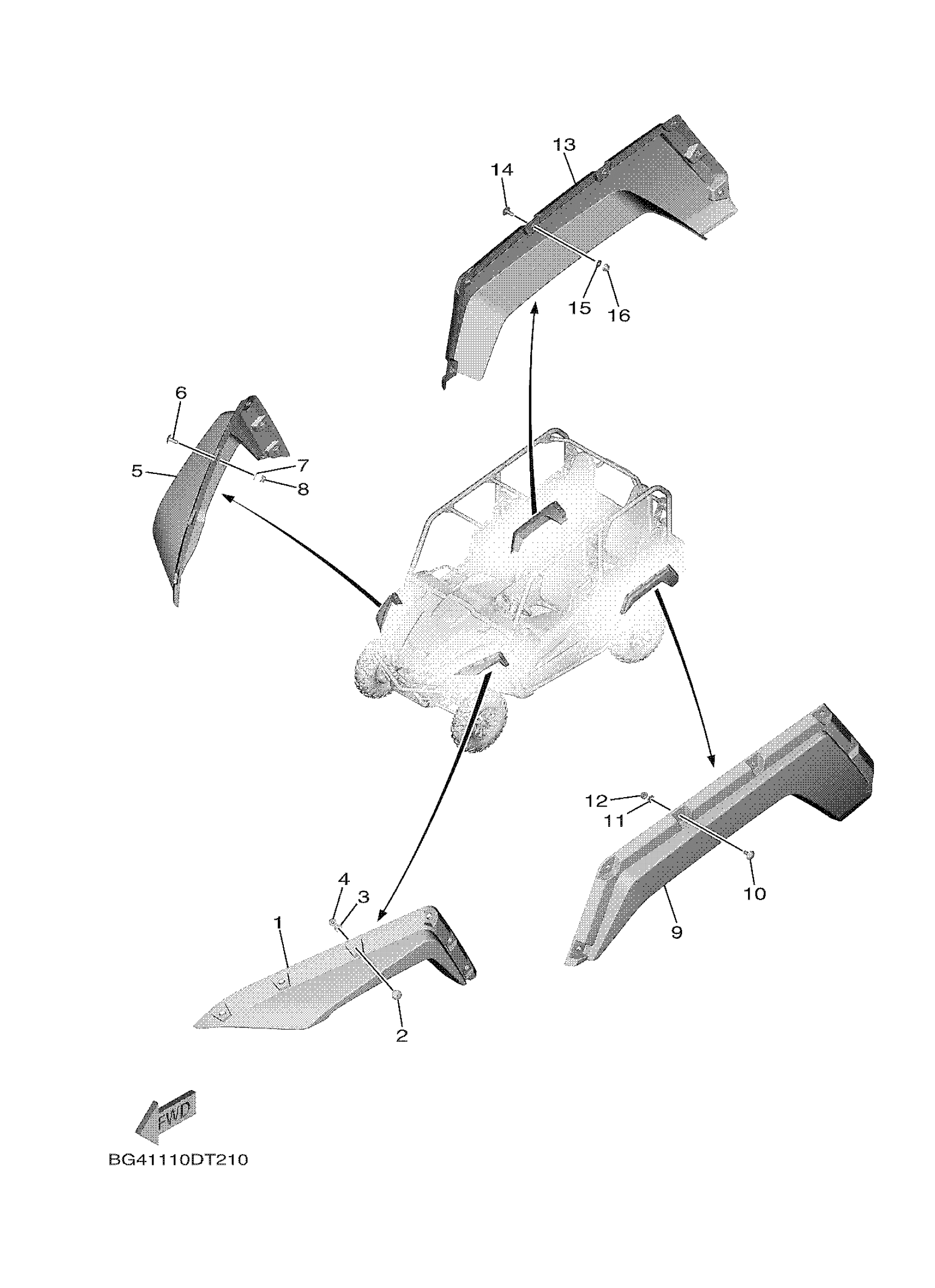

Yamaha YXF85WPSKB (WOLVERINE X4 SE) BG4K 2019 FENDER Diagram

#

Description
Price

1

FENDER, OVER

BG4-F1551-00-00

$30.99

2

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

3

WASHER, PLATE

90201-06020-00

$9.49

4

NUT, U FLANGE

95604-06200-00

$8.49

5

FENDER, OVER 2

BG4-F1555-00-00

$30.99

6

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

7

WASHER, PLATE

90201-06020-00

$9.49

8

NUT, U FLANGE

95604-06200-00

$8.49

9

FENDER, OVER 3

BG4-F1559-00-00

$59.99

10

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

11

WASHER, PLATE

90201-06020-00

$9.49

12

NUT, U FLANGE

95604-06200-00

$8.49

13

FENDER, OVER 4

BG4-F1560-00-00

$59.99

14

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

15

WASHER, PLATE

90201-06020-00

$9.49

16

NUT, U FLANGE

95604-06200-00

$8.49
