Description

Price

1

SEAT BACK ASSY

BG4-F4790-01-00

Unavailable

2

COVER, SINGLE SEAT

BG4-F4711-00-00

$149.99

3

SEAT ASSY 2

BG4-K8420-01-00

Unavailable

4

COVER, SEAT

BG4-F4791-01-00

Unavailable

5

FRAME, SEAT 1

BG4-F473C-01-00

Unavailable

6

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.59

7

GROMMET

1XD-F4742-00-00

$3.69

8

ADJUSTER ASSY

BG4-F7270-00-00

$228.99

9

ADJUSTER ASSY

BG4-F7260-00-00

$228.99

10

NUT, SELF-LOCKING

95602-08200-00

$3.20

11

BOLT, FLANGE

95817-08012-00

$5.49

12

SEAT BACK ASSY

BG4-F4790-01-00

Unavailable

13

COVER, SINGLE SEAT

BG4-F4711-00-00

$149.99

14

SEAT ASSY 2

BG4-K8420-01-00

Unavailable

15

COVER, SEAT

BG4-F4791-01-00

Unavailable

16

FRAME SEAT 2

BG4-F473D-01-00

Unavailable

17

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.59

18

GROMMET

1XD-F4742-00-00

$3.69

19

BOLT, FLANGE

95817-08012-00

$5.49

20

COVER

BG4-F117F-00-00

Unavailable

21

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

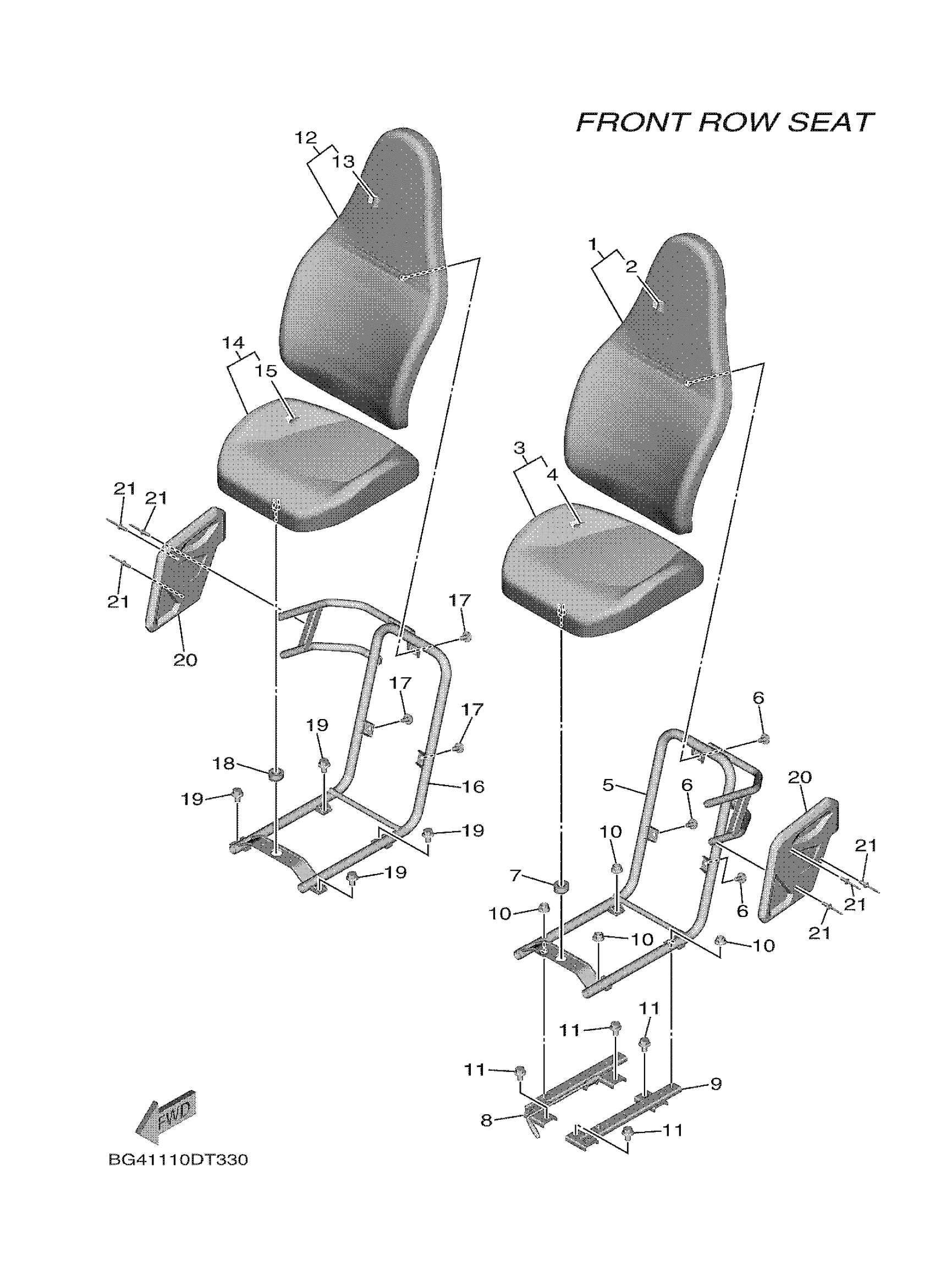

Yamaha YXF85WPSJS (WOLVERINE X4 SPECIAL EDITION) BG41 2018 SEAT Diagram

SEAT BACK ASSY

COVER, SINGLE SEAT

SEAT ASSY 2

COVER, SEAT

FRAME, SEAT 1

BOLT, SEAT FITTING

GROMMET

ADJUSTER ASSY

ADJUSTER ASSY

NUT, SELF-LOCKING

BOLT, FLANGE

SEAT BACK ASSY

COVER, SINGLE SEAT

SEAT ASSY 2

COVER, SEAT

FRAME SEAT 2

BOLT, SEAT FITTING

GROMMET

BOLT, FLANGE

COVER

RIVET, BLIND(EU0,USA)
