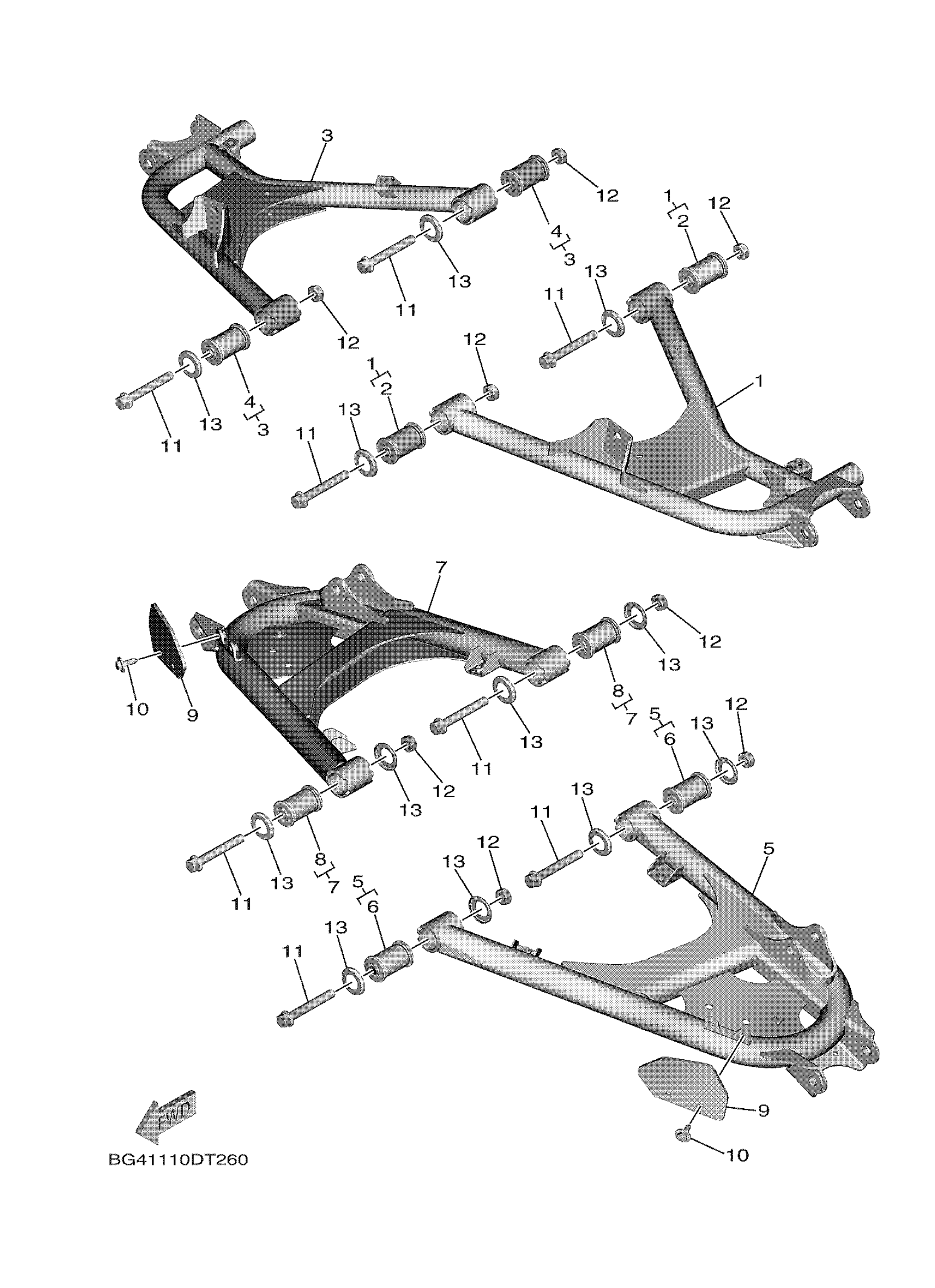

Yamaha YXF85WPSJS (WOLVERINE X4 SPECIAL EDITION) BG41 2018 REAR ARM Diagram

#

Description
Price

1

RR. UPR. ARM COMP.

BG4-F2104-00-00

$58.99

2

BUSH

1HP-F3526-00-00

$22.99

3

RR. UPR. ARM COMP.

BG4-F2105-00-00

$58.99

4

BUSH

1HP-F3526-00-00

$22.99

5

RR. LWR. ARM COMP., 1

BG4-F2106-01-00

Unavailable

6

BUSH

1HP-F3526-00-00

$22.99

7

RR. LWR. ARM COMP.

BG4-F2107-01-00

$66.99

8

BUSH

1HP-F3526-00-00

$22.99

9

COVER, THRUST 1

2HC-F2128-10-00

$2.49

10

BOLT, WITH WASHER

90119-06226-00

$8.49

11

BOLT, FLANGE

90105-10267-00

$9.49

12

NUT, SELF-LOCKING

90185-10012-00

$9.49

13

COVER, THRUST 1

BG4-F3517-00-00

$0.80
