- YXF85WPSJS (WOLVERINE X4 SPECIAL EDITION) BG41 2018
GUARD 2

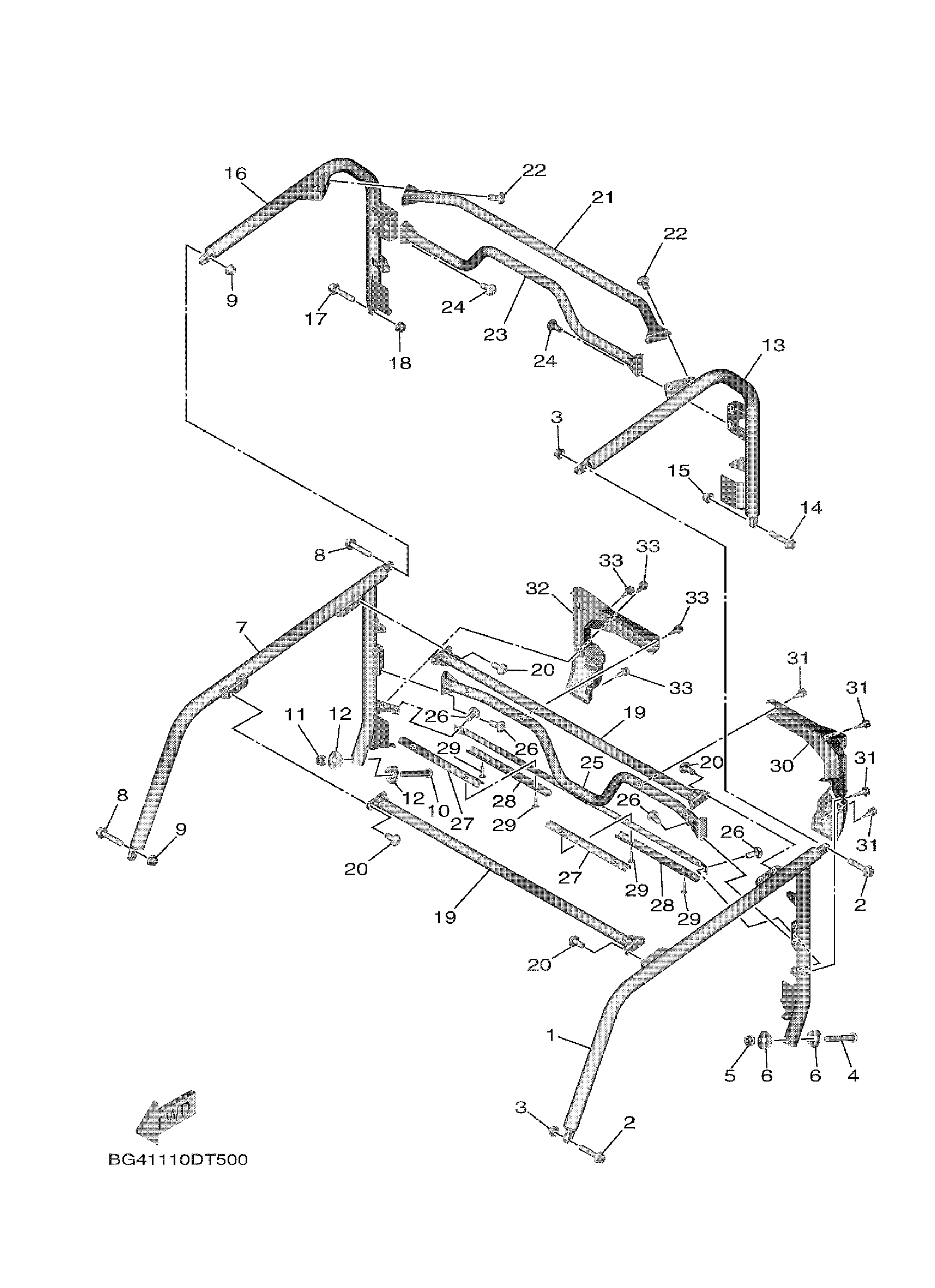

Yamaha YXF85WPSJS (WOLVERINE X4 SPECIAL EDITION) BG41 2018 GUARD 2 Diagram
#
1
SUPPORT, ROOF 3
BG4-K831A-00-00
Unavailable
2
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
3
NUT, SELF-LOCKING
90185-10011-00
$5.60
4
BOLT, BUTTON HEAD
92012-10070-00
$3.76
5
NUT, SELF-LOCKING
90185-10011-00
$5.60
6
WASHER 2
1XD-K7526-00-00
$5.49
7
SUPPORT, ROOF 4
BG4-K831E-00-00
Unavailable
8
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
9
NUT, SELF-LOCKING
90185-10011-00
$5.60
10
BOLT, BUTTON HEAD
92012-10070-00
$3.76
11
NUT, SELF-LOCKING
90185-10011-00
$5.60
12
WASHER 2
1XD-K7526-00-00
$5.49
13
RRAME, SUNROOF 1
BG4-K833M-00-00
$206.99
14
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
15
NUT, SELF-LOCKING
90185-10011-00
$5.60
16
FRAME, SUNROOF 2
BG4-K833R-00-00
Unavailable
17
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
18
NUT, SELF-LOCKING
90185-10011-00
$5.60
19
MEMBER, ROOF FRAME
BG4-K8392-02-00
Unavailable
20
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
21
MEMBER, ROOF FRAME
BG4-K8394-00-00
Unavailable
22
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
23
ROOF SUPPORT ASSY
BG4-K830A-00-00
Unavailable
24
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
25
ROOF SUPPORT ASSY
BG4-K830B-00-00
Unavailable
26
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
27
GRIP,HAND
BG4-K8214-01-00
Unavailable
28
COVER,ASSIST GRIP
BG4-K7575-01-00
Unavailable
29
SCREW, ROUND TAPPING
90160-05012-00
Unavailable
30
COVER, SIDE PILLAR (L.H)
BG4-K813F-00-00
Unavailable
31
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
32
COVER, SIDE PILLAR (R.H)
BG4-K813G-00-00
Unavailable
33
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
