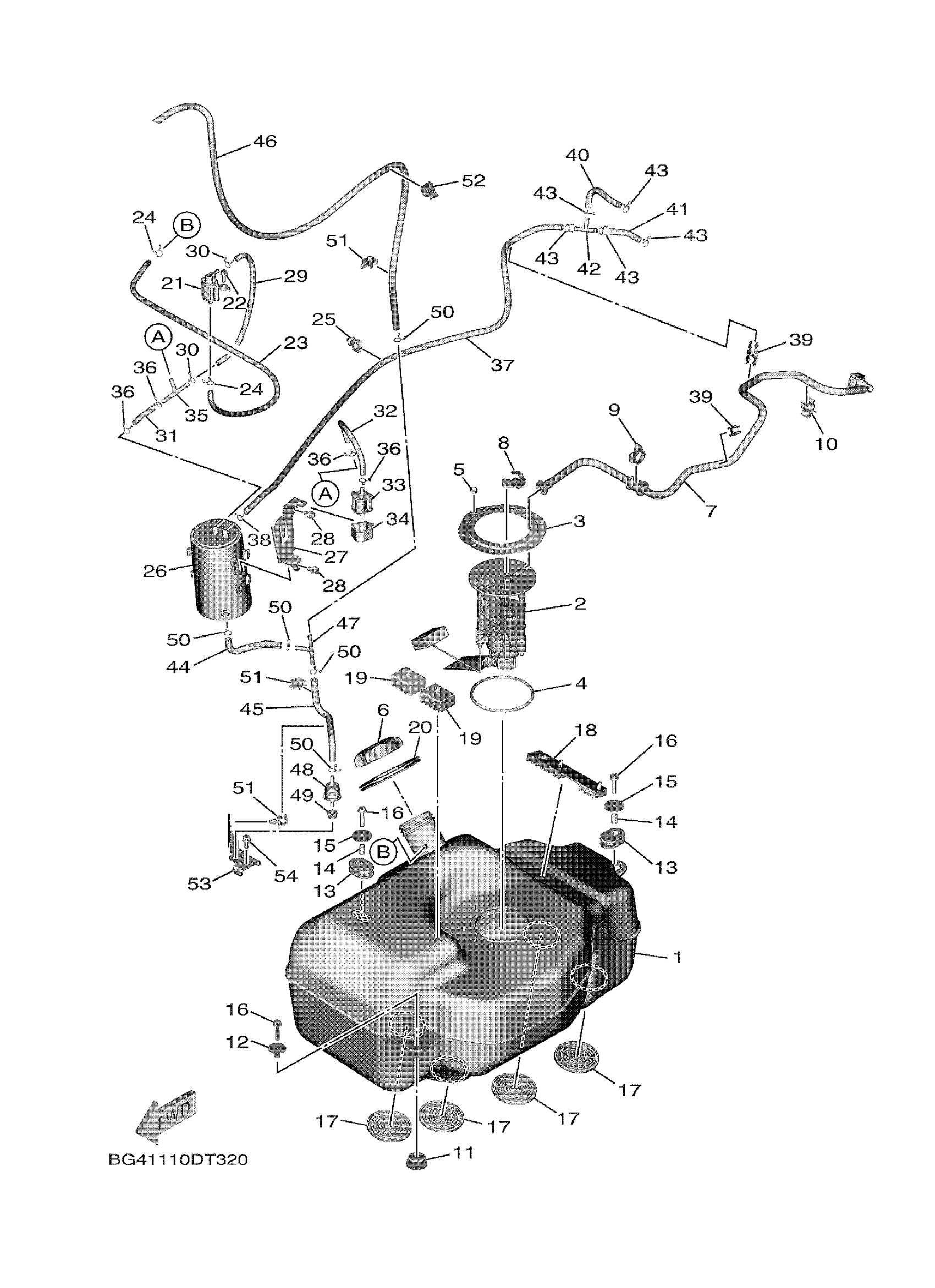

Yamaha YXF85WPSJS (WOLVERINE X4 SPECIAL EDITION) BG41 2018 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BG4-F4110-01-00

Unavailable

2

Fuel Pump Comp

3B4-13907-13-00

$317.99

3

BRACKET, FUEL PUMP

3B4-24491-00-00

Unavailable

4

O-RING

1S3-24486-00-00

$17.49

5

NUT (J17)

95380-06800-00

$8.49

6

CAP ASSY

BKP-24610-00-00

$31.99

7

PIPE, FUEL 1

BG4-13971-01-00

Unavailable

8

CLAMP

90464-14004-00

$7.49

9

CLAMP

90464-20010-00

$3.23

10

CLAMP

90464-12015-00

$0.74

11

GROMMET

90480-18016-00

$8.49

12

COLLAR

90387-07021-00

$7.49

13

GROMMET(38W)

90480-01400-00

$13.49

14

COLLAR(2UJ)

90387-061V1-00

$8.49

15

WASHER (23T)

90201-065G8-00

$8.49

16

BOLT, FLANGE

95817-06030-00

Unavailable

17

DAMPER, LOCATING 1

2MB-F4181-00-00

Unavailable

18

DAMPER, LOCATING 1

2HC-F4181-00-00

Unavailable

19

DAMPER, LOCATING 2

2MB-F4182-00-00

Unavailable

20

COVER, FUEL INLET

BG4-K8272-00-00

Unavailable

21

PIPE JOINT ASSY

28P-24380-00-00

Unavailable

22

BOLT, FLANGE

95022-06014-00

Unavailable

23

HOSE (L810)

90445-09046-00

Unavailable

24

CLIP

90467-090A2-00

Unavailable

25

CLAMP

90464-12830-00

Unavailable

26

CANISTER ASSY

7CC-F4170-11-00

Unavailable

27

CANISTER HOLDER AS

BG4-F4190-00-00

Unavailable

28

BOLT, FLANGE

95812-06010-00

Unavailable

29

HOSE (L260)

90445-09045-00

Unavailable

30

CLIP

90467-090A2-00

Unavailable

31

HOSE (L54)

90445-09043-00

Unavailable

32

HOSE (L200)

90445-09044-00

Unavailable

33

PIPE JOINT ASSY

3B4-24380-11-00

Unavailable

34

BAND 1

3B4-24398-00-00

Unavailable

35

WAY (70R)

90413-08012-00

Unavailable

36

CLIP

90467-090A2-00

Unavailable

37

HOSE (L1050)

90445-10062-00

Unavailable

38

CLIP

90467-090A2-00

Unavailable

39

CLAMP

90464-11005-00

Unavailable

40

HOSE

90445-10829-00

Unavailable

41

HOSE (L65)

90445-10061-00

Unavailable

42

WAY 3 (10L)

90413-07007-00

Unavailable

43

CLIP

90467-100A1-00

Unavailable

44

PIPE 5

BG4-24315-00-00

Unavailable

45

PIPE 11

BG4-24322-00-00

Unavailable

46

HOSE (L1010)

90445-11100-00

Unavailable

47

WAY (70R)

90413-08012-00

Unavailable

48

VALVE, CHECK 1

BG4-24362-00-00

Unavailable

49

GROMMET

90480-10003-00

Unavailable

50

CLIP

90467-100A1-00

Unavailable

51

CLAMP

90464-14M55-00

Unavailable

52

CLAMP

90464-16006-00

Unavailable

53

BRACKET 1

BG4-F148U-00-00

Unavailable

54

BOLT, FLANGE

90105-06831-00

Unavailable
