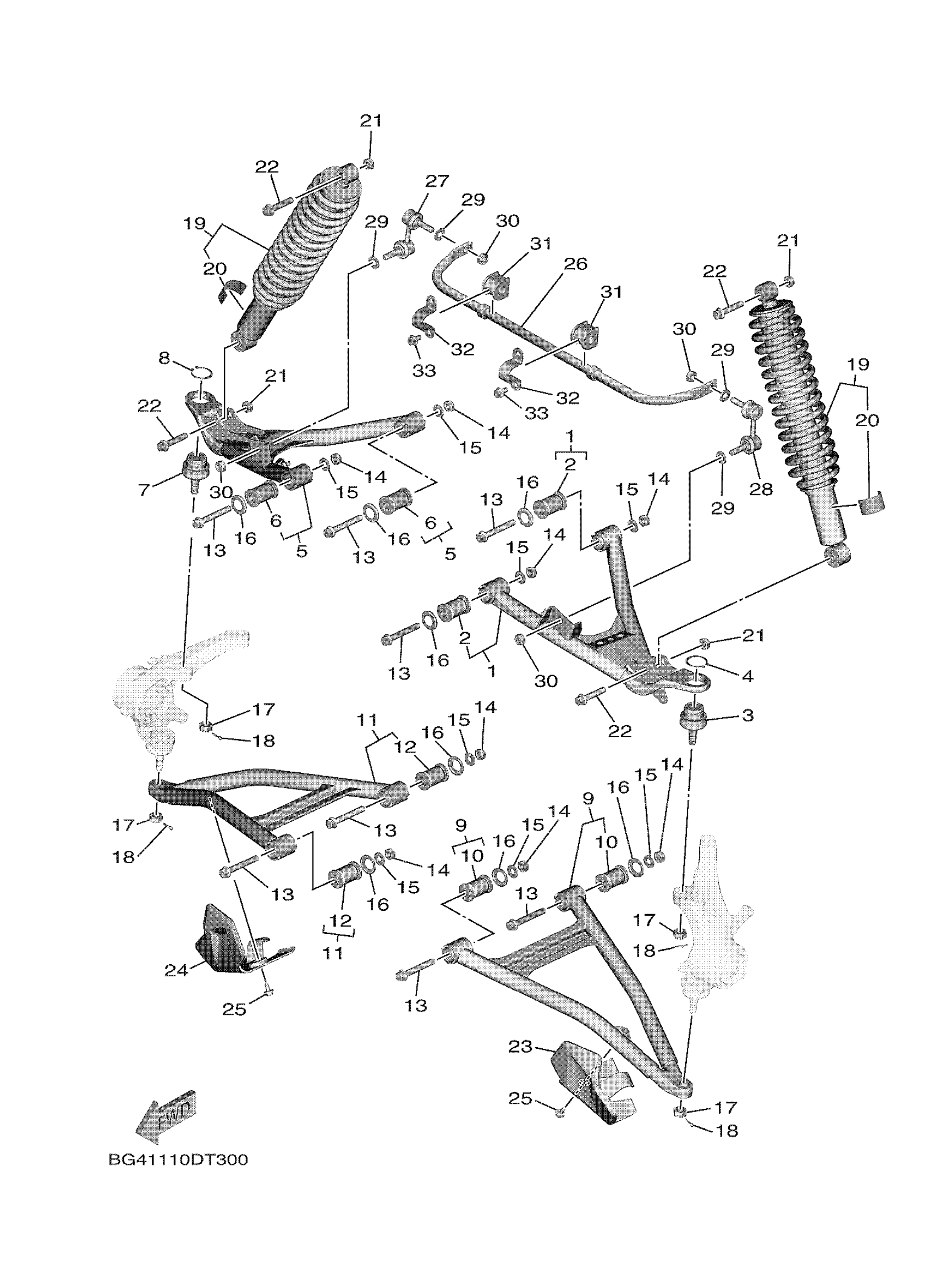

Yamaha YXF85WPSJS (WOLVERINE X4 SPECIAL EDITION) BG41 2018 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRT. UPPER ARM (L)

BG4-F3540-01-00

$77.00

2

BUSH

1HP-F3526-00-00

$20.42

3

BALL JOINT 2

1XD-23579-00-00

$62.23

4

CIRCLIP

93410-32075-00

$6.51

5

FRT. UPPER ARM (R)

BG4-F3550-01-00

$79.00

6

BUSH

1HP-F3526-00-00

$20.42

7

BALL JOINT 2

1XD-23579-00-00

$62.23

8

CIRCLIP

93410-32075-00

$6.51

9

FRT LWR ARM CMPL L

BG4-F3570-01-00

$67.15

10

BUSH

1HP-F3526-00-00

$20.42

11

FRT LWR ARM CMPL R

BG4-F3580-01-00

$67.15

12

BUSH

1HP-F3526-00-00

$20.42

13

BOLT, FLANGE

90105-10267-00

$7.23

14

NUT, SELF-LOCKING

90185-10012-00

$2.78

15

WASHER, PLATE

90201-10035-00

$3.33

16

COVER, THRUST 1

BG4-F3517-00-00

Unavailable

17

NUT, CASTLE

90171-12001-00

Unavailable

18

PIN, COTTER

91490-25020-00

Unavailable

19

SHOCK ABSORBER ASS

BG4-F3390-00-00

Unavailable

20

LABEL,WARNING

1HP-F2259-01-00

Unavailable

21

NUT, SELF-LOCKING

90185-10012-00

$2.78

22

BOLT, FLANGE

90105-10283-00

Unavailable

23

COVER, UNDER 1

2MB-F3123-01-00

Unavailable

24

COVER, UNDER 2

2MB-F3133-01-00

Unavailable

25

BOLT, WITH WASHER

90119-06152-00

Unavailable

26

BAR, STABILIZER FR

BG4-F386E-00-00

Unavailable

27

JOINT, STABILIZER 1

16B-2385L-10-00

Unavailable

28

JOINT, STABILIZER 2

16B-2385M-10-00

Unavailable

29

WASHER, PLATE

90201-10035-00

$3.33

30

NUT, SELF-LOCKING

90185-10012-00

$2.78

31

GROMMET

90480-01819-00

Unavailable

32

BRKT., STABILIZER

BG4-F386B-00-00

Unavailable

33

BOLT, FLANGE

95817-08014-00

Unavailable
