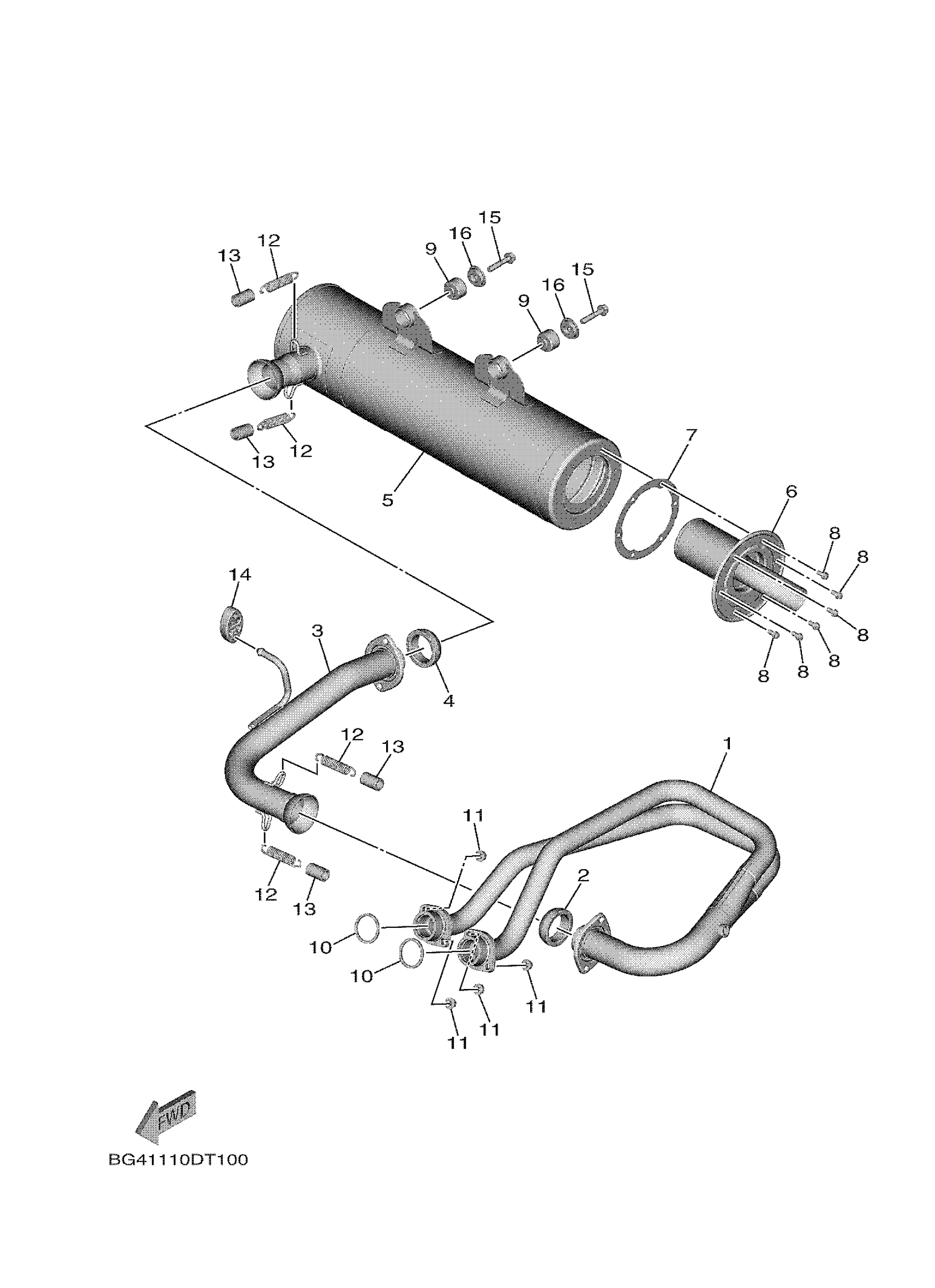

Yamaha YXF85WPSJS (WOLVERINE X4 SPECIAL EDITION) BG41 2018 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

BG4-E4611-00-00

$184.62

2

GASKET, MUFFLER

2MB-E4714-00-00

Unavailable

3

PIPE, EXHAUST 2

BG4-E4621-00-00

$68.41

4

GASKET, MUFFLER

2MB-E4714-00-00

Unavailable

5

MUFFLER 1

BG4-E4711-03-00

Unavailable

6

SPARK ARRESTER ASS

BG4-E4780-01-00

$44.12

7

GASKET, SILENCER

2HC-14755-00-00

$17.76

8

BOLT, FLANGE

95022-06012-00

$2.80

9

DAMPER,FOOTREST

1HP-F7414-00-00

$18.79

10

GASKET, EXHAUST PIPE

4FM-14613-00-00

$8.69

11

NUT,FLANGE(J10)

95702-08500-00

$0.79

12

SPRING, TENSION

90506-26012-00

$11.25

13

PIPE, 4-3

BG4-1464K-00-00

$10.89

14

DAMPER, MUFFLER

5UG-14737-00-00

$13.33

15

BOLT, FLANGE

95817-08040-00

$5.04

16

WASHER

3B4-14759-01-00

Unavailable
