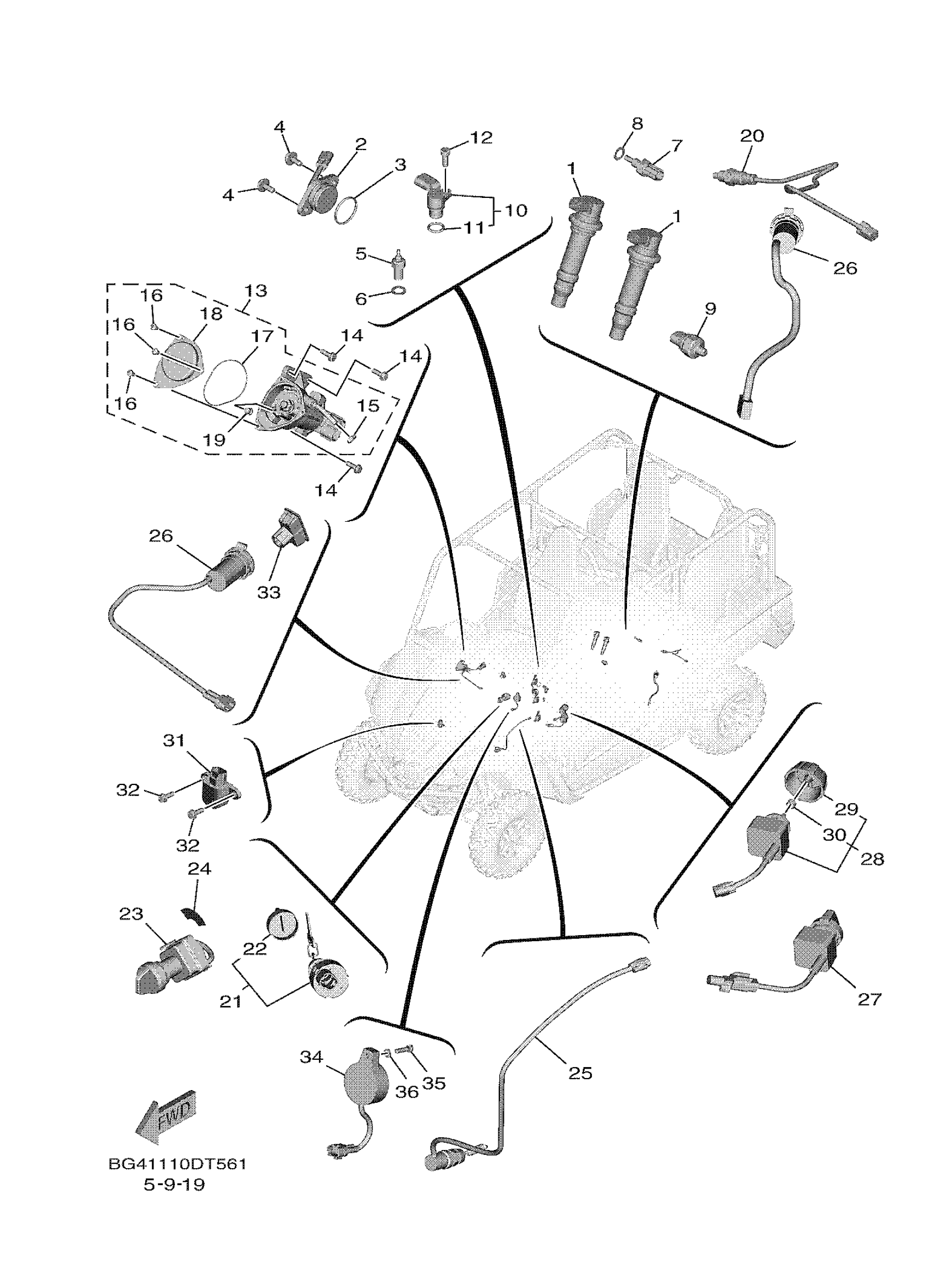

Yamaha YXF85WPSJS (WOLVERINE X4 SPECIAL EDITION) BG41 2018 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

1WS-82310-00-00

$110.99

2

NEUTRAL SWITCH ASS

BG4-82540-02-00

Unavailable

3

O-RING (371)

93210-29196-00

$8.49

4

BOLT, WITH WASHER

90119-06137-00

$8.49

5

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

6

GASKET (1KH,1.0T)

90430-10148-00

$5.60

7

THERMO UNIT

52B-H3591-00-00

$34.99

8

GASKET

90430-10004-00

$7.49

9

OIL PRESSURE SWITCH

8FP-82504-01-00

$71.99

10

SENSOR, SPEED

1TP-83755-00-00

$77.99

11

O-RING

4D9-81168-00-00

$6.99

12

BOLT(3MA)

91312-06016-00

$5.60

13

SENSOR UNIT

BG4-8A410-01-00

Unavailable

14

BOLT, SPECIAL

JW1-F3394-00-00

Unavailable

15

. NUT, CABLE ADJUSTING

1S3-14161-00

Unavailable

16

. SCREW, PAN HEAD

98502-04006

Unavailable

17

. O-RING

5LP-14147-00

Unavailable

18

. COVER1

5UG-14293-00

Unavailable

19

. GUIDE, CABLE

1UY-14155-00

Unavailable

20

SENSOR, OXYGEN

1WS-8592A-10-00

Unavailable

21

MAIN SWITCH ASSY

1XD-H2510-11-00

Unavailable

22

CAP, KEY

5UG-H2579-00-00

Unavailable

23

KEY ASSY

BG4-8250A-00-00

Unavailable

24

LABEL

BG4-H2108-01-00

Unavailable

25

STOP SWITCH ASSY

13S-82530-03-00

Unavailable

26

TERMINAL COMP.

1HP-H254B-10-00

Unavailable

27

SWITCH, LAMP

BG4-82526-02-00

Unavailable

28

SWITCH, SELECT

1XD-87280-01-00

Unavailable

29

KNOB, SELECT SWITCH

1XD-87285-00-00

Unavailable

30

SPRING

1XD-87288-00-00

Unavailable

31

SENSOR, LEAN ANGLE

3B4-82576-10-00

Unavailable

32

BOLT, SPECIAL

JW1-F3394-00-00

Unavailable

33

PILOT LIGHT ASSY

1XD-H3530-00-00

Unavailable

34

BUZZER

2MB-83383-00-00

Unavailable

35

BOLT(3JK)

97027-05020-00

Unavailable

36

WASHER, PLAIN (646)

92990-05600-00

Unavailable
