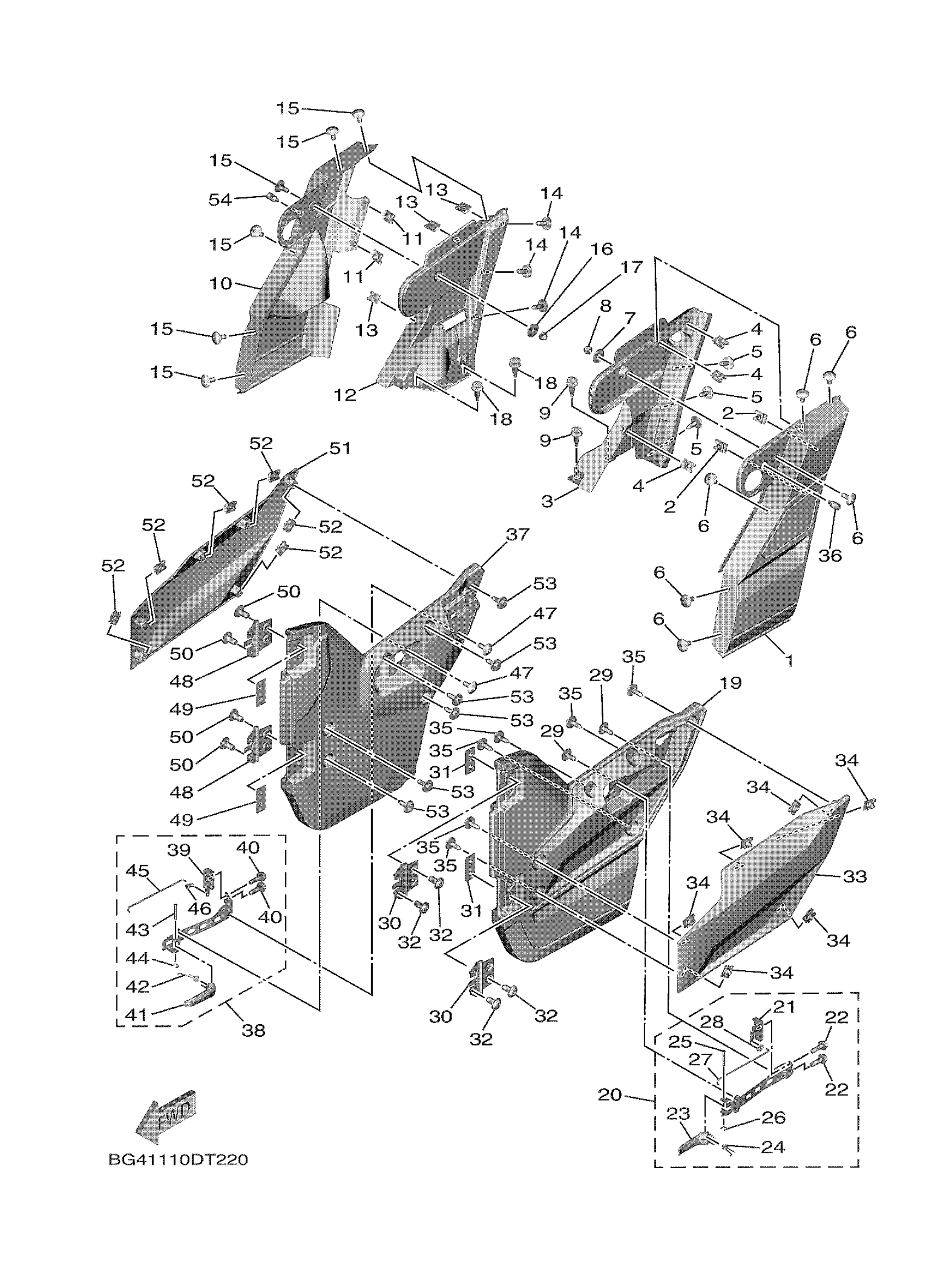

Yamaha YXF85WPSJD (WOLVERINE X4 SPECIAL EDITION) BG4A 2018 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 2

BG4-F1721-00-00

$83.24

2

NUT, SPRING

90183-060A6-00

$3.90

3

PLATE, UNDER 1

BG4-F84A3-01-00

$20.35

4

NUT, SPRING

90183-060A6-00

$3.90

5

BOLT, WITH WASHER

90119-06226-00

$2.12

6

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

7

WASHER, PLATE

90201-06036-00

$5.84

8

NUT (J17)

95380-06800-00

$6.28

9

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

10

COVER, SIDE 3

BG4-F1731-00-00

$84.39

11

NUT, SPRING

90183-060A6-00

$3.90

12

PLATE, UNDER 2

BG4-F84A4-00-00

$21.58

13

NUT, SPRING

90183-060A6-00

$3.90

14

BOLT, WITH WASHER

90119-06226-00

$2.12

15

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

16

WASHER, PLATE

90201-06036-00

$5.84

17

NUT (J17)

95380-06800-00

$6.28

18

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

19

PNL., DOOR FR. LH

BG4-K8557-00-00

Unavailable

20

BODY, LATCH 1

2HC-K7171-00-00

Unavailable

21

LOCK ASSY

2HC-F16A0-00-00

Unavailable

22

BOLT, FLANGE

95817-06020-00

Unavailable

23

LEVER, LATCH 1

2HC-F17N1-00-00

Unavailable

24

SPRING

2HC-F1742-00-00

Unavailable

25

. PIN

90249-05801-00

$2.18

26

CIRCLIP (EU0)

99080-04600-00

$1.70

27

. ROD 1

2HC-F7247-00-00

$2.00

28

. CLIP, CABLE

2HC-F2805-00-00

$0.68

29

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

30

HINGE ASSY

BG4-F4772-00-00

Unavailable

31

NUT,PLATE

BG4-F1736-00-00

Unavailable

32

SCREW

90149-08805-00

Unavailable

33

TRIM, SIDE PANEL 1

BG4-K817H-20-00

$23.33

34

NUT, SPRING

90183-060A6-00

$3.90

35

BOLT, WITH WASHER

90119-06226-00

$2.12

36

PAD

2MB-F8378-00-00

Unavailable

37

PNL., DOOR FR. RH

BG4-K8558-00-00

Unavailable

38

BODY, LATCH 2

2HC-K7172-00-00

Unavailable

39

LOCK ASSY 2

2HC-F16B0-00-00

Unavailable

40

BOLT, FLANGE

95817-06020-00

Unavailable

41

LEVER, LATCH 1

2HC-F17N1-00-00

Unavailable

42

SPRING

2HC-F1742-00-00

Unavailable

43

. PIN

90249-05801-00

$2.18

44

CIRCLIP (EU0)

99080-04600-00

$1.70

45

. ROD 2

2HC-F7248-00-00

$2.00

46

. CLIP, CABLE

2HC-F2805-00-00

$0.68

47

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

48

HINGE ASSY

BG4-F4772-00-00

Unavailable

49

NUT,PLATE

BG4-F1736-00-00

Unavailable

50

SCREW

90149-08805-00

Unavailable

51

TRIM, SIDE PANEL 2

BG4-K817J-20-00

$23.33

52

NUT, SPRING

90183-060A6-00

$3.90

53

BOLT, WITH WASHER

90119-06226-00

$2.12

54

PAD

2MB-F8378-00-00

Unavailable
