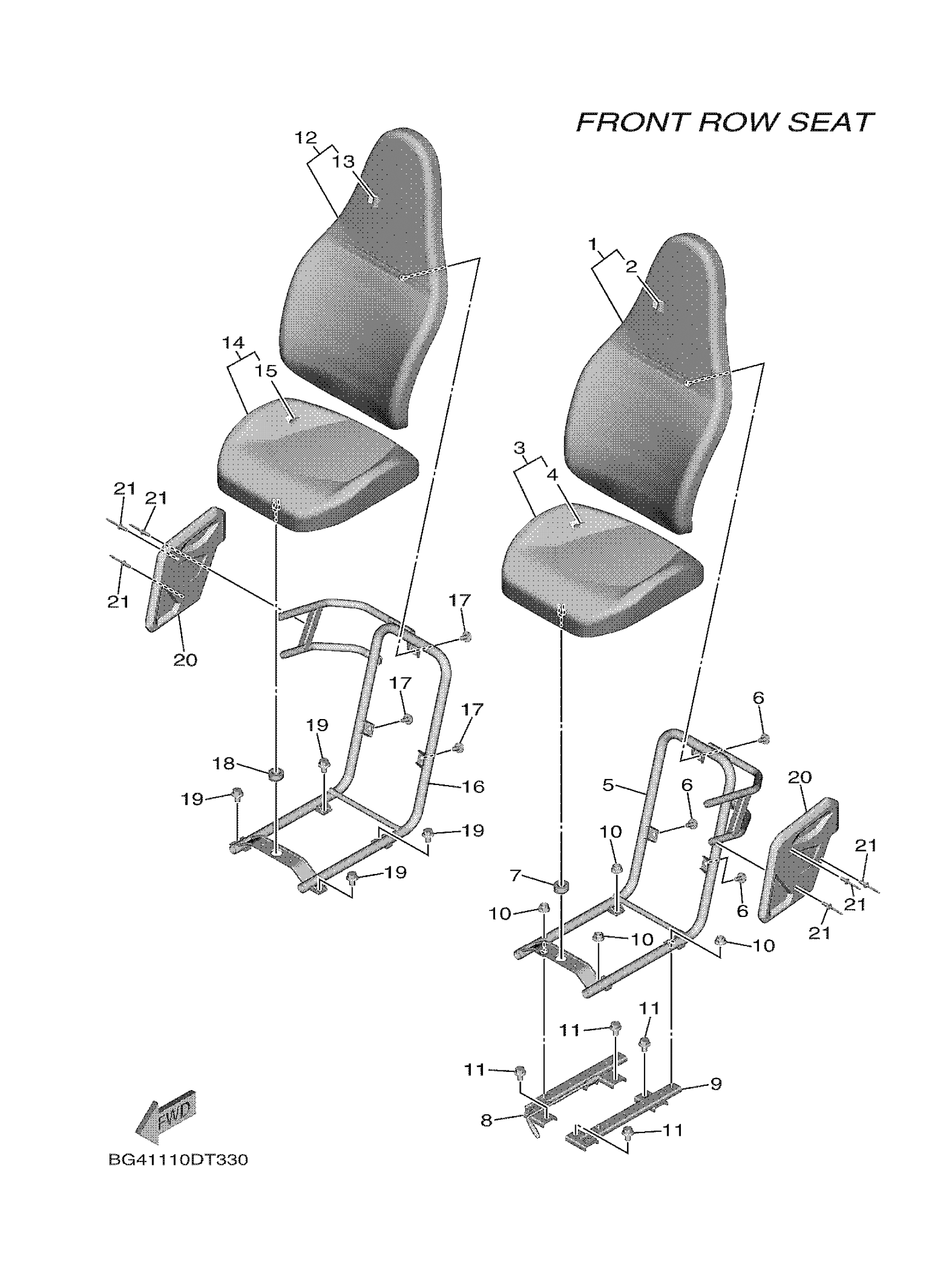

Yamaha YXF85WPSJD (WOLVERINE X4 SPECIAL EDITION) BG4A 2018 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

BG4-F4790-20-00

$199.97

2

COVER, SINGLE SEAT

BG4-F4711-20-00

$111.14

3

SEAT ASSY 2

BG4-K8420-20-00

$520.47

4

COVER, SEAT BACK

BG4-F4791-20-00

$138.82

5

FRAME, SEAT 1

BG4-F473C-01-00

$98.73

6

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

7

GROMMET

1XD-F4742-00-00

$2.96

8

ADJUSTER ASSY

BG4-F7270-00-00

$242.58

9

ADJUSTER ASSY

BG4-F7260-00-00

$198.91

10

NUT, SELF-LOCKING

95602-08200-00

$2.73

11

BOLT, FLANGE

95817-08012-00

$3.71

12

SEAT BACK ASSY

BG4-F4790-20-00

$199.97

13

COVER, SINGLE SEAT

BG4-F4711-20-00

$111.14

14

SEAT ASSY 2

BG4-K8420-20-00

$520.47

15

COVER, SEAT BACK

BG4-F4791-20-00

$138.82

16

FRAME SEAT 2

BG4-F473D-01-00

Unavailable

17

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

18

GROMMET

1XD-F4742-00-00

$2.96

19

BOLT, FLANGE

95817-08012-00

$3.71

20

COVER

BG4-F117F-00-00

Unavailable

21

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable
