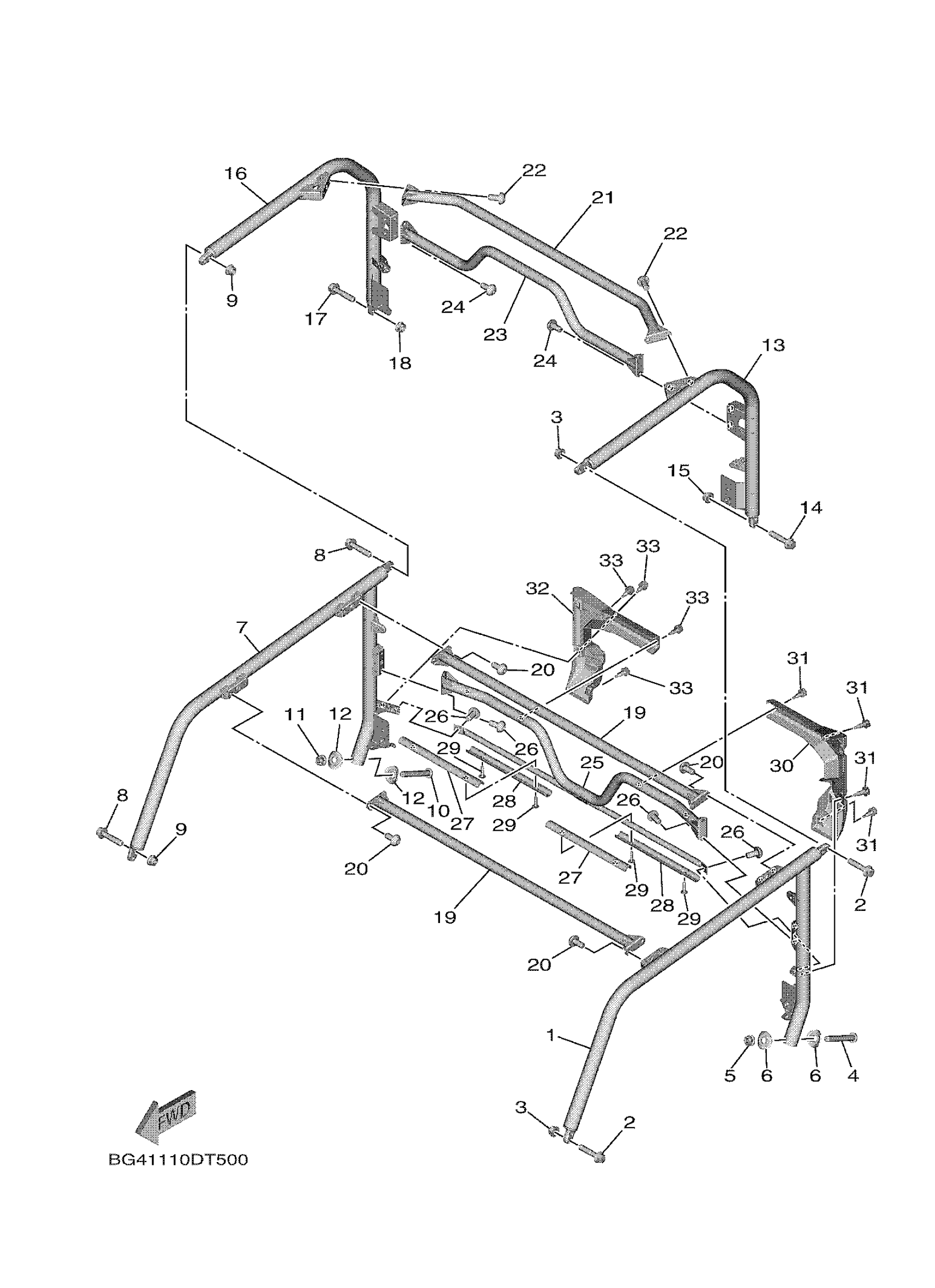

Yamaha YXF85WPSJD (WOLVERINE X4 SPECIAL EDITION) BG4A 2018 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

BG4-K831A-00-00

Unavailable

2

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

3

NUT, SELF-LOCKING

90185-10011-00

$5.60

4

BOLT, BUTTON HEAD

92012-10070-00

$3.76

5

NUT, SELF-LOCKING

90185-10011-00

$5.60

6

WASHER 2

1XD-K7526-00-00

$5.49

7

SUPPORT, ROOF 4

BG4-K831E-00-00

Unavailable

8

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

9

NUT, SELF-LOCKING

90185-10011-00

$5.60

10

BOLT, BUTTON HEAD

92012-10070-00

$3.76

11

NUT, SELF-LOCKING

90185-10011-00

$5.60

12

WASHER 2

1XD-K7526-00-00

$5.49

13

RRAME, SUNROOF 1

BG4-K833M-00-00

$206.99

14

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

15

NUT, SELF-LOCKING

90185-10011-00

$5.60

16

FRAME, SUNROOF 2

BG4-K833R-00-00

Unavailable

17

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

18

NUT, SELF-LOCKING

90185-10011-00

$5.60

19

MEMBER, ROOF FRAME

BG4-K8392-02-00

Unavailable

20

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

21

MEMBER, ROOF FRAME

BG4-K8394-00-00

Unavailable

22

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

23

ROOF SUPPORT ASSY

BG4-K830A-00-00

Unavailable

24

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

25

ROOF SUPPORT ASSY

BG4-K830B-00-00

Unavailable

26

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

27

GRIP,HAND

BG4-K8214-01-00

Unavailable

28

COVER,ASSIST GRIP

BG4-K7575-01-00

Unavailable

29

SCREW, ROUND TAPPING

90160-05012-00

Unavailable

30

COVER, SIDE PILLAR (L.H)

BG4-K813F-00-00

Unavailable

31

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

32

COVER, SIDE PILLAR (R.H)

BG4-K813G-00-00

Unavailable

33

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable
