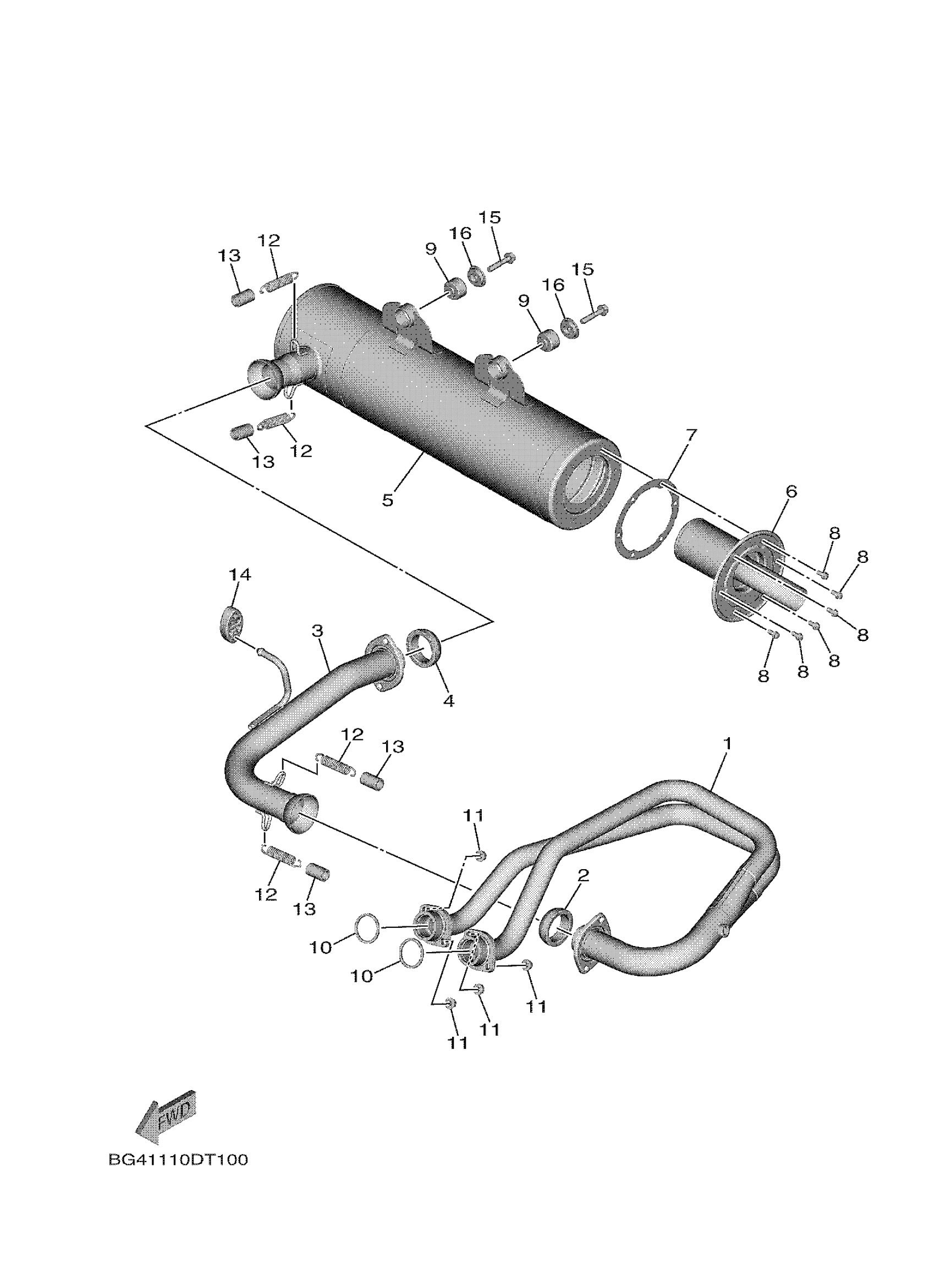

Yamaha YXF85WPSJD (WOLVERINE X4 SPECIAL EDITION) BG4A 2018 EXHAUST Diagram

Description

Price

PIPE, EXHAUST 1

BG4-E4611-00-00

$207.99

GASKET, MUFFLER

2MB-E4714-00-00

Unavailable

PIPE, EXHAUST 2

BG4-E4621-00-00

$101.99

GASKET, MUFFLER

2MB-E4714-00-00

Unavailable

MUFFLER 1

BG4-E4711-03-00

$618.99

SPARK ARRESTER ASS

BG4-E4780-01-00

$57.99

GASKET, SILENCER

2HC-14755-00-00

$22.99

BOLT, FLANGE

95022-06012-00

$3.29

DAMPER,FOOTREST

1HP-F7414-00-00

$21.99

GASKET, EXHAUST PIPE

4FM-14613-00-00

$12.99

NUT,FLANGE(J10)

95702-08500-00

$1.43

SPRING, TENSION

90506-26012-00

$13.99

PIPE, 4-3

BG4-1464K-00-00

$13.99

DAMPER, MUFFLER

5UG-14737-00-00

$16.49

BOLT, FLANGE

95817-08040-00

$7.49

WASHER

3B4-14759-01-00

Unavailable
