- YXF85WPLKL (WOLVERINE X4 SPECIAL EDITION) BG4C 2019
STEERING

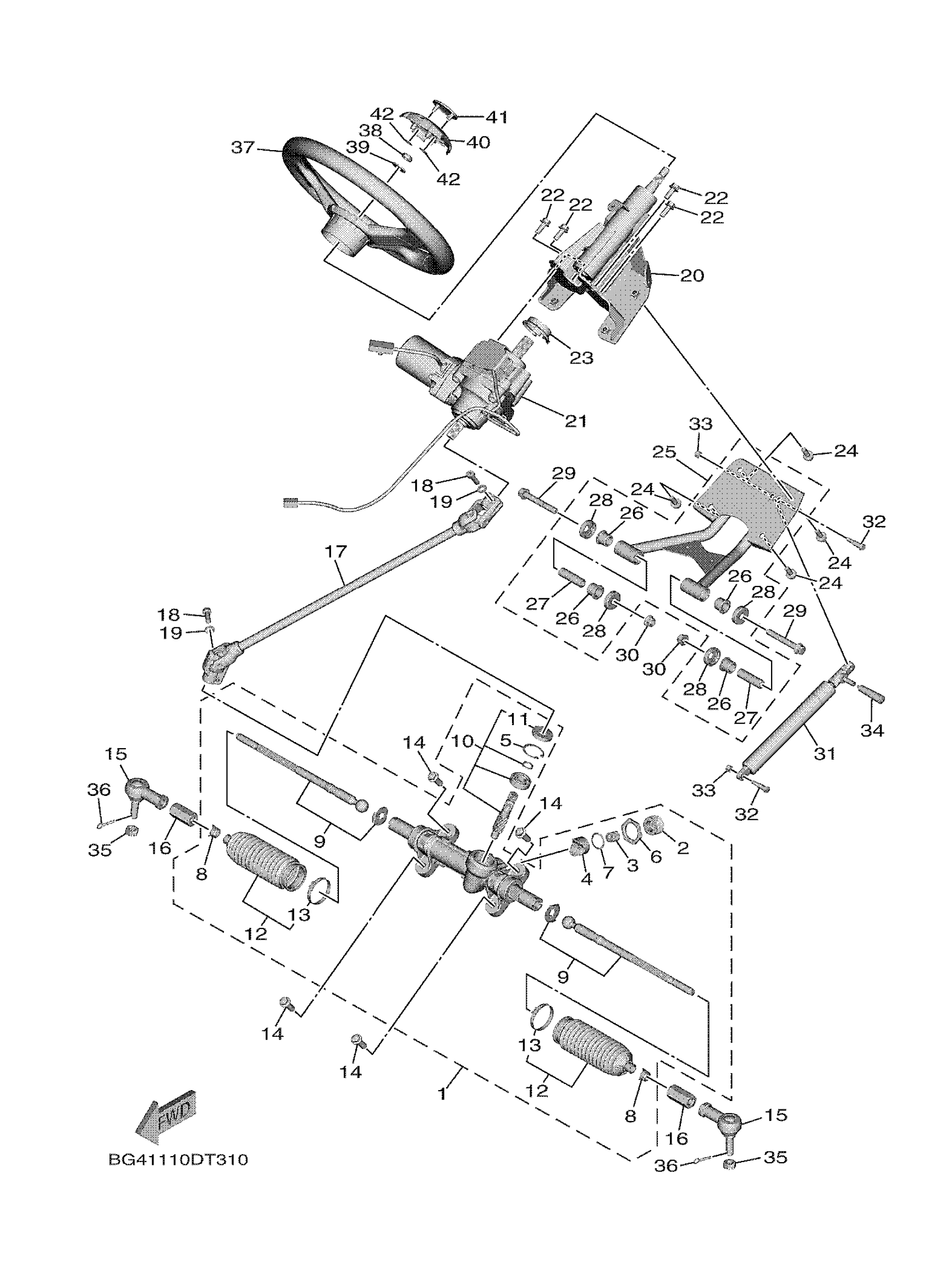

Yamaha YXF85WPLKL (WOLVERINE X4 SPECIAL EDITION) BG4C 2019 STEERING Diagram
#
1
STEERING ASY
BG4-F3400-01-00
$208.99
2
COVER,ADJUST
1XD-F387G-00-00
Unavailable
3
SPRING,PRESSURE
1XD-F387K-00-00
Unavailable
4
PAD,PRESSURE
1XD-F387F-00-00
Unavailable
5
RING,STOPPER
1XD-F387J-00-00
Unavailable
6
LOCK ASSY
1XD-F178K-00-00
Unavailable
7
WASHER
1XD-F3165-00-00
$1.92
8
CLIP
1XD-F3447-00-00
$1.92
9
RACK END SET
BG4-F38H0-00-00
Unavailable
10
STEERING PINION SET
1XD-F38G0-00-00
$40.99
11
SEAL
1XD-F3844-00-00
$4.94
12
SEAL 1 W/ BAND SET OF 2
1XD-F1208-00-00
Unavailable
13
BAND
1XD-F3489-00-00
$2.81
14
BOLT, FLANGE
90105-10348-00
Unavailable
15
JOINT, UNIVERSAL 1
B42-23841-00-00
$97.99
16
NUT 1
2PG-F3833-00-00
Unavailable
17
STEERING SHAFT ASS
2MB-F3840-01-00
Unavailable
18
BOLT, SOCKET
91317-08025-00
Unavailable
19
WASHER, PLATE(3XP)
90201-083P5-00
Unavailable
20
COLUMN, STEERING 2
BG4-23813-00-00
Unavailable
21
POWER STRG. ACTUATOR ASSY
2HC-238B0-03-00
Unavailable
22
BOLT, FLANGE
95812-08020-00
Unavailable
23
COVER, DUST
2MB-2384L-00-00
Unavailable
24
BOLT, FLANGE
95812-08020-00
Unavailable
25
TOP MOUNT COMP.
BG4-F33B0-02-00
Unavailable
26
BUSH, SOLID(3GG)
90381-15088-00
Unavailable
27
COLLAR
90387-10111-00
Unavailable
28
COVER, THRUST 1
1UY-23517-01-00
Unavailable
29
BOLT, FLANGE
90105-10267-00
Unavailable
30
NUT, S/L FLANGE
95602-10200-00
Unavailable
31
SPRING,DAMPER
BG4-F3855-01-00
Unavailable
32
BOLT
90109-06255-00
Unavailable
33
NUT, NYLON
95707-06300-00
Unavailable
34
HANDLE
BG4-F4812-01-00
Unavailable
35
NUT, CASTLE
90171-12001-00
Unavailable
36
PIN, COTTER
91490-20025-00
Unavailable
37
WHEEL,STEERING
2HC-F3838-02-00
Unavailable
38
NUT, SELF-LOCKING
90185-12008-00
Unavailable
39
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
40
COVER, STEERING
2HC-F3818-10-00
Unavailable
41
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
42
NUT, SPRING
90183-06071-00
Unavailable
