Description

Price

1

PNL, DOOR RR, LH

BG4-K8571-00-00

Unavailable

2

BODY, LATCH 1

BG4-K7171-00-00

$211.99

3

LEVER, LATCH 1

2HC-F17N1-00-00

$7.49

4

SPRING

2HC-F1742-00-00

$2.96

5

. PIN

90249-05801-00

Unavailable

6

CIRCLIP (EU0)

99080-04600-00

Unavailable

7

BOLT, WITH WASHER

90119-06226-00

$8.49

8

HINGE, SEAT 2

BG4-F4779-00-00

$25.99

9

NUT,PLATE

BG4-F1736-00-00

$7.49

10

SCREW

90149-08805-00

$1.01

11

SIDE PNL. COMP., 3

BG4-K810W-02-00

Unavailable

12

NUT, SPRING

90183-060A6-00

$5.49

13

BOLT, WITH WASHER

90119-06226-00

$8.49

14

PAD

2MB-F8378-00-00

$2.50

15

PNL. , DOOR RR. RH

BG4-K8572-00-00

$77.99

16

BODY, LATCH 2

BG4-K7172-00-00

Unavailable

17

LEVER, LATCH 1

2HC-F17N1-00-00

$7.49

18

SPRING

2HC-F1742-00-00

$2.96

19

. PIN

90249-05801-00

Unavailable

20

CIRCLIP (EU0)

99080-04600-00

Unavailable

21

BOLT, WITH WASHER

90119-06226-00

$8.49

22

HINGE, SEAT 2

BG4-F4779-00-00

$25.99

23

NUT,PLATE

BG4-F1736-00-00

$7.49

24

SCREW

90149-08805-00

$1.01

25

SIDE PNL. COMP., 4

BG4-K810X-02-00

Unavailable

26

NUT, SPRING

90183-060A6-00

$5.49

27

BOLT, WITH WASHER

90119-06226-00

$8.49

28

PAD

2MB-F8378-00-00

$2.50

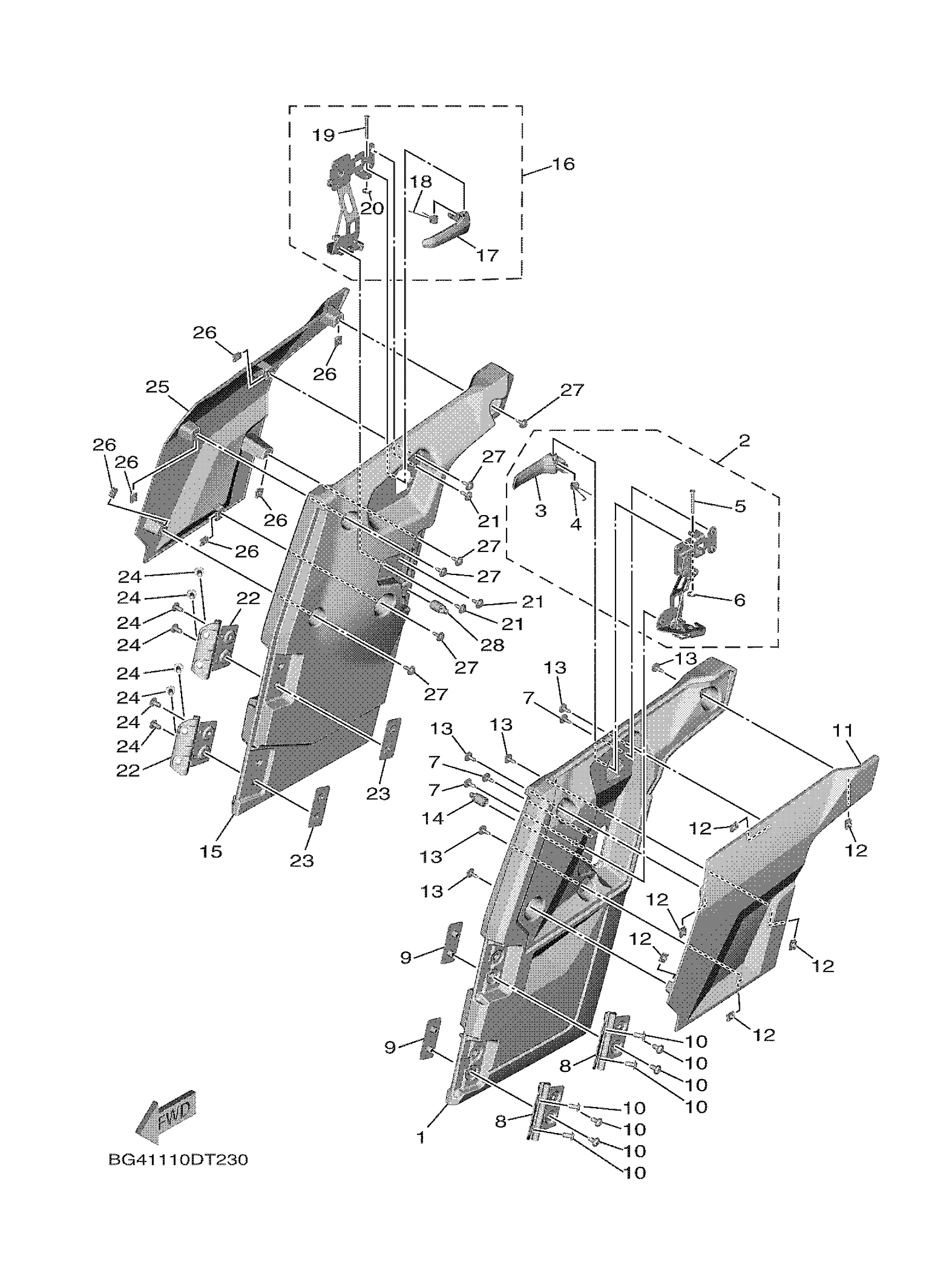

Yamaha YXF85WPLKL (WOLVERINE X4 SPECIAL EDITION) BG4C 2019 SIDE COVER 2 Diagram

PNL, DOOR RR, LH

BODY, LATCH 1

LEVER, LATCH 1

SPRING

. PIN

CIRCLIP (EU0)

BOLT, WITH WASHER

HINGE, SEAT 2

NUT,PLATE

SCREW

SIDE PNL. COMP., 3

NUT, SPRING

BOLT, WITH WASHER

PAD

PNL. , DOOR RR. RH

BODY, LATCH 2

LEVER, LATCH 1

SPRING

. PIN

CIRCLIP (EU0)

BOLT, WITH WASHER

HINGE, SEAT 2

NUT,PLATE

SCREW

SIDE PNL. COMP., 4

NUT, SPRING

BOLT, WITH WASHER

PAD
