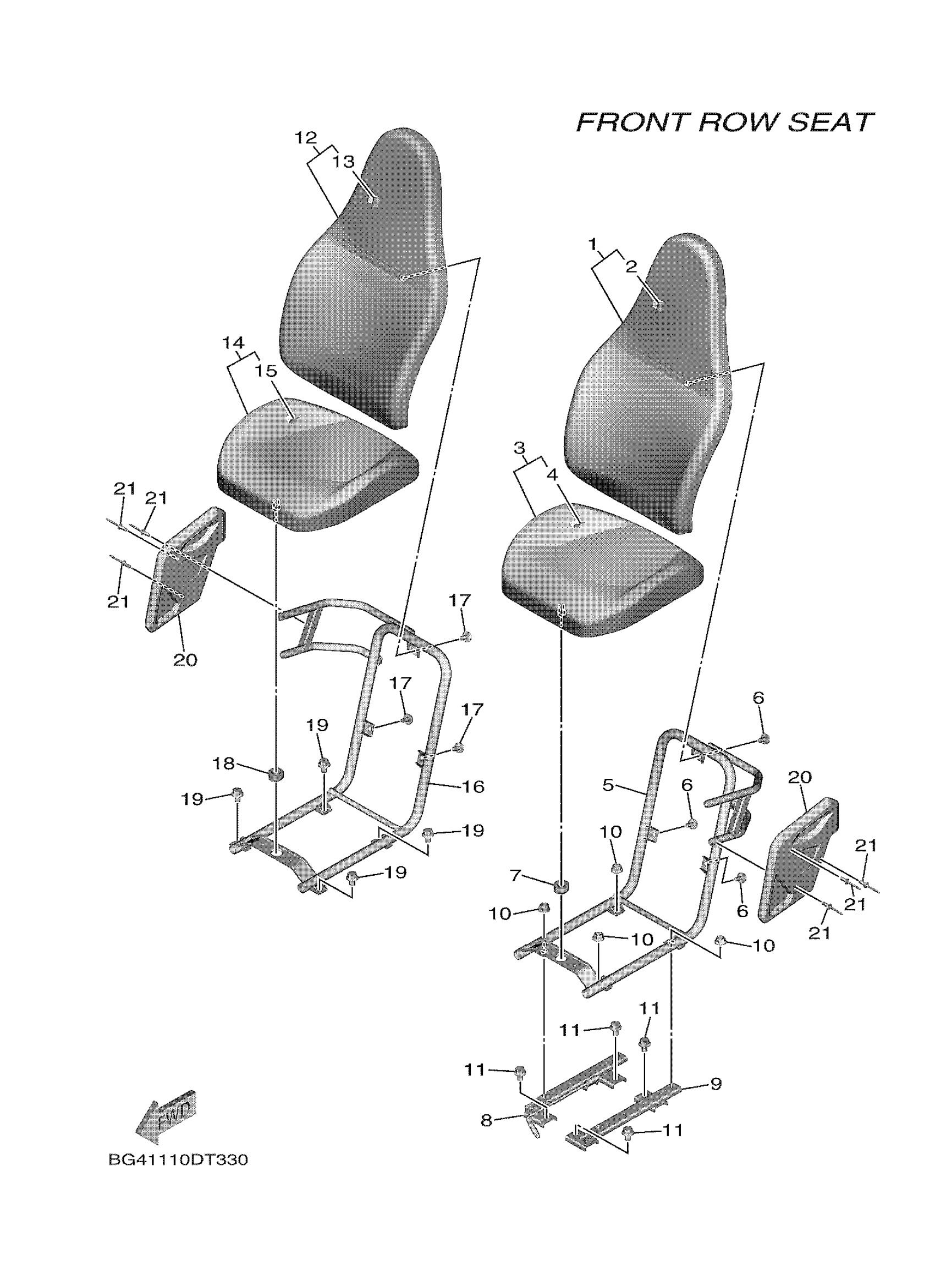

Yamaha YXF85WPLKL (WOLVERINE X4 SPECIAL EDITION) BG4C 2019 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

BG4-F4790-40-00

Unavailable

2

COVER,SINGLESEAT

BG4-F4711-41-00

$325.99

3

SEATASSY2

BG4-K8420-41-00

$593.99

4

COVER,SEATBACK

BG4-F4791-41-00

$271.99

5

FRAME, SEAT 1

BG4-F473C-01-00

Unavailable

6

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.59

7

GROMMET

1XD-F4742-00-00

$3.69

8

ADJUSTER ASSY

BG4-F7270-00-00

$228.99

9

ADJUSTER ASSY

BG4-F7260-00-00

$228.99

10

NUT, SELF-LOCKING

95602-08200-00

$3.20

11

BOLT, FLANGE

95817-08012-00

$5.49

12

SEAT BACK ASSY

BG4-F4790-40-00

Unavailable

13

COVER,SINGLESEAT

BG4-F4711-41-00

$325.99

14

SEATASSY2

BG4-K8420-41-00

$593.99

15

COVER,SEATBACK

BG4-F4791-41-00

$271.99

16

FRAME SEAT 2

BG4-F473D-01-00

Unavailable

17

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.59

18

GROMMET

1XD-F4742-00-00

$3.69

19

BOLT, FLANGE

95817-08012-00

$5.49

20

COVER

BG4-F117F-00-00

Unavailable

21

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable
