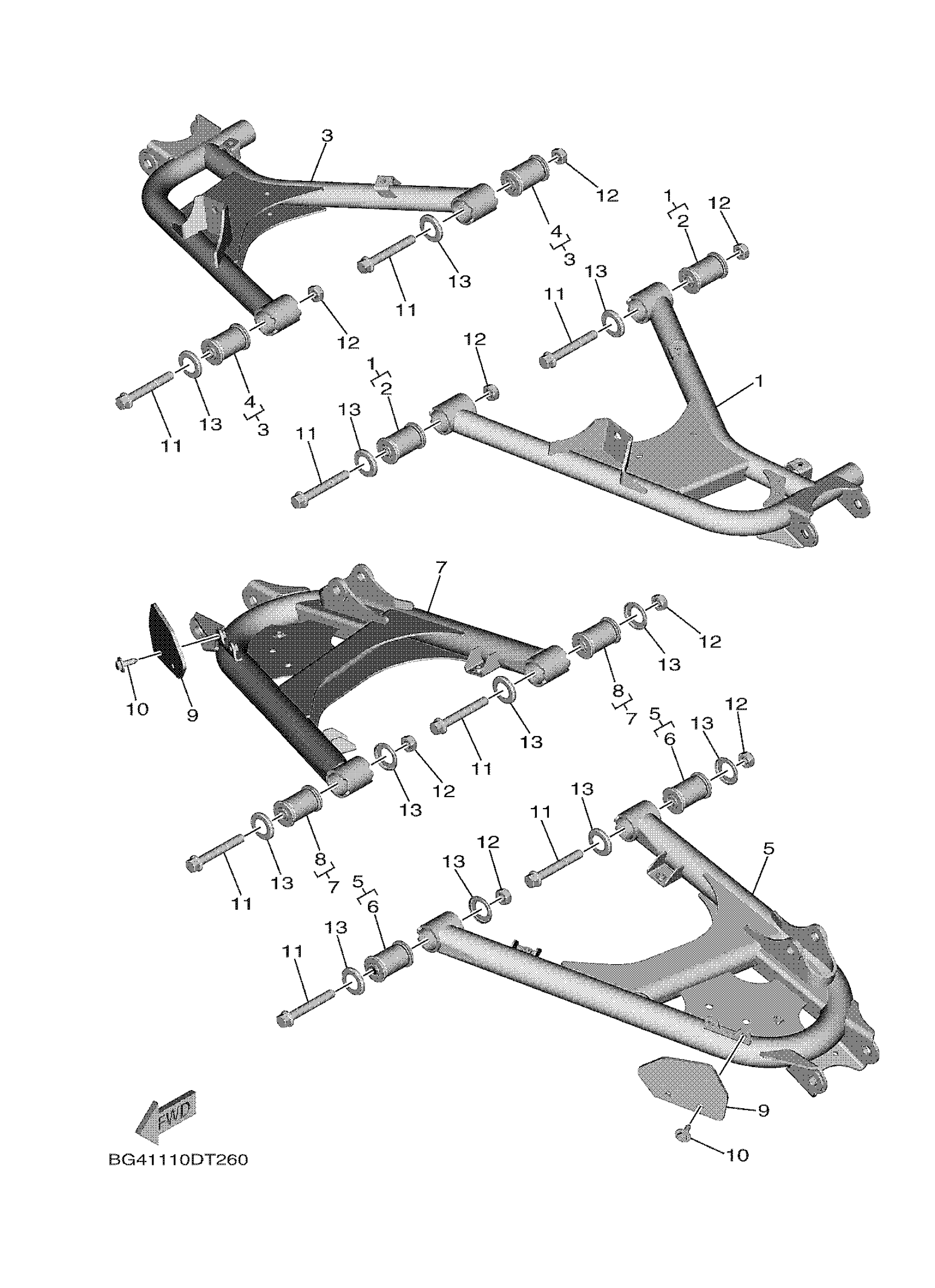

Yamaha YXF85WPLKL (WOLVERINE X4 SPECIAL EDITION) BG4C 2019 REAR ARM Diagram

#

Description
Price

1

RR. UPR. ARM COMP.

BG4-F2104-00-00

$48.59

2

BUSH

1HP-F3526-00-00

$20.42

3

RR. UPR. ARM COMP.

BG4-F2105-00-00

$60.05

4

BUSH

1HP-F3526-00-00

$20.42

5

RR. LWR. ARM COMP., 1

BG4-F2106-01-00

$50.48

6

BUSH

1HP-F3526-00-00

$20.42

7

RR. LWR. ARM COMP.

BG4-F2107-01-00

$68.09

8

BUSH

1HP-F3526-00-00

$20.42

9

COVER, THRUST 1

2HC-F2128-10-00

$1.97

10

BOLT, WITH WASHER

90119-06226-00

$2.12

11

BOLT, FLANGE

90105-10267-00

$7.23

12

NUT, SELF-LOCKING

90185-10012-00

$2.78

13

COVER, THRUST 1

BG4-F3517-00-00

$0.78
