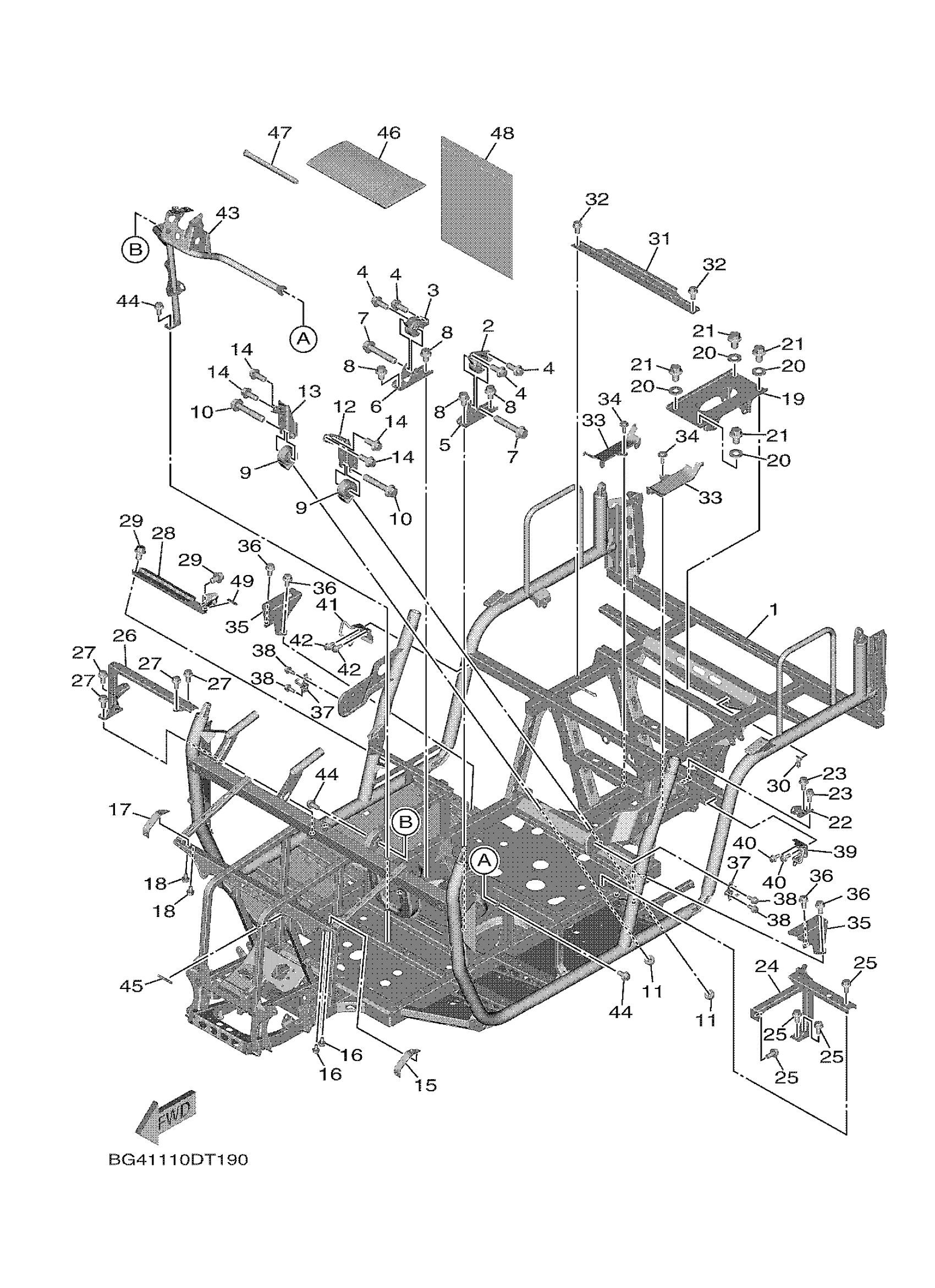

Yamaha YXF85WPLKL (WOLVERINE X4 SPECIAL EDITION) BG4C 2019 FRAME Diagram

#

Description
Price

1

FRAME COMP.

BG4-F1110-00-00

Unavailable

2

ENGINE BRACKET COMP.

BG4-21410-00-00

Unavailable

3

ENGINE BRACKET COMP. 2

BG4-21420-00-00

Unavailable

4

. BOLT, FLANGE

95812-10025-00

Unavailable

5

BRACKET 5

BG4-F161F-00-00

$12.49

6

BRACKET 3

BG4-F161A-00-00

$11.49

7

BOLT, FLANGE(JN5)

95817-12065-00

Unavailable

8

BOLT, FLANGE

95812-10016-00

$9.49

9

BRACKET, ENGINE 1

BG4-21490-00-00

$84.99

10

BOLT, FLANGE(JN5)

95817-12065-00

Unavailable

11

NUT, SELF-LOCKING

90185-10011-00

$5.60

12

SUPPORT, ENGINE

BG4-F1283-00-00

Unavailable

13

SUPT., ENGINE 2

BG4-F1284-00-00

Unavailable

14

. BOLT, FLANGE

95812-10025-00

Unavailable

15

BRACKET 1

BG4-F172K-00-00

$4.56

16

BOLT, FLANGE

95812-06010-00

Unavailable

17

BRACKET 1

BG4-F172K-00-00

$4.56

18

BOLT, FLANGE

95812-06010-00

Unavailable

19

STAY, SUPPORT 1

BG4-F831T-00-00

Unavailable

20

WASHER, PLATE

90201-12039-00

Unavailable

21

BOLT, FLANGE

95812-12020-00

Unavailable

22

BRKT., RR. AXLE

BG4-F1981-00-00

Unavailable

23

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

24

LUG, SEAT RAIL LH.

BG4-F1143-10-00

Unavailable

25

BOLT, FLANGE

90105-08867-00

Unavailable

26

MEMBER, SEAT SUPPO

BG4-F255G-01-00

Unavailable

27

BOLT, FLANGE

90105-08867-00

Unavailable

28

BRACKET, LOCK 2

BG4-F287M-00-00

Unavailable

29

BOLT, FLANGE

95817-10020-00

Unavailable

30

STAY, MUFFLER 2

BG4-F1446-00-00

Unavailable

31

PROTECTOR 1

BG4-F834V-00-00

Unavailable

32

BOLT, FLANGE

90105-08867-00

Unavailable

33

COVER 3

2MB-F198J-00-00

Unavailable

34

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

35

BRACKET, FOOTREST

BG4-F144H-00-00

Unavailable

36

BOLT, FLANGE

90105-08867-00

Unavailable

37

HOOK, SIDE COVER 1

BG4-F1331-00-00

Unavailable

38

BOLT, FLANGE

95812-06014-00

Unavailable

39

HOOK, SIDE COVER 3

BG4-F1333-00-00

Unavailable

40

BOLT, FLANGE

95812-06014-00

Unavailable

41

HOOK, SIDE COVER 4

BG4-F1334-00-00

Unavailable

42

BOLT, FLANGE

95812-06014-00

Unavailable

43

REINFORCEMENT, FRAME 1

BG4-F1986-01-00

Unavailable

44

BOLT, FLANGE

90105-08867-00

Unavailable

45

MOLD, FUEL TANK

31A-24188-01-00

Unavailable

46

TOOL KIT

BG4-F8100-00-00

Unavailable

47

GAUGE, AIR

1XD-F811A-00-00

Unavailable

48

POUCH

1P0-F8186-01-00

Unavailable

49

MOLD, FUEL TANK

3VD-24188-00-00

Unavailable
