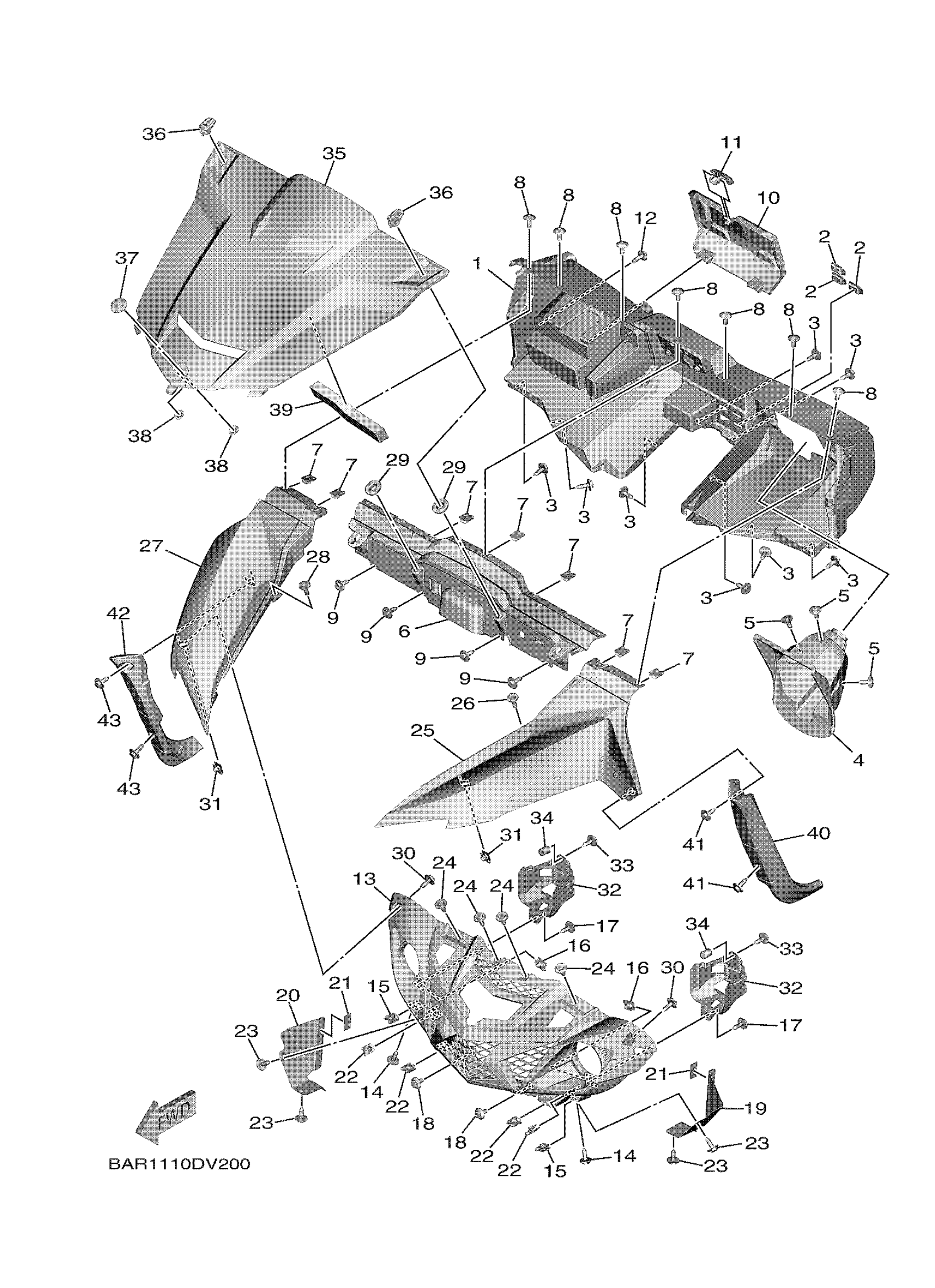

Yamaha YXF85WPHLH (WOLVERINE X4 HUNTER) BAR3 2020 FRONT FENDER Diagram
#
1
PANEL, INSTRUMENT
BG4-K7711-00-00
Unavailable
2
PLUG, HOLE
BG4-F312G-00-00
$1.64
3
BOLT, WITH WASHER
90119-06226-00
$8.49
4
COVER, STEERING
BG4-F3818-00-00
$18.99
5
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
6
COVER, FRONT
BG4-F2865-00-00
$33.99
7
NUT, SPRING
90183-060A6-00
$5.49
8
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
9
BOLT, WITH WASHER
90119-06226-00
$8.49
10
LID
BG4-F160F-00-00
$13.49
11
LOCK
F2X-U2875-00-00
Unavailable
12
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
13
GRILLE, FRONT
BG4-F8309-11-00
$85.99
14
BOLT, WITH WASHER
90119-06226-00
$8.49
15
NUT, SPRING
90183-060A6-00
$5.49
16
NUT, SPRING
90183-060A6-00
$5.49
17
BOLT, WITH WASHER
90119-06226-00
$8.49
18
BOLT
90109-06202-00
Unavailable
19
COVER 1
BG4-E246A-00-00
Unavailable
20
COVER 2
BG4-E246E-00-00
Unavailable
21
DAMPER
5UG-K7588-01-00
Unavailable
22
NUT, SPRING
90183-060A6-00
$5.49
23
BOLT, WITH WASHER
90119-06226-00
$8.49
24
BOLT, WITH WASHER
90119-06226-00
$8.49
25
FRONT FENDER COMP.
BG4-F1510-40-00
Unavailable
26
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
27
FRONT FENDER COMP.
BG4-F1501-40-00
Unavailable
28
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
29
GROMMET(4DN)
90480-01558-00
Unavailable
30
BOLT, WITH WASHER
90119-06226-00
$8.49
31
NUT, SPRING
90183-060A6-00
$5.49
32
COVER, HEADLIGHT
2UD-F838E-00-00
Unavailable
33
BOLT, WITH WASHER
90119-06226-00
$8.49
34
HOSE
90445-08029-00
Unavailable
35
HOOD ASSY 3
BG4-F197A-30-00
Unavailable
36
LEVER, LOCK
1XD-2175K-10-00
Unavailable
37
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
38
NUT, SPRING
90183-06071-00
Unavailable
39
DAMPER, PLATE
90520-50004-00
Unavailable
40
EXT,FRONT FENDER 1
BG4-K8185-01-00
Unavailable
41
BOLT, WITH WASHER
90119-06226-00
$8.49
42
EXT,FRONT FENDER 2
BG4-K8186-01-00
Unavailable
43
BOLT, WITH WASHER
90119-06226-00
$8.49
