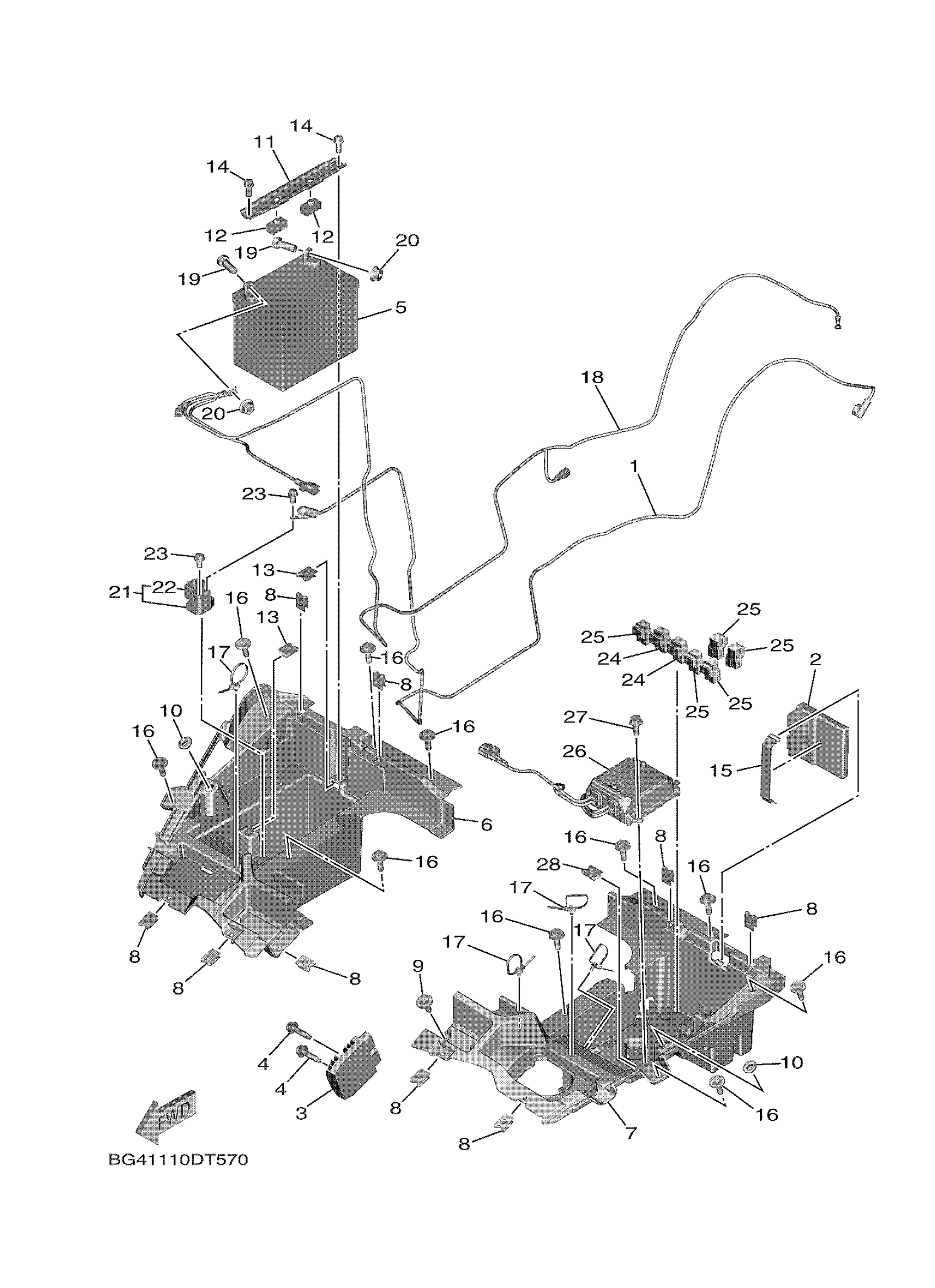

Yamaha YXF85WPHLH (WOLVERINE X4 HUNTER) BAR3 2020 ELECTRICAL 2 Diagram
#
Description
Price
1
CORD, STARTER MOTOR
BG4-81815-00-00
Unavailable
2
ENGINE CONTROL UNIT ASSY
B8K-8591A-00-00
$1,455.99
3
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
$323.99
4
BOLT, FLANGE
90105-06833-00
$2.28
5
11-U1LD GS BATTERY
11U-1LD00-00-00
Unavailable
6
BOX, BATTERY 1
BG4-H212B-00-00
$81.99
7
PANEL, SWITCH
BG4-H2565-00-00
$92.99
8
NUT, SPRING
90183-060A6-00
$5.49
9
BOLT, WITH WASHER
90119-06226-00
$8.49
10
GROMMET(4DN)
90480-01558-00
$4.19
11
BRACKET, BATTERY
2HC-H2128-00-00
$10.49
12
PAD, SEAT
3C3-24741-00-00
$9.99
13
NUT, SPRING
90183-060A6-00
$5.49
14
BOLT, FLANGE
95022-06014-00
$3.14
15
BAND, BATTERY
5JJ-82131-00-00
$13.49
16
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
17
CLAMP
1NS-F1338-00-00
Unavailable
18
WIRE, MINUS LEAD
BG4-82116-00-00
Unavailable
19
BOLT(6TD)
97080-08020-00
Unavailable
20
NUT
90179-08015-00
Unavailable
21
STARTER RELAY ASSY (RC19-080A)
5B4-81940-00-00
Unavailable
22
FUSE (10A)
42X-82151-00-00
Unavailable
23
BOLT, FLANGE
95022-06008-00
Unavailable
24
RELAY ASSY
5DM-81950-01-00
Unavailable
25
RELAY ASSY (8DM-11)
8DM-81950-11-00
Unavailable
26
POWER STRG. CONT. UNIT ASSY
BAR-859A0-00-00
Unavailable
27
BOLT, FLANGE
95817-06016-00
Unavailable
28
NUT, SPRING
90183-060A6-00
$5.49
