- YXF85WPHLH (WOLVERINE X4 HUNTER) BAR3 2020
CRANKSHAFT PISTON

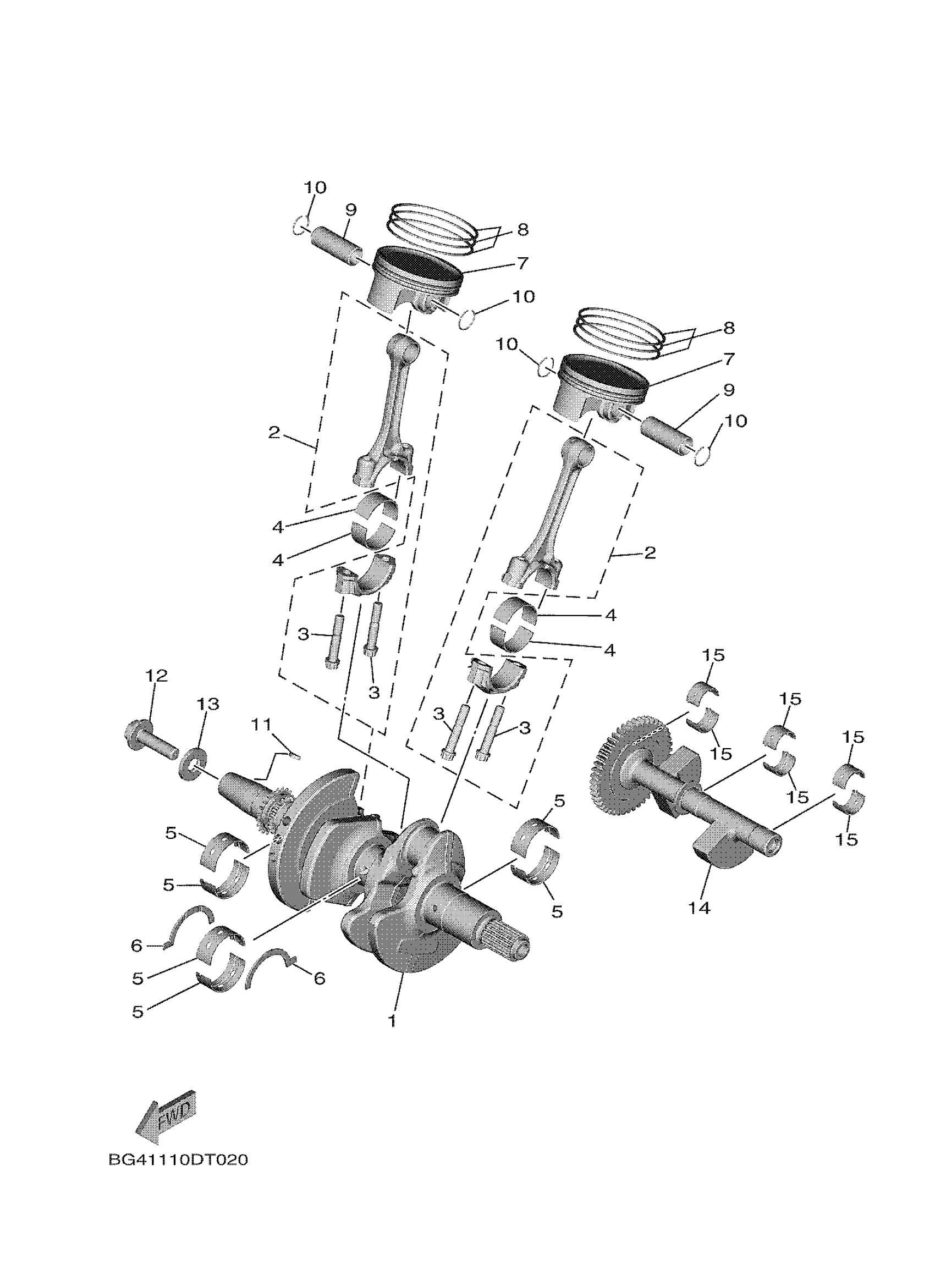

Yamaha YXF85WPHLH (WOLVERINE X4 HUNTER) BAR3 2020 CRANKSHAFT PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSY
B4D-11400-00-00
$570.99
2
CONNECTING ROD ASSY
BG4-11650-00-00
$156.99
3
BOLT, CONNECTING ROD
5PX-11654-00-00
$7.99
4
PLANE BEARING, CONNECTING ROD
5JW-11656-00-00
$13.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-10-00
$13.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-20-00
$13.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-30-00
$14.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-40-00
$13.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-50-00
$11.99
5
PLANE BEARING, CRANKSHAFT 1
23P-11416-00-00
$19.99
5
PLANE BEARING, CRANKSHAFT 1
23P-11416-10-00
Unavailable
5
PLANE BEARING, CRANKSHAFT 1
23P-11416-20-00
$22.99
5
PLANE BEARING, CRANKSHAFT 1
23P-11416-30-00
$22.99
5
PLANE BEARING, CRANKSHAFT 1
23P-11416-40-00
$19.99
6
BEARING, THRUST 1
BG4-11426-00-00
$13.99
7
PISTON (STD)
BG4-E1631-00-00
Unavailable
8
PISTON RING SET (STD)
B4D-E1603-00-00
Unavailable
9
PIN, PISTON
2HC-11633-00-00
Unavailable
10
CIRCLIP (26H)
93450-19095-00
Unavailable
11
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
12
BOLT, UNION
90401-12003-00
Unavailable
13
WASHER (838)
90201-12191-00
Unavailable
14
BALANCER ASSY
B4D-E1500-00-00
Unavailable
15
PLANE BEARING, BALANCE WEIGHT
2S3-11413-00-00
Unavailable
15
PLANE BEARING, BALANCE WEIGHT
2S3-11413-10-00
Unavailable
15
PLANE BEARING, BALANCE WEIGHT
2S3-11413-20-00
Unavailable
15
PLANE BEARING, BALANCE WEIGHT
2S3-11413-30-00
Unavailable
15
PLANE BEARING, BALANCE WEIGHT
2S3-11413-40-00
Unavailable
