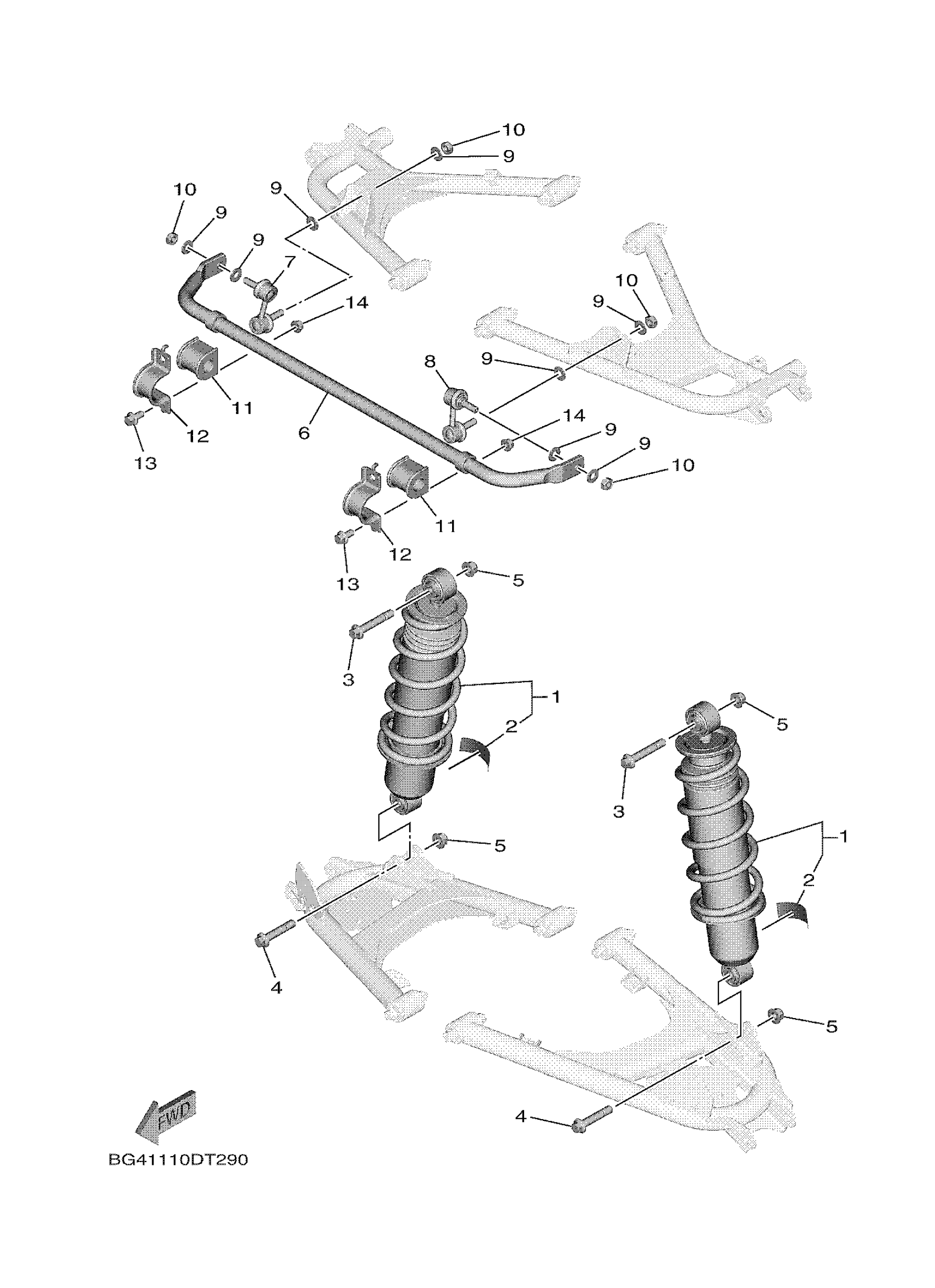

Yamaha YXF85WPHJH (WOLVERINE X4 HUNTER) BG48 2018 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

BG4-F2200-31-00

Unavailable

2

LABEL,WARNING

1HP-F2259-01-00

$15.89

3

BOLT, FLANGE

90105-12056-00

$8.84

4

BOLT, FLANGE

90105-12055-00

$9.99

5

NUT, SELF-LOCKING

90185-12009-00

$6.75

6

BAR, STABILIZER

BG4-G7491-02-00

$101.44

7

JOINT, STABILIZER 1

16B-2385L-10-00

$59.51

8

JOINT, STABILIZER 2

16B-2385M-10-00

$60.41

9

WASHER, PLATE

90201-10035-00

$3.33

10

NUT, SELF-LOCKING

90185-10012-00

$2.78

11

BUSH, STABILIZER F

1XD-F386G-00-00

Unavailable

12

COVER, STABILIZER

1XD-F386H-00-00

$6.79

13

BOLT, FLANGE

95817-10020-00

$4.89

14

NUT, SELF-LOCKING

90185-10011-00

$3.67
