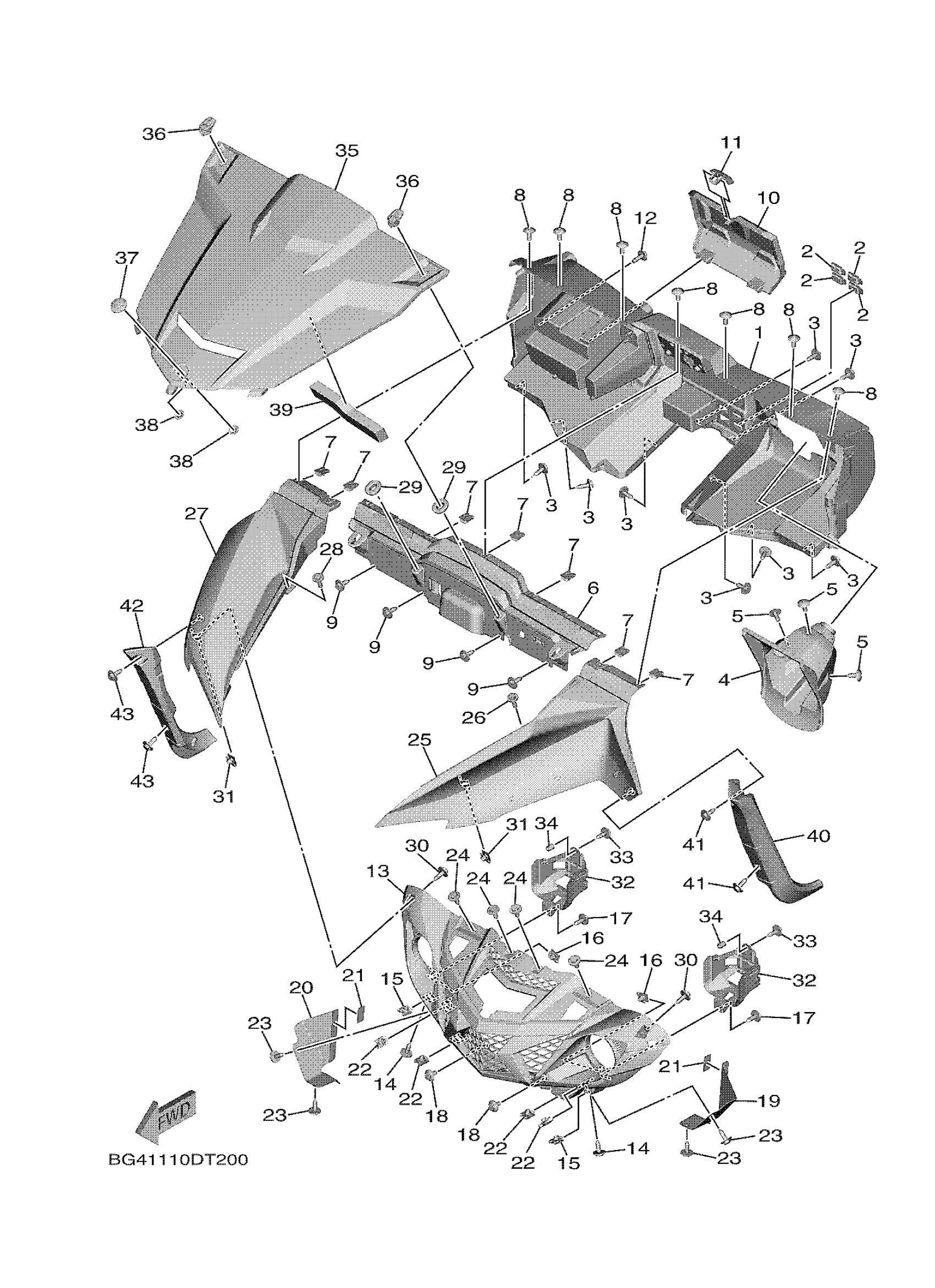

Yamaha YXF85WPHJH (WOLVERINE X4 HUNTER) BG48 2018 FRONT FENDER Diagram
#
Description
Price
1
PANEL, INSTRUMENT
BG4-K7711-00-00
Unavailable
5
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
8
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
11
LOCK
F2X-U2875-00-00
Unavailable
12
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
18
BOLT
90109-06202-00
Unavailable
19
COVER 1
BG4-E246A-00-00
Unavailable
20
COVER 2
BG4-E246E-00-00
Unavailable
21
DAMPER
5UG-K7588-01-00
Unavailable
25
FRONT FENDER COMP.
BG4-F1510-10-00
Unavailable
26
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
27
FRONT FENDER COMP.
BG4-F1501-10-00
Unavailable
28
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
29
GROMMET(4DN)
90480-01558-00
Unavailable
32
COVER, HEADLIGHT
2UD-F838E-00-00
Unavailable
34
HOSE
90445-08029-00
Unavailable
35
HOOD ASSY 3
BG4-F197A-10-00
Unavailable
36
LEVER, LOCK
1XD-2175K-10-00
Unavailable
37
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
38
NUT, SPRING
90183-06071-00
Unavailable
39
DAMPER, PLATE
90520-50004-00
Unavailable
40
EXT,FRONT FENDER 1
BG4-K8185-01-00
Unavailable
42
EXT,FRONT FENDER 2
BG4-K8186-01-00
Unavailable
