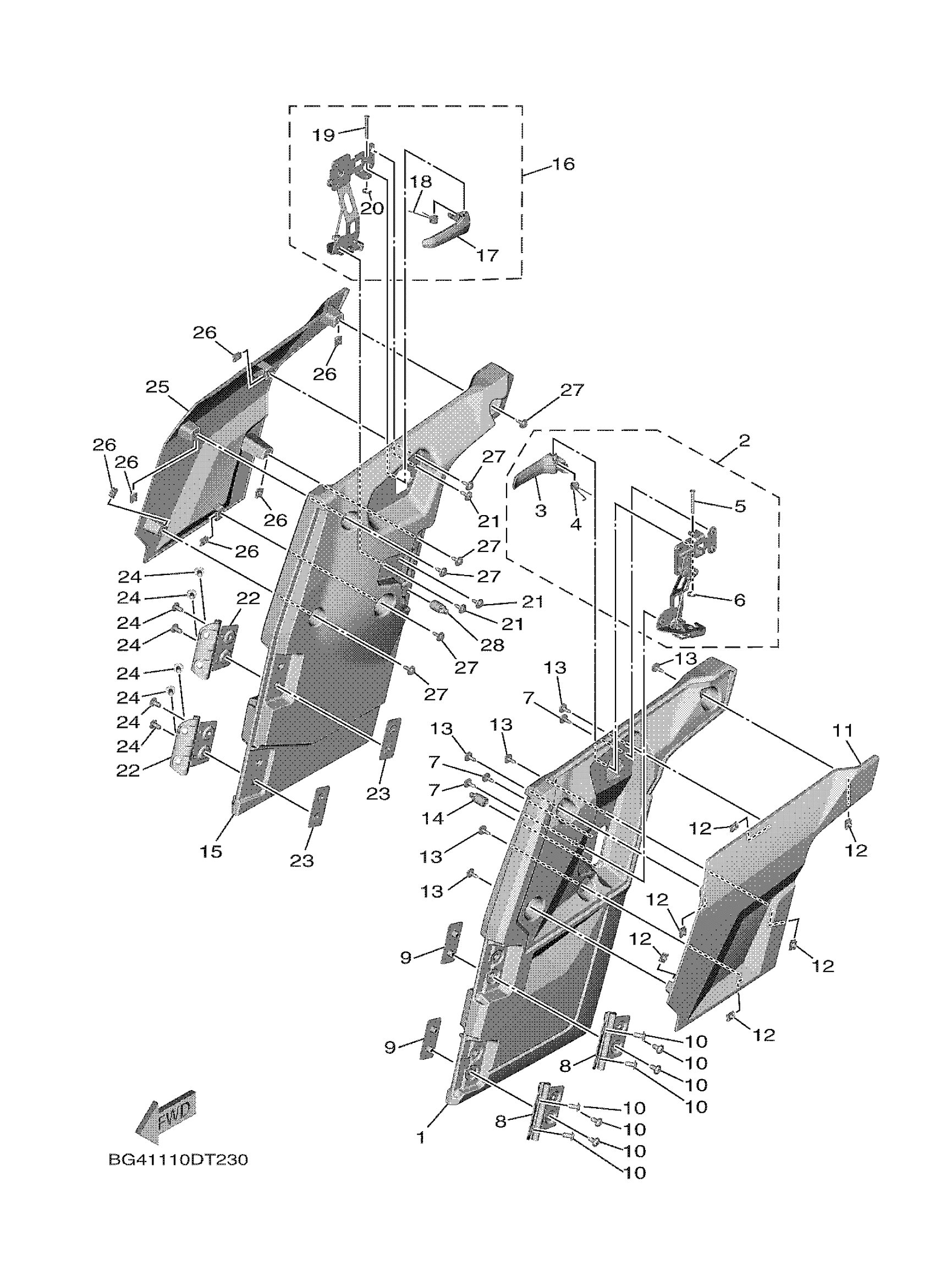

Yamaha YXF85WPBLL (WOLVERINE X4) BAR7 2020 SIDE COVER 2 Diagram
#
Description
Price
1
PNL, DOOR RR, LH
BG4-K8571-00-00
Unavailable
2
BODY, LATCH 1
BG4-K7171-00-00
$211.99
3
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
4
SPRING
2HC-F1742-00-00
$2.96
5
. PIN
90249-05801-00
Unavailable
6
CIRCLIP (EU0)
99080-04600-00
Unavailable
7
BOLT, WITH WASHER
90119-06226-00
$8.49
8
HINGE, SEAT 2
BG4-F4779-00-00
$25.99
9
NUT,PLATE
BG4-F1736-00-00
$7.49
10
SCREW
90149-08805-00
$1.01
11
TRIM, SIDE PANEL 3
BG4-K817K-10-00
Unavailable
12
NUT, SPRING
90183-060A6-00
$5.49
13
BOLT, WITH WASHER
90119-06226-00
$8.49
14
PAD
2MB-F8378-00-00
$2.50
15
PNL. , DOOR RR. RH
BG4-K8572-00-00
$77.99
16
BODY, LATCH 2
BG4-K7172-00-00
Unavailable
17
LEVER, LATCH 1
2HC-F17N1-00-00
$7.49
18
SPRING
2HC-F1742-00-00
$2.96
19
. PIN
90249-05801-00
Unavailable
20
CIRCLIP (EU0)
99080-04600-00
Unavailable
21
BOLT, WITH WASHER
90119-06226-00
$8.49
22
HINGE, SEAT 2
BG4-F4779-00-00
$25.99
23
NUT,PLATE
BG4-F1736-00-00
$7.49
24
SCREW
90149-08805-00
$1.01
25
TRIM, SIDE PANEL 4
BG4-K817L-10-00
Unavailable
26
NUT, SPRING
90183-060A6-00
$5.49
27
BOLT, WITH WASHER
90119-06226-00
$8.49
28
PAD
2MB-F8378-00-00
$2.50
