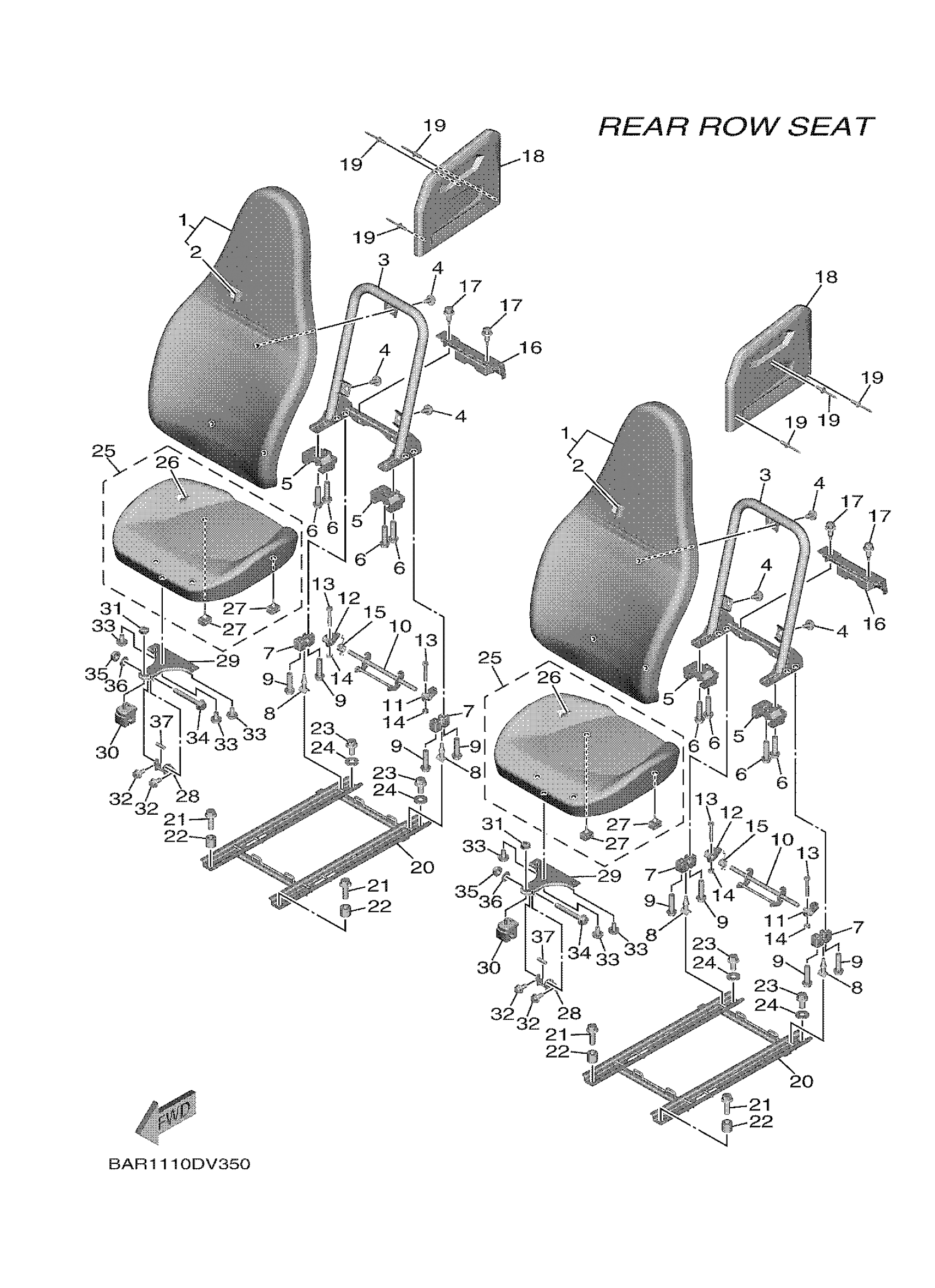

Yamaha YXF85WPBLL (WOLVERINE X4) BAR7 2020 SEAT 3 Diagram

#

Description
Price

1

SEAT BACK ASSY

BAR-F4790-02-00

$238.09

2

COVER, SINGLE SEAT

BAR-F4711-01-00

$226.15

3

FRAME, SEAT 3

BG4-F473Y-01-00

$44.68

4

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

5

SLIDER

BG4-F386R-01-00

$4.87

6

BOLT, FLANGE

95022-08025-00

$6.22

7

DAMPER, LOCATING 1

BG4-F1778-10-00

$67.64

8

DAMPER,SEAT

BAR-F4723-01-00

$0.77

9

BOLT, FLANGE

95022-08030-00

$3.12

10

LATCH ASY

BG4-K7180-01-00

$19.83

11

CAM, 1

BG4-F2231-00-00

$121.26

12

CAM, 2

BG4-F2232-00-00

$114.67

13

BOLT

97022-05030-00

$0.70

14

NUT, HEXAGON (663)

95380-05600-00

$6.08

15

SEAT, SPRING

BG4-F4424-00-00

$6.27

16

COVER, HANDLE UPPE

BG4-F6143-01-00

Unavailable

17

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

18

COVER,2

BG4-F475X-00-00

Unavailable

19

RIVET, BLIND(EU0,USA)

90267-489U9-00

Unavailable

20

SEAT RAIL ASSY 1

BG4-F110B-00-00

Unavailable

21

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

22

COLLAR (437)

90387-08258-00

Unavailable

23

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

24

WASHER, PLATE

90201-08048-00

Unavailable

25

SEAT ASSY

BAR-F4700-00-00

Unavailable

26

. COVER, SEAT

BAR-F4731-00-00

$156.26

27

DAMPER 1

BG4-F221F-00-00

Unavailable

28

BRACKET, HINGE

BG4-F114B-00-00

Unavailable

29

HINGE,SEAT

BG4-F4726-00-00

Unavailable

30

RUBBER, DAMPING

BG4-F5915-01-00

Unavailable

31

NUT, S/L FLANGE

95607-05200-00

Unavailable

32

BOLT, FLANGE

95817-06012-00

Unavailable

33

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

34

BOLT, FLANGE

95817-06050-00

Unavailable

35

NUT, SELF-LOCKING

95617-06100-00

Unavailable

36

WASHER, PLATE

90201-06557-00

Unavailable

37

COLLAR

90387-068S4-00

Unavailable
