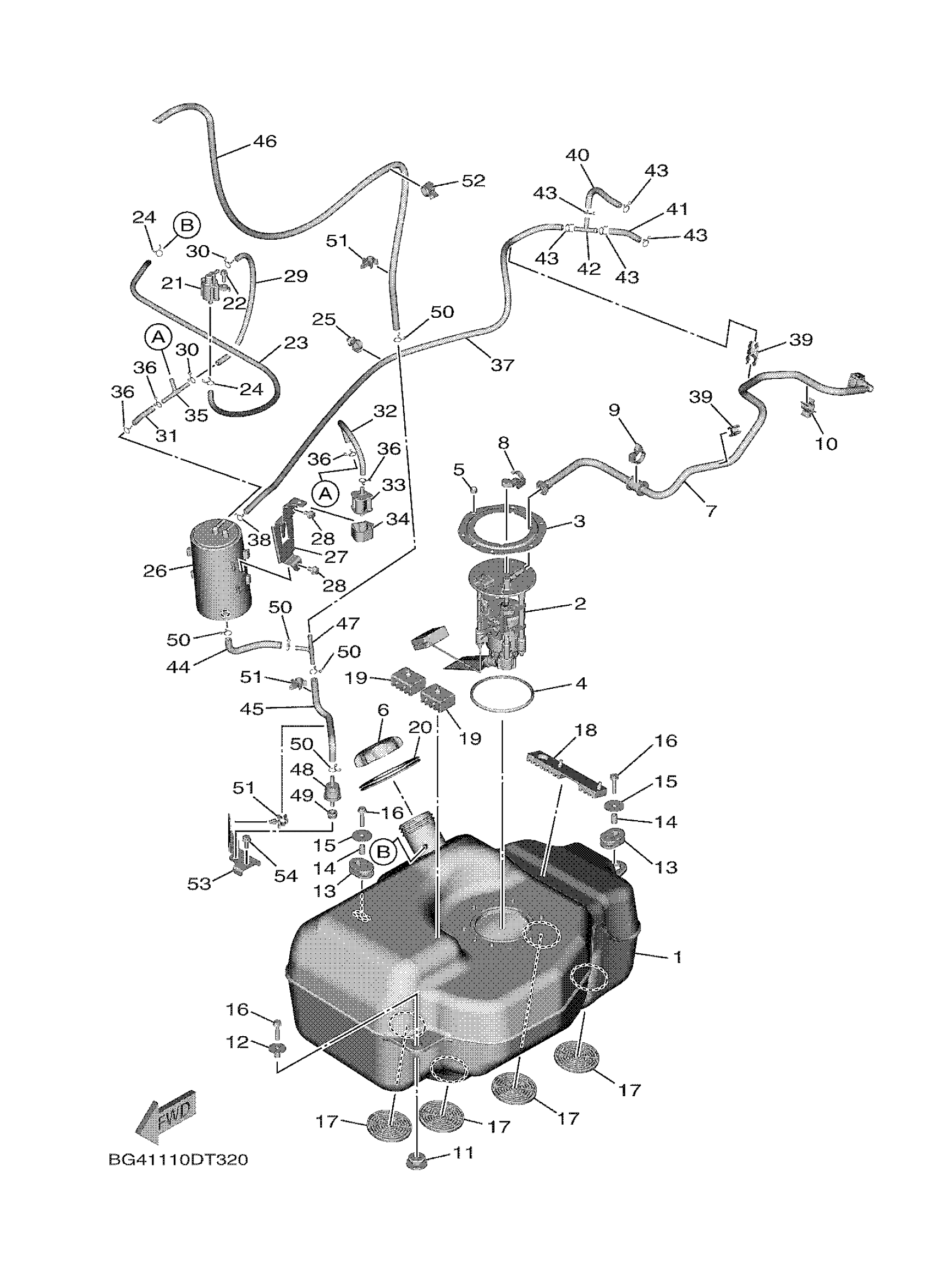

Yamaha YXF85WPBLL (WOLVERINE X4) BAR7 2020 FUEL TANK Diagram
#
1
FUEL TANK COMP.
BG4-F4110-01-00
Unavailable
2
Fuel Pump Comp
3B4-13907-13-00
$317.99
3
BRACKET, FUEL PUMP
3B4-24491-00-00
Unavailable
4
O-RING
1S3-24486-00-00
$17.49
5
NUT (J17)
95380-06800-00
$8.49
6
CAP ASSY
BKP-24610-00-00
$31.99
7
PIPE, FUEL 1
BG4-13971-01-00
Unavailable
8
CLAMP
90464-14004-00
$7.49
9
CLAMP
90464-20010-00
$3.23
10
CLAMP
90464-12015-00
$0.74
11
GROMMET
90480-18016-00
$8.49
12
COLLAR
90387-07021-00
$7.49
13
GROMMET(38W)
90480-01400-00
$13.49
14
COLLAR(2UJ)
90387-061V1-00
$8.49
15
WASHER (23T)
90201-065G8-00
$8.49
16
BOLT, FLANGE
95817-06030-00
Unavailable
17
DAMPER, LOCATING 1
2MB-F4181-00-00
Unavailable
18
DAMPER, LOCATING 1
2HC-F4181-00-00
Unavailable
19
DAMPER, LOCATING 2
2MB-F4182-00-00
Unavailable
20
COVER, FUEL INLET
BG4-K8272-00-00
Unavailable
21
PIPE JOINT ASSY
28P-24380-00-00
Unavailable
22
BOLT, FLANGE
95022-06014-00
Unavailable
23
HOSE (L810)
90445-09046-00
Unavailable
24
CLIP
90467-090A2-00
Unavailable
25
CLAMP
90464-12830-00
Unavailable
26
CANISTER ASSY
7CC-F4170-11-00
Unavailable
27
CANISTER HOLDER AS
BG4-F4190-00-00
Unavailable
28
BOLT, FLANGE
95812-06010-00
Unavailable
29
HOSE (L260)
90445-09045-00
Unavailable
30
CLIP
90467-090A2-00
Unavailable
31
HOSE (L54)
90445-09043-00
Unavailable
32
HOSE (L200)
90445-09044-00
Unavailable
33
PIPE JOINT ASSY
3B4-24380-11-00
Unavailable
34
BAND 1
3B4-24398-00-00
Unavailable
35
WAY (70R)
90413-08012-00
Unavailable
36
CLIP
90467-090A2-00
Unavailable
37
HOSE (L1050)
90445-10062-00
Unavailable
38
CLIP
90467-090A2-00
Unavailable
39
CLAMP
90464-11005-00
Unavailable
40
HOSE
90445-10829-00
Unavailable
41
HOSE (L65)
90445-10061-00
Unavailable
42
WAY 3 (10L)
90413-07007-00
Unavailable
43
CLIP
90467-100A1-00
Unavailable
44
PIPE 5
BG4-24315-00-00
Unavailable
45
PIPE 11
BG4-24322-00-00
Unavailable
46
HOSE (L1010)
90445-11100-00
Unavailable
47
WAY (70R)
90413-08012-00
Unavailable
48
VALVE, CHECK 1
BG4-24362-00-00
Unavailable
49
GROMMET
90480-10003-00
Unavailable
50
CLIP
90467-100A1-00
Unavailable
51
CLAMP
90464-14M55-00
Unavailable
52
CLAMP
90464-16006-00
Unavailable
53
BRACKET 1
BG4-F148U-00-00
Unavailable
54
BOLT, FLANGE
90105-06831-00
Unavailable
