- YXF85WPBLL (WOLVERINE X4) BAR7 2020
FRONT SUSPENSION WHEEL

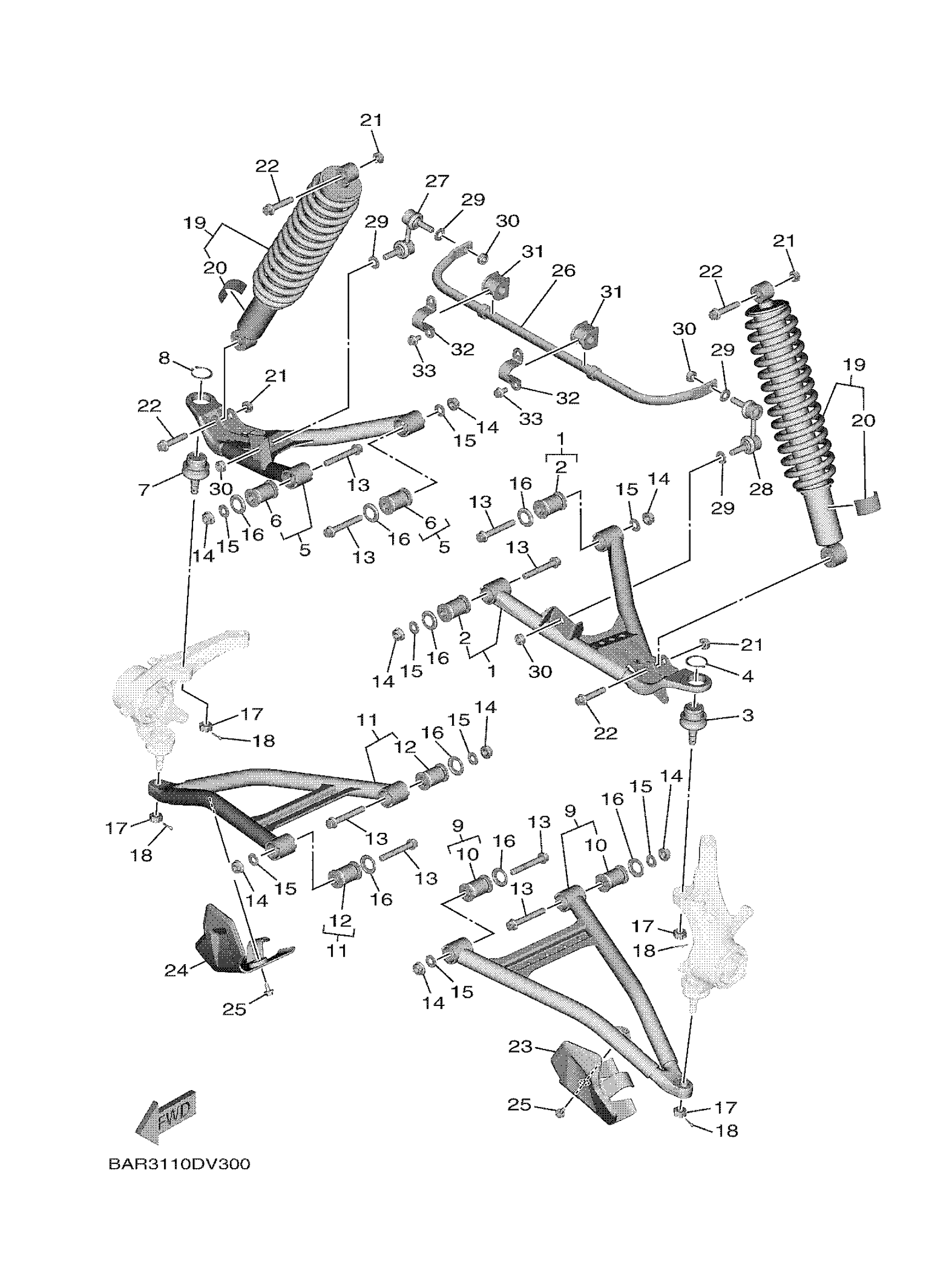

Yamaha YXF85WPBLL (WOLVERINE X4) BAR7 2020 FRONT SUSPENSION WHEEL Diagram
#
1
FRONT UPPER ARM CO
BAR-F3540-02-00
$92.99
2
BUSH
BAR-F3526-00-00
$97.99
3
BALL JOINT 2
1XD-23579-00-00
$76.99
4
CIRCLIP
93410-32075-00
$9.49
5
FRONT UPPER ARM CO
BAR-F3550-02-00
$92.99
6
BUSH
BAR-F3526-00-00
$97.99
7
BALL JOINT 2
1XD-23579-00-00
$76.99
8
CIRCLIP
93410-32075-00
$9.49
9
FRONT LOWER ARM CO
BAR-F3570-01-00
$87.99
10
BUSH
BAR-F3526-00-00
$97.99
11
FRONT LOWER ARM CO
BAR-F3580-01-00
$87.99
12
BUSH
BAR-F3526-00-00
$97.99
13
BOLT, FLANGE
90105-12095-00
$9.49
14
NUT, SELF-LOCKING
90185-12002-00
$12.49
15
WASHER, PLATE
90201-12045-00
$5.60
16
COVER, THRUST 1
BAR-F3517-00-00
Unavailable
17
NUT, CASTLE
90171-12001-00
Unavailable
18
PIN, COTTER
91490-25020-00
Unavailable
19
SHOCK ABSORBER ASS
BG4-F3390-30-00
Unavailable
20
LABEL,WARNING
1HP-F2259-01-00
Unavailable
21
NUT, SELF-LOCKING
90185-10012-00
Unavailable
22
BOLT, FLANGE
90105-10283-00
Unavailable
23
COVER, UNDER 1
2MB-F3123-01-00
Unavailable
24
COVER, UNDER 2
2MB-F3133-01-00
Unavailable
25
BOLT, WITH WASHER
90119-06152-00
Unavailable
26
BAR, STABILIZER FR
BG4-F386E-00-00
Unavailable
27
JOINT, STABILIZER 1
16B-2385L-10-00
Unavailable
28
JOINT, STABILIZER 2
16B-2385M-10-00
Unavailable
29
WASHER, PLATE
90201-10035-00
Unavailable
30
NUT, SELF-LOCKING
90185-10012-00
Unavailable
31
BUSH
BAR-F376B-00-00
Unavailable
32
BRKT., STABILIZER
BG4-F386B-00-00
Unavailable
33
BOLT, FLANGE
95817-08014-00
Unavailable
