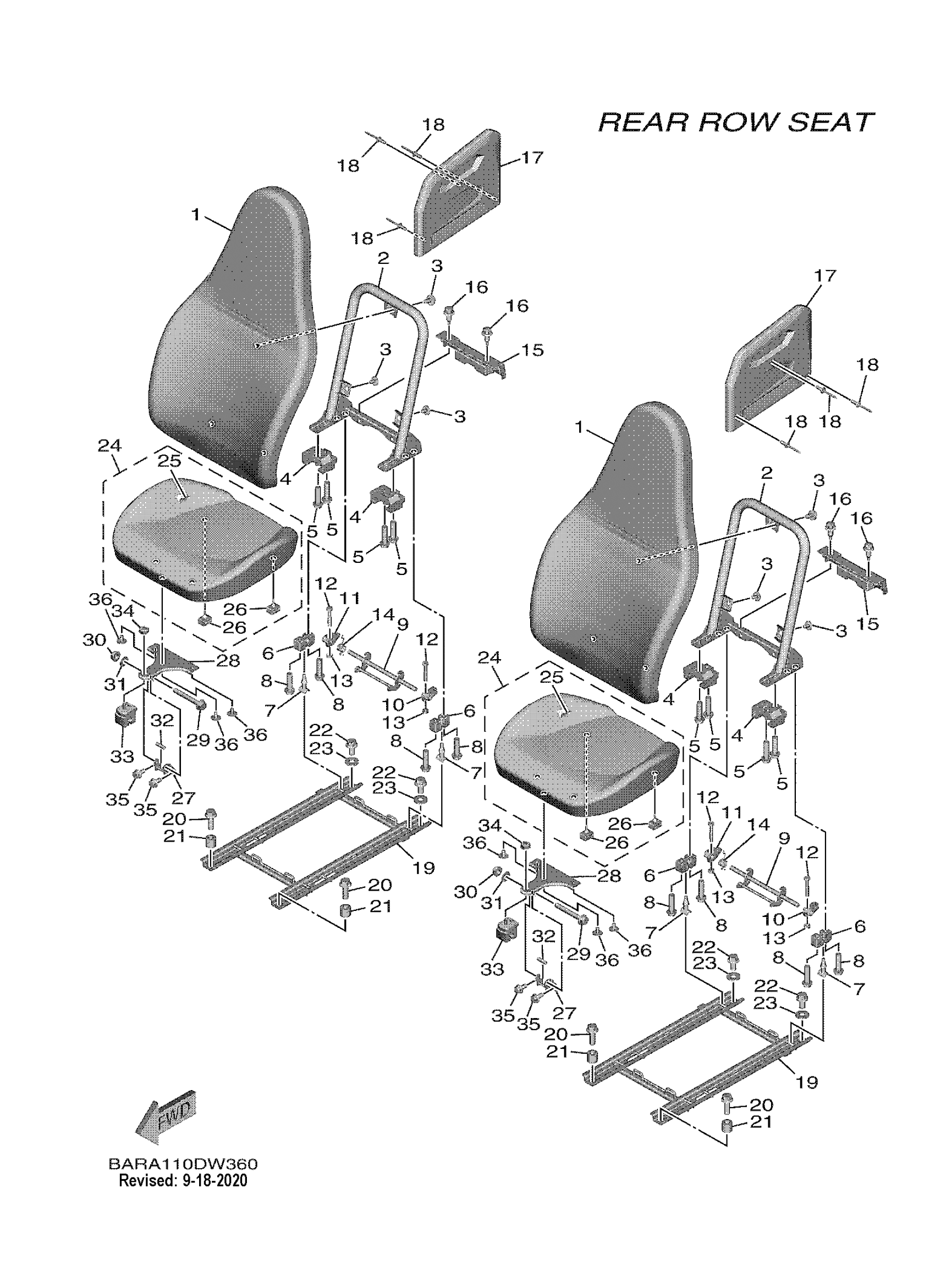

Yamaha YXF85WPAMS (WOLVERINE X4 EPS) BARE 2021 SEAT 3 Diagram

#

Description
Price

1

SEAT BACK ASSY

BAR-F4790-02-00

$265.99

2

FRAME, SEAT 3

BG4-F473Y-01-00

$63.99

3

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

4

SLIDER

BG4-F386R-01-00

$7.49

5

BOLT, FLANGE

95022-08025-00

$8.49

6

DAMPER, LOCATING 1

BG4-F1778-10-00

$101.99

7

DAMPER,SEAT

BAR-F4723-01-00

$1.16

8

BOLT, FLANGE

95022-08030-00

$3.88

9

LATCH ASY

BG4-K7180-01-00

$23.99

10

CAM, 1

BG4-F2231-00-00

$181.99

11

CAM, 2

BG4-F2232-00-00

$174.99

12

BOLT

97022-05030-00

$1.12

13

NUT, HEXAGON (663)

95380-05600-00

$8.49

14

SEAT, SPRING

BG4-F4424-00-00

$8.49

15

COVER, HANDLE UPPE

BG4-F6143-01-00

$199.99

16

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

17

COVER,2

BG4-F475X-00-00

Unavailable

18

RIVET, BLIND(J50)

90267-49152-00

Unavailable

19

SEAT RAIL ASSY 1

BG4-F110B-00-00

Unavailable

20

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

21

COLLAR (437)

90387-08258-00

Unavailable

22

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

23

WASHER, PLATE

90201-08048-00

Unavailable

24

SEAT ASSY

BAR-F4700-01-00

Unavailable

25

COVER, SEAT

BAR-F4731-01-00

Unavailable

26

DAMPER 1

BG4-F221F-00-00

Unavailable

27

BRACKET, HINGE

BG4-F114B-00-00

Unavailable

28

HINGE,SEAT

BG4-F4726-00-00

Unavailable

29

BOLT, FLANGE

95817-06050-00

Unavailable

30

NUT, SELF-LOCKING

95617-06100-00

Unavailable

31

WASHER, PLATE

90201-06557-00

Unavailable

32

COLLAR

90387-068S4-00

Unavailable

33

RUBBER, DAMPING

BG4-F5915-01-00

Unavailable

34

NUT, S/L FLANGE

95607-05200-00

Unavailable

35

BLOT, FLANGE DEEP RECESS

95D32-06012-00

Unavailable

36

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02
