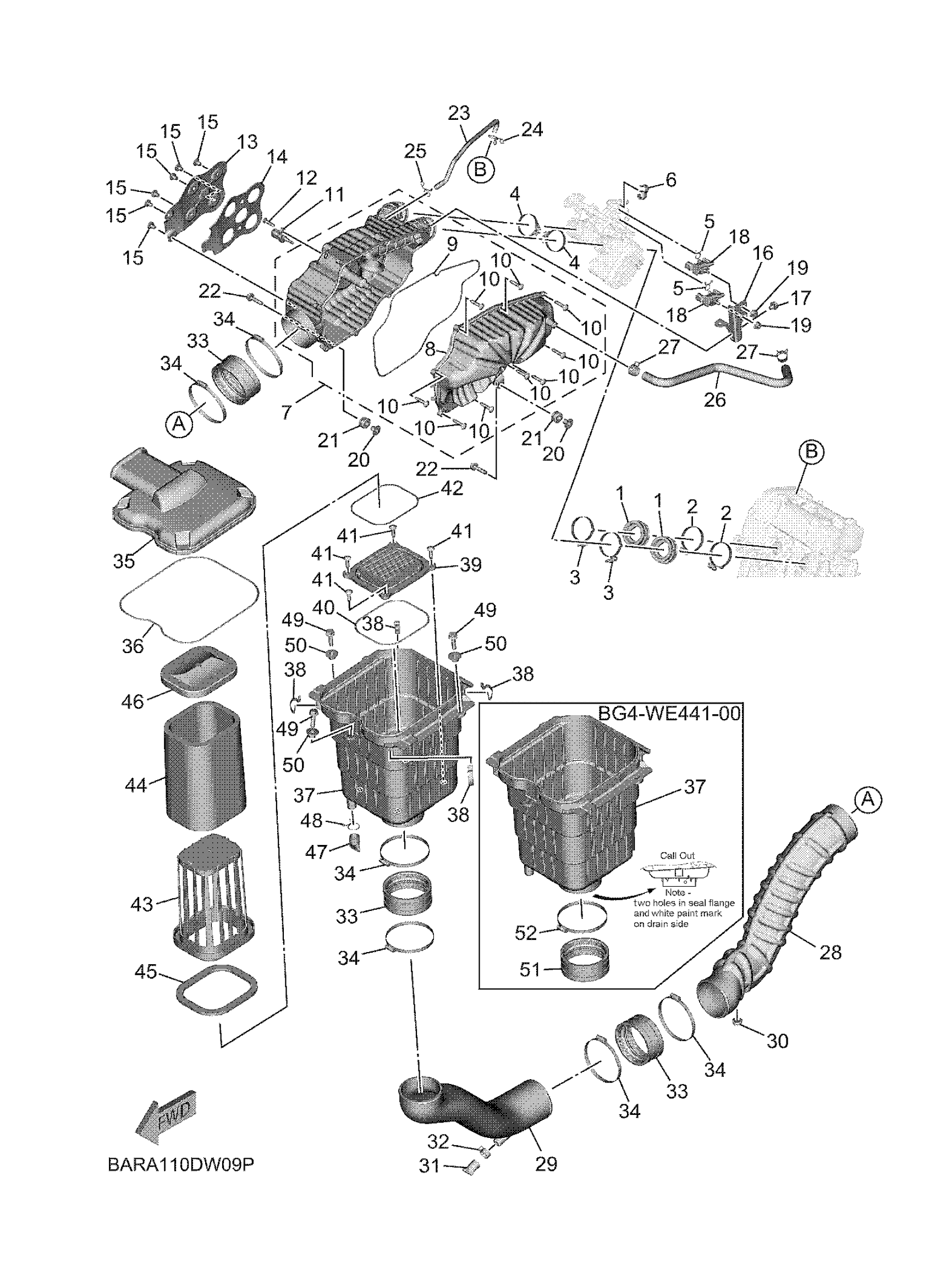

Yamaha YXF85WPAMS (WOLVERINE X4 EPS) BARE 2021 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

BG4-13586-00-00

$20.99

2

HOSE CLAMP ASSY

90450-56011-00

$13.99

3

HOSE CLAMP ASSY

90450-56013-00

Unavailable

4

HOSE CLAMP ASSY

90450-50005-00

Unavailable

5

CLIP

90467-100A1-00

$7.49

6

CLAMP(6M7)

90464-09M31-00

$8.49

7

SILENCER ASSY, INT

BG4-E4440-00-00

$123.99

8

SILENCER, INTAKE 1

BG4-E4431-00-00

$11.49

9

SEAL

BG4-E4467-00-00

$4.29

10

SCREW, TRUSS TAP.

97707-50025-00

$8.49

11

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$60.99

12

SCREW, PANHEAD TAPPING

97702-50520-00

$0.43

13

PLATE

BG4-E4477-00-00

$11.49

14

DAMPER

BG4-E4409-00-00

$4.88

15

SCREW, BIND(2TV)

98980-06008-00

$3.19

16

STAY 1

BG4-E4493-00-00

Unavailable

17

BOLT, FLANGE

95812-06008-00

Unavailable

18

SOLENOID VALVE ASSY

BG4-86120-00-00

Unavailable

19

NUT, FLANGE

95702-06500-00

Unavailable

20

COLLAR

90387-06199-00

Unavailable

21

GROMMET(4FM)

90480-12596-00

Unavailable

22

BOLT, FLANGE

95822-06025-00

Unavailable

23

PIPE, BREATHER 1

BG4-11166-00-00

Unavailable

24

CLIP

90467-100A1-00

$7.49

25

CLIP (4X4)

90467-12052-00

Unavailable

26

PIPE, OIL TANK BRE

BG4-F1745-00-00

Unavailable

27

CLIP(34X)

90467-22097-00

Unavailable

28

DUCT

BG4-E4437-01-00

Unavailable

29

DUCT

BG4-E443A-03-00

Unavailable

30

GROMMET(4FU)

90480-13567-00

Unavailable

31

SEAL

59V-14457-00-00

Unavailable

32

CLIP

90467-220A0-00

Unavailable

33

SEAL

BG4-E4476-10-00

Unavailable

34

HOSE CLAMP ASSY

90450-99806-00

Unavailable

35

CAP, CLEANER CASE

BG4-E4412-00-00

Unavailable

36

SEAL

BG4-E4452-00-00

Unavailable

37

CASE, AIR CLEANER 1

BG4-E4411-10-00

Unavailable

37

AIR CLEANER CASE COMPLETE

BG4-WE441-00-00

Unavailable

38

CLIP, CAP FITTING

B16-E4424-00-00

Unavailable

39

ELEMENT, AIR CLEAN

BG4-E4461-00-00

Unavailable

40

SEAL

BG4-E4462-00-00

Unavailable

41

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

42

SEAL

BG4-E4457-00-00

Unavailable

43

GUIDE

BG4-E4458-00-00

Unavailable

44

ELEMENT, AIR CLEAN

BG4-E4451-00-00

Unavailable

45

DAMPER 1

BG4-E4425-00-00

Unavailable

46

CAP, CLEANER CASE

BG4-E4422-00-00

Unavailable

47

PIPE, DRAIN

B16-E443E-00-00

Unavailable

48

CLIP

90467-220A1-00

Unavailable

49

BOLT, FLANGE

90105-06833-00

Unavailable

50

COLLAR (4N0)

90387-071E0-00

Unavailable

51

SEAL

B4J-14239-00-00

Unavailable

52

HOSE CLAMP ASSY

90450-99018-00

Unavailable
