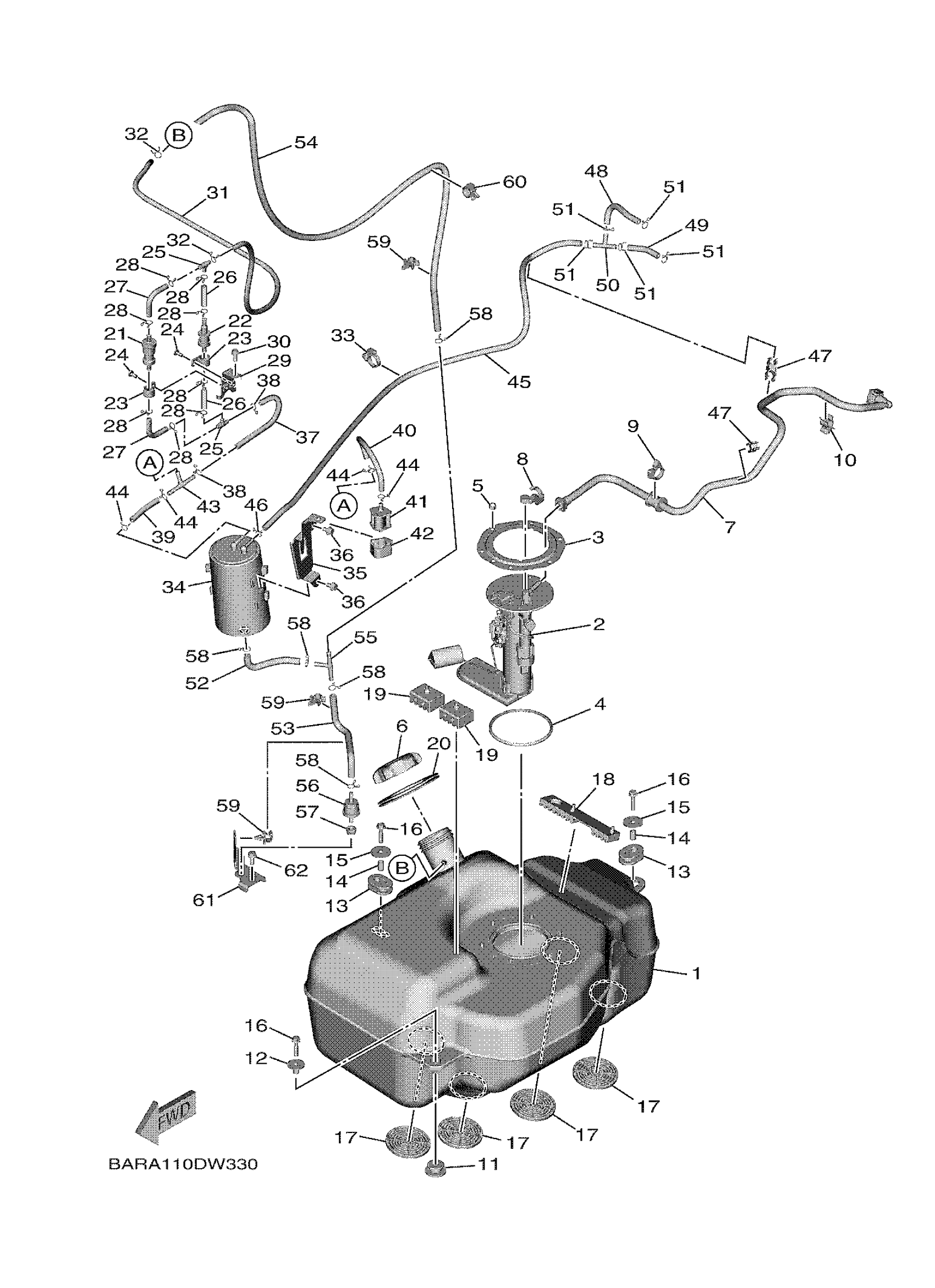

Yamaha YXF85WPAMS (WOLVERINE X4 EPS) BARE 2021 FUEL TANK Diagram
#
1
FUEL TANK COMP.
BG4-F4110-01-00
Unavailable
2
FUEL PUMP COMP.
B4J-13907-00-00
$367.99
3
BRACKET, FUEL PUMP
3B4-24491-00-00
Unavailable
4
O-RING
1S3-24486-00-00
$17.49
5
NUT (J17)
95380-06800-00
$8.49
6
CAP ASSY
BKP-24610-00-00
$31.99
7
PIPE, FUEL 1
BG4-13971-01-00
Unavailable
8
CLAMP
90464-14004-00
$7.49
9
CLAMP
90464-20010-00
$3.23
10
CLAMP
90464-12015-00
$0.74
11
GROMMET
90480-18016-00
$8.49
12
COLLAR
90387-07021-00
$7.49
13
GROMMET(38W)
90480-01400-00
$13.49
14
COLLAR(2UJ)
90387-061V1-00
$8.49
15
WASHER (23T)
90201-065G8-00
$8.49
16
BOLT, FLANGE
95817-06030-00
Unavailable
17
DAMPER, LOCATING 1
2MB-F4181-00-00
Unavailable
18
DAMPER, LOCATING 1
2HC-F4181-00-00
Unavailable
19
DAMPER, LOCATING 2
2MB-F4182-00-00
Unavailable
20
COVER, FUEL INLET
BG4-K8272-00-00
Unavailable
21
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
22
ROLL OVER VALVE ASSY
25H-24180-00-00
Unavailable
23
CLAMP
90464-15014-00
Unavailable
24
SCREW, BINDING
98907-05012-00
Unavailable
25
WAY 3
90413-06031-00
Unavailable
26
HOSE
90445-09832-00
Unavailable
27
TUBE
2HC-F4864-00-00
Unavailable
28
CLIP
90467-090A2-00
Unavailable
29
BRACKET, CANISTOR
BAR-F419F-02-00
Unavailable
30
BOLT, FLANGE
95022-06012-00
Unavailable
31
HOSE (L850)
90445-09131-00
Unavailable
32
CLIP
90467-090A2-00
Unavailable
33
CLAMP
90464-20010-00
$3.23
34
CANISTER ASSY
7CC-F4170-02-00
Unavailable
35
CANISTER HOLDER AS
BG4-F4190-00-00
Unavailable
36
BOLT, FLANGE
95812-06010-00
Unavailable
37
HOSE (L200)
90445-09044-00
Unavailable
38
CLIP
90467-090A2-00
Unavailable
39
HOSE (L54)
90445-09043-00
Unavailable
40
HOSE (L200)
90445-09044-00
Unavailable
41
PIPE JOINT ASSY
3B4-24380-11-00
Unavailable
42
BAND 1
3B4-24398-00-00
Unavailable
43
WAY (70R)
90413-08012-00
Unavailable
44
CLIP
90467-090A2-00
Unavailable
45
HOSE (L1050)
90445-10062-00
Unavailable
46
CLIP
90467-090A2-00
Unavailable
47
CLAMP
90464-11005-00
Unavailable
48
HOSE
90445-10829-00
Unavailable
49
HOSE (L65)
90445-10061-00
Unavailable
50
WAY 3 (10L)
90413-07007-00
Unavailable
51
CLIP
90467-100A1-00
Unavailable
52
PIPE 5
BG4-24315-00-00
Unavailable
53
PIPE 11
BG4-24322-00-00
Unavailable
54
HOSE (L1010)
90445-11100-00
Unavailable
55
WAY (70R)
90413-08012-00
Unavailable
56
VALVE, CHECK 1
BG4-24362-00-00
Unavailable
57
GROMMET
90480-10003-00
Unavailable
58
CLIP
90467-100A1-00
Unavailable
59
CLAMP
90464-14M55-00
Unavailable
60
CLAMP
90464-16006-00
Unavailable
61
BRACKET 1
BG4-F148U-00-00
Unavailable
62
BOLT, FLANGE
90105-06831-00
Unavailable
