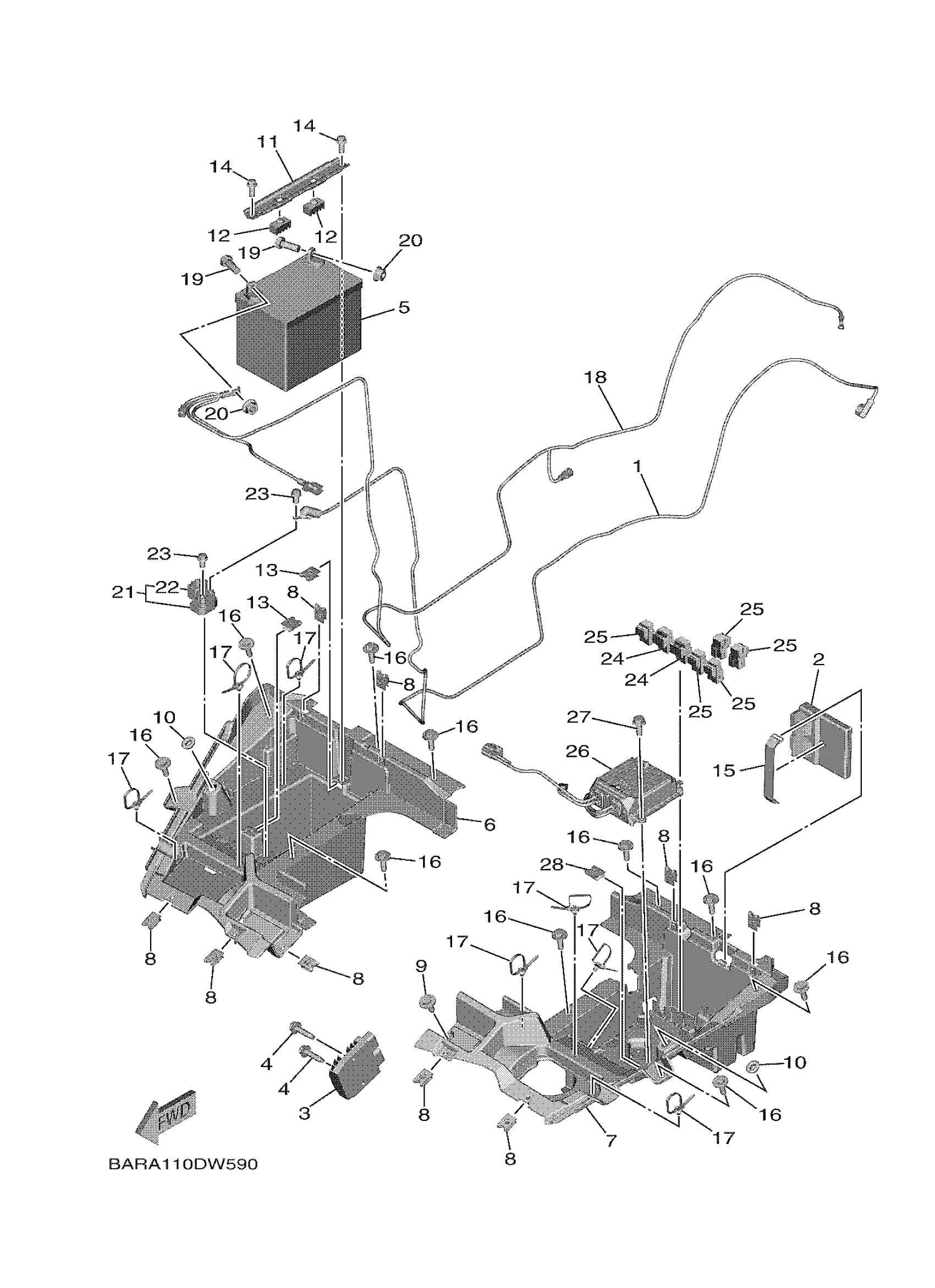

Yamaha YXF85WPAMS (WOLVERINE X4 EPS) BARE 2021 ELECTRICAL 2 Diagram

CORD, STARTER MOTOR

BG4-81815-00-00

Unavailable

ENGINE CONTROL UNI

BAR-8591A-01-00

Unavailable

RECTIFIER & REGULATOR ASSY

B5H-81960-00-00

Unavailable

BOLT, FLANGE

90105-06833-00

$2.28

11-U1LD GS BATTERY

11U-1LD00-00-00

Unavailable

BOX, BATTERY 1

BG4-H212B-00-00

$81.99

PANEL, SWITCH

BG4-H2565-00-00

$92.99

NUT, SPRING

90183-062A1-00

$1.96

BOLT, WITH WASHER

90119-06226-00

$8.49

GROMMET(4DN)

90480-01558-00

$4.19

BRACKET, BATTERY

2HC-H2128-00-00

$10.49

PAD, SEAT

3C3-24741-00-00

$9.99

NUT, SPRING

90183-062A1-00

$1.96

BOLT, FLANGE

95022-06014-00

$3.14

BAND, BATTERY

5JJ-82131-00-00

$13.49

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

CLAMP

1NS-F1338-00-00

Unavailable

WIRE, MINUS LEAD

BG4-82116-00-00

Unavailable

BOLT(6TD)

97080-08020-00

Unavailable

NUT

90179-08015-00

Unavailable

STARTER RELAY ASSY (RC19-080A)

5B4-81940-00-00

Unavailable

FUSE (10A)

42X-82151-00-00

Unavailable

BOLT, FLANGE

95022-06008-00

Unavailable

RELAY ASSY

5DM-81950-01-00

Unavailable

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

POWER STRG. CONT. UNIT ASSY

BAR-859A0-00-00

Unavailable

BOLT, FLANGE DEEP RECESS

95D32-06016-00

Unavailable

NUT, SPRING

90183-062A1-00

$1.96
