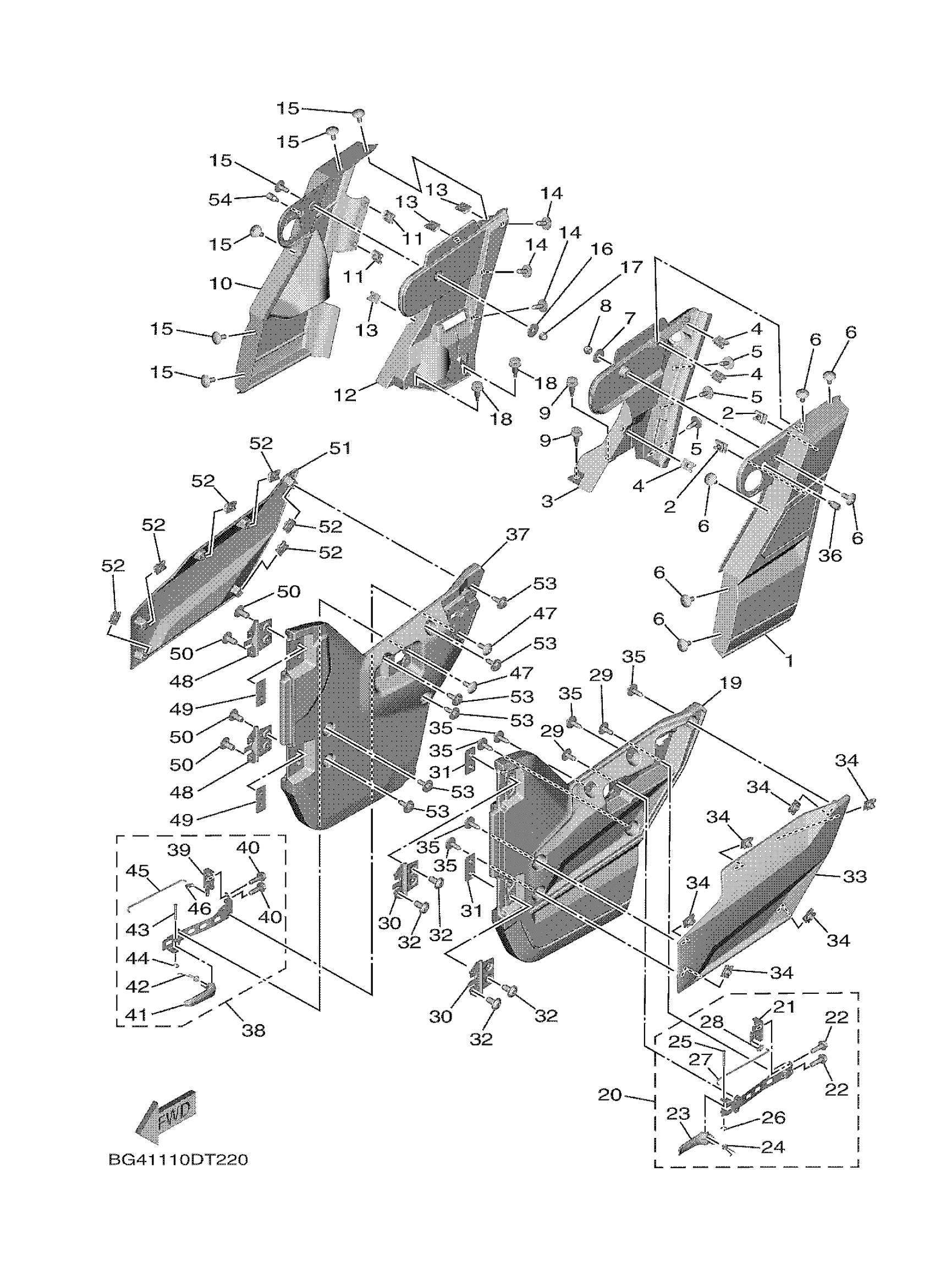

Yamaha YXF85WPALW (WOLVERINE X4) BAR5 2020 SIDE COVER Diagram
#
1
COVER, SIDE 2
BG4-F1721-00-00
$93.99
2
NUT, SPRING
90183-060A6-00
$5.49
3
PLATE, UNDER 1
BG4-F84A3-01-00
Unavailable
4
NUT, SPRING
90183-060A6-00
$5.49
5
BOLT, WITH WASHER
90119-06226-00
$8.49
6
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
7
WASHER, PLATE
90201-06036-00
$8.49
8
NUT (J17)
95380-06800-00
$8.49
9
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
10
COVER, SIDE 3
BG4-F1731-00-00
$94.99
11
NUT, SPRING
90183-060A6-00
$5.49
12
PLATE, UNDER 2
BG4-F84A4-00-00
Unavailable
13
NUT, SPRING
90183-060A6-00
$5.49
14
BOLT, WITH WASHER
90119-06226-00
$8.49
15
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
16
WASHER, PLATE
90201-06036-00
$8.49
17
NUT (J17)
95380-06800-00
$8.49
18
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
19
PNL., DOOR FR. LH
BG4-K8557-00-00
Unavailable
20
BODY, LATCH 1
2HC-K7171-00-00
Unavailable
21
LOCK ASSY
2HC-F16A0-00-00
Unavailable
22
BOLT, FLANGE
95817-06020-00
Unavailable
23
LEVER, LATCH 1
2HC-F17N1-00-00
Unavailable
24
SPRING
2HC-F1742-00-00
Unavailable
25
. PIN
90249-05801-00
Unavailable
26
CIRCLIP (EU0)
99080-04600-00
Unavailable
27
. ROD 1
2HC-F7247-00-00
Unavailable
28
. CLIP, CABLE
2HC-F2805-00-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
30
HINGE ASSY
BG4-F4772-00-00
Unavailable
31
NUT,PLATE
BG4-F1736-00-00
Unavailable
32
SCREW
90149-08805-00
Unavailable
33
TRIM,SIDE PAN
BG4-K817H-31-00
Unavailable
34
NUT, SPRING
90183-060A6-00
$5.49
35
BOLT, WITH WASHER
90119-06226-00
$8.49
36
PAD
2MB-F8378-00-00
Unavailable
37
PNL., DOOR FR. RH
BG4-K8558-00-00
Unavailable
38
BODY, LATCH 2
2HC-K7172-00-00
Unavailable
39
LOCK ASSY 2
2HC-F16B0-00-00
Unavailable
40
BOLT, FLANGE
95817-06020-00
Unavailable
41
LEVER, LATCH 1
2HC-F17N1-00-00
Unavailable
42
SPRING
2HC-F1742-00-00
Unavailable
43
. PIN
90249-05801-00
Unavailable
44
CIRCLIP (EU0)
99080-04600-00
Unavailable
45
. ROD 2
2HC-F7248-00-00
Unavailable
46
. CLIP, CABLE
2HC-F2805-00-00
Unavailable
47
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
48
HINGE ASSY
BG4-F4772-00-00
Unavailable
49
NUT,PLATE
BG4-F1736-00-00
Unavailable
50
SCREW
90149-08805-00
Unavailable
51
TRIM,SIDEPAN
BG4-K817J-31-00
Unavailable
52
NUT, SPRING
90183-060A6-00
$5.49
53
BOLT, WITH WASHER
90119-06226-00
$8.49
54
PAD
2MB-F8378-00-00
Unavailable
