Description

Price

1

FOOTREST,REAR 1

BG4-F7431-02-00

$69.99

2

INSU., 1

BG4-H336L-01-00

$235.99

3

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

4

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

5

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

6

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

7

NUT, SPRING

90183-060A6-00

$5.49

8

NUT, SPRING

90183-060A6-00

$5.49

9

BOLT, WITH WASHER

90119-06226-00

$8.49

10

FOOTREST,REAR 2

BG4-F7441-01-00

Unavailable

11

INSU., 2

BG4-H336M-01-00

$33.99

12

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

13

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

14

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

15

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

16

NUT, SPRING

90183-060A6-00

$5.49

17

BOLT, WITH WASHER

90119-06226-00

$8.49

18

NUT, SPRING

90183-060A6-00

$5.49

19

BOLT, WITH WASHER

90119-06226-00

$8.49

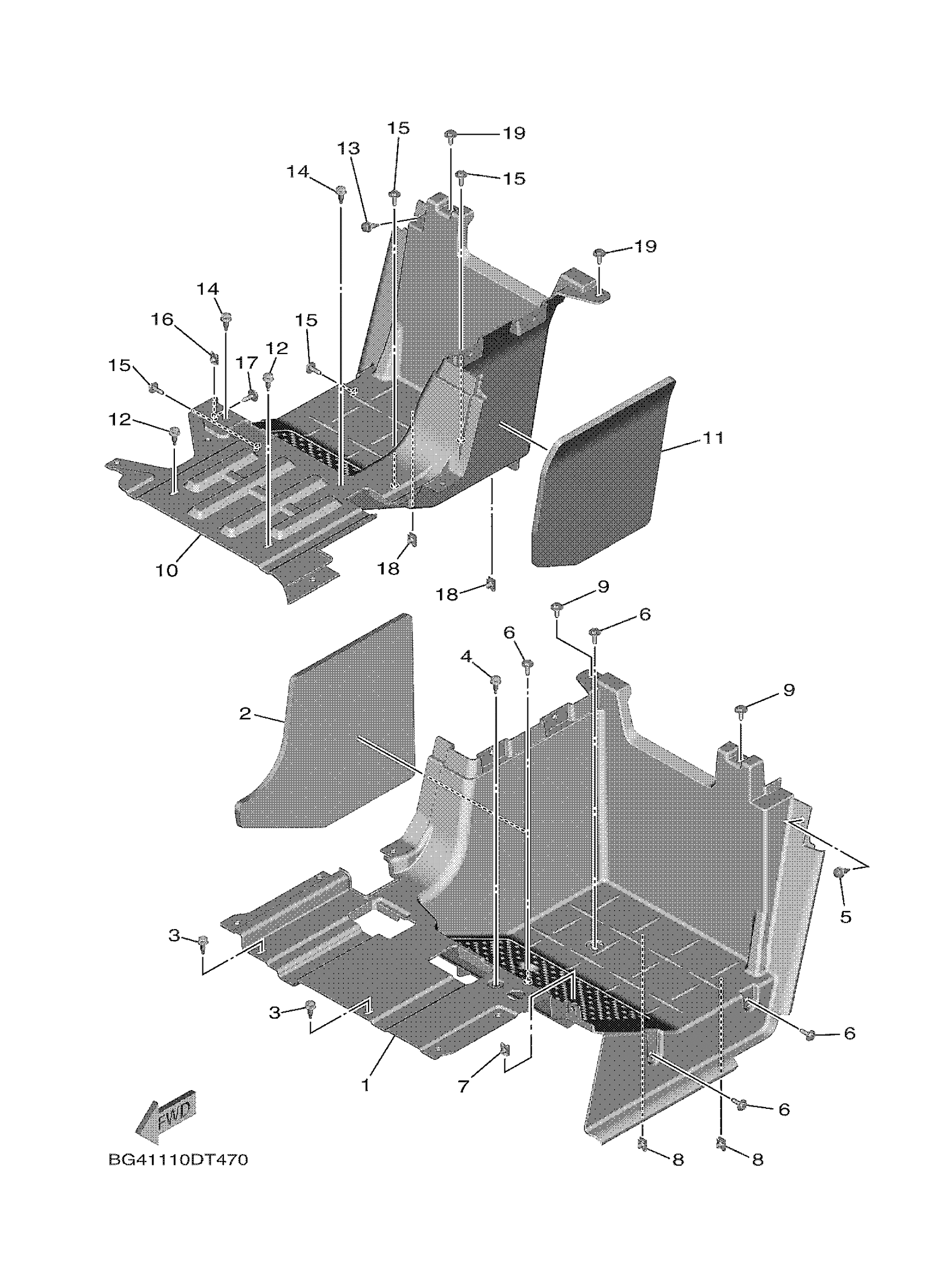

Yamaha YXF85WPAKR (WOLVERINE X4) BG4F 2019 STAND FOOTREST 2 Diagram

FOOTREST,REAR 1

INSU., 1

RIVET,SPEC'L SHAPE

RIVET,SPEC'L SHAPE

RIVET,SPEC'L SHAPE

BOLT, SPECIAL 1

NUT, SPRING

NUT, SPRING

BOLT, WITH WASHER

FOOTREST,REAR 2

INSU., 2

RIVET,SPEC'L SHAPE

RIVET,SPEC'L SHAPE

RIVET,SPEC'L SHAPE

BOLT, SPECIAL 1

NUT, SPRING

BOLT, WITH WASHER

NUT, SPRING

BOLT, WITH WASHER
