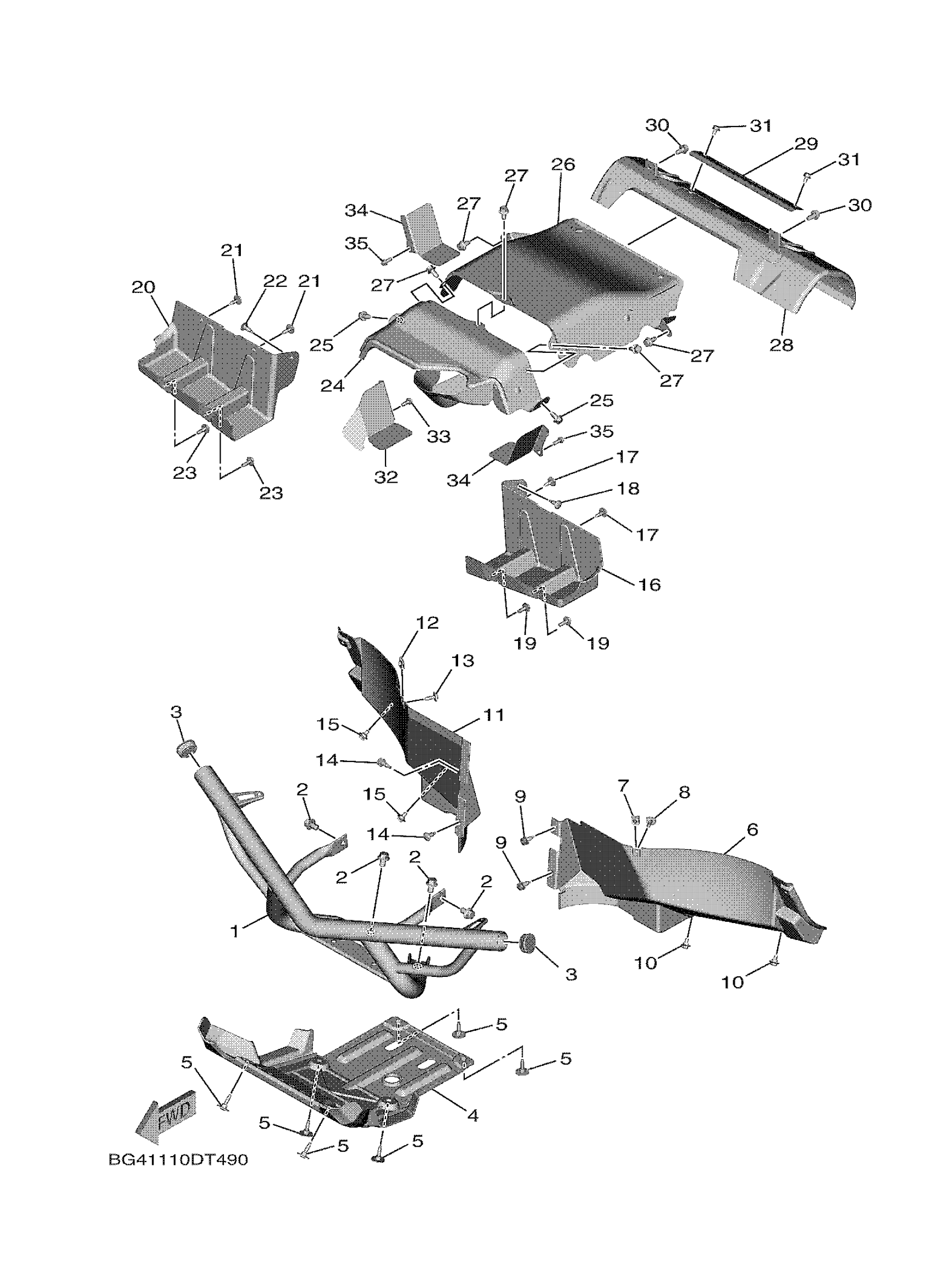

Yamaha YXF85WPAKR (WOLVERINE X4) BG4F 2019 GUARD Diagram
#
1
BAR, CARRY FRONT
BG4-F845N-01-00
Unavailable
2
BOLT, FLANGE
95812-10016-00
$9.49
3
PLUG (FRONT BUMPER)
5UG-F2417-00-00
$6.99
4
COVER, UNDER
2MB-F8385-00-00
$31.99
5
BOLT
90109-068A5-00
$7.49
6
GUARD 1
BG4-F2361-01-00
$18.99
7
NUT, SPRING
90183-060A6-00
$5.49
8
BOLT, WITH WASHER
90119-06226-00
$8.49
9
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
10
BOLT
90109-06202-00
$7.49
11
GUARD 2
BG4-F2362-01-00
$26.99
12
NUT, SPRING
90183-060A6-00
$5.49
13
BOLT, WITH WASHER
90119-06226-00
$8.49
14
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
15
BOLT
90109-06202-00
$7.49
16
MUD GUARD 1
BG4-F2327-00-00
Unavailable
17
BOLT, WITH WASHER
90119-06226-00
$8.49
18
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
19
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
20
MUD GUARD 2
BG4-F2328-00-00
Unavailable
21
BOLT, WITH WASHER
90119-06226-00
$8.49
22
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
23
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
24
PROTECTOR, HEAT
BG4-E2682-01-00
Unavailable
25
BOLT, FLANGE
90105-08867-00
Unavailable
26
PROTECTOR, HEAT
BG4-E2683-01-00
Unavailable
27
BOLT, FLANGE
90105-08867-00
Unavailable
28
INSULATOR, MOUNTING
BG4-F2891-00-00
Unavailable
29
INSULATOR, MOUNTIN
BG4-F2894-00-00
Unavailable
30
BOLT, FLANGE
90105-08867-00
Unavailable
31
BOLT, FLANGE
95812-06010-00
Unavailable
32
PROTECTOR 2
BG4-F2826-00-00
Unavailable
33
BOLT, FLANGE (SELF TAPPING)
90105-06832-00
Unavailable
34
PROTECTOR 1
BG4-F2825-00-00
Unavailable
35
BOLT, FLANGE (SELF TAPPING)
90105-06832-00
Unavailable
